12 - User's Manual
Internet. Please refer to Network Type on page 51 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN on page 51 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 49 for details.
General Connection
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Ethernet Switch
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5

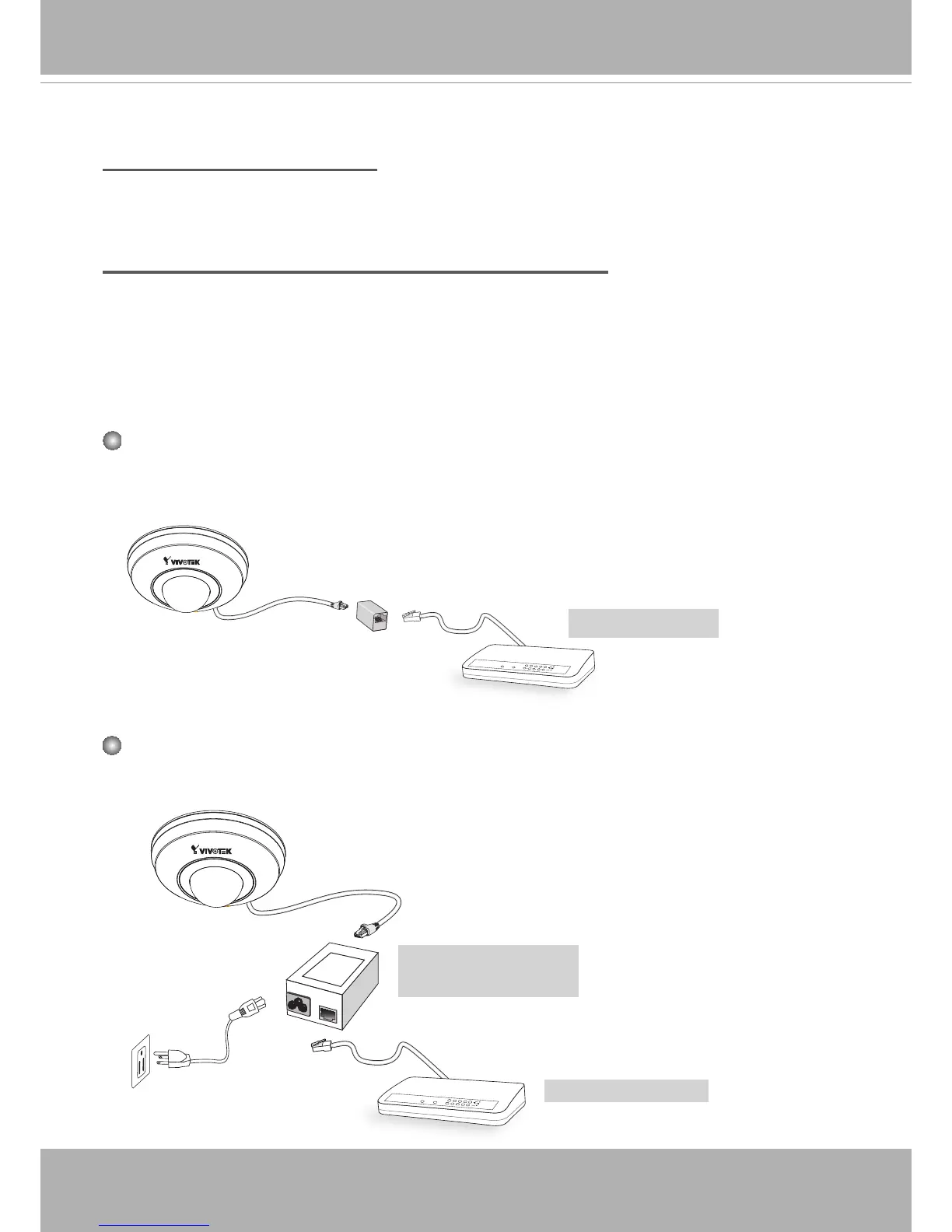

When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE
switch.
PoE Power Injector
(optional)
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the camera to a PoE enabled switch
via Ethernet cable.
Non-PoE Switch
