VIVOTEK
8 - User's Manual
Installation
Hardware Installation
P/N : 62xxxxxxxx
Drill hole
Home Position
Drill hole
Drill hole
Cable
hole

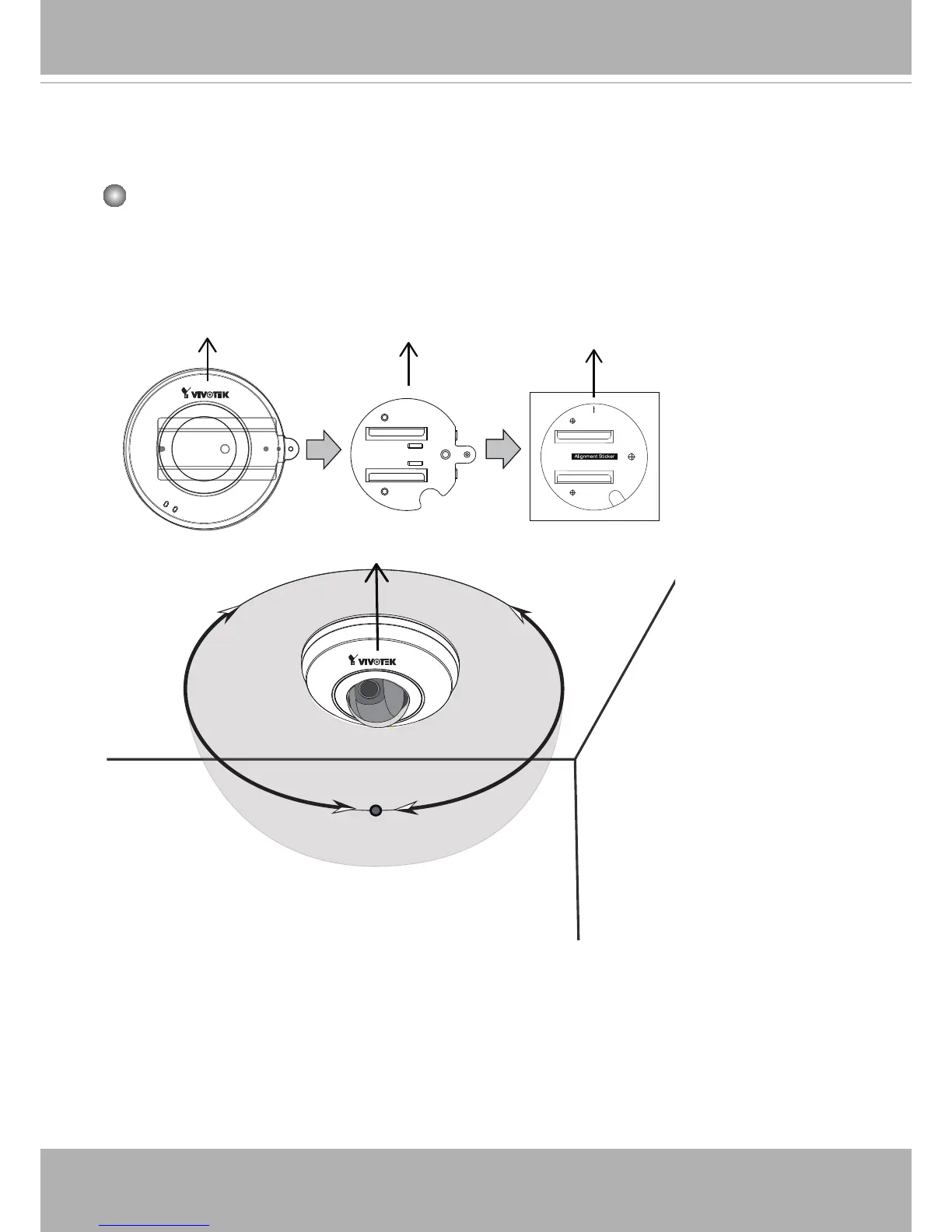

Mounting Plate and Camera Orientation
When installing the camera, orient the default front on the mounting plate (illustrated below)
towards the area of your interest. The camera lens' central position is aligned with the
VIVOTEK logo on the dome cover.
180° Pan
180° Pan
The Default Front
The Default Front
Stop Point
0°
The Default Front
