Vivotek PZ7112 - Technical Specifications

VIVOTEK
124 - User's Manual
Technical Specications
External View
．CE, LVD, FCC, VCCI, C-Tick
．CPU: Bach SoC
．Flash: 8MB
．RAM: 64MB + 32MB
．Embedded OS: Linux 2.6
．PZ7111 (NTSC CCD, PoE)
．PZ7121 (PAL CCD, PoE)
．PZ7112 (NTSC CCD, WLAN)
．PZ7122 (PAL CCD, WLAN)
．10x optical zoom lens, f = 4.2 ~ 42 mm, F1.8 (wide),
F2.9 (tele), auto-iris, auto focus
．1/60 sec. to 1/10,000 sec. (PZ7111/PZ7112)
．1/50 sec. to 1/10,000 sec. (PZ7121/PZ7122)
．4.9° ~ 46° (horizontal)
．3.6° ~ 35° (vertical)
．1/4” CCD sensor in D1 resolution
．1.5 Lux / F1.8 (typical)
．0.05 Lux / F1.8 (low light mode)
Specifications
Networking
Alarm and
Event Management
Security
Users
Dimension
Weight
LED Indicator
Power
Approvals
Operating Environments
System
Models
Lens
．Pan range: 300° (-150° ~ +150°)
．Tilt range: 135° (-45° ~ +90°)
．10x optical zoom, 10x digital zoom
．Auto pan mode
．Auto patrol mode
Pan/Tilt/Zoom
Shutter Time
Image Sensor
Angle of View
Minimum
Illumination
Video
Image Settings
Audio
Viewing System
Requirements
Installation, Management,
and Maintenance
Applications
．10/100 Mbps Ethernet, RJ-45
．Built-in 802.11b/g WLAN (PZ7112/PZ7122)
．Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/
RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS and PPPoE
．Triple-window video for motion detection
．One D/I and one D/O for external sensor and alarm
．Event notification using HTTP, SMTP or FTP
．Local recording of MP4 files
．Multi-level user access with password protection
．IP address filtering
．Wireless: WEP, WPA-PSK, WPA2 (PZ7112/PZ7122)
．HTTPS encrypted data transmission
．Live viewing for up to 10 clients
．
Ø
105 mm x 120 mm
．Net: 391 g (PZ7111/PZ7121)
．Net: 408 g (PZ7112/PZ7122)
．System power and status indicator
．System activity and network link indicator
．12V DC
．Power consumption: Max. 12 W
(PZ7111/7121)
．Power consumption: Max. 13 W
(PZ7112/7122)
．802.3af compliant Power-over-Ethernet
(PZ7111/PZ7121)
．Temperature: 0 ~ 50 °C (32 ~ 122 °F)
．Humidity: 20% ~ 80% RH
．Compression:
GSM-AMR speech encoding, bit rate:
4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate:
16 kbps to 128 kbps
．Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
．Supports two-way audio via SIP protocol
．Supports audio mute
．Compression: MJPEG & MPEG-4
．Streaming:
Simultaneous dual streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
．Supports 3GPP mobile surveillance
．Frame rates:
MPEG-4: Up to 30/25 fps at 704x480/704x576
MJPEG: Up to 30/25 fps at 704x480/704x576
．Interface:
AV output
．Adjustable image size, quality and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, contrast, saturation,
sharpness and white balance
．ATW/AWB, AES/ALC
．BLC (Backlight Compensation)
．OS: Microsoft Windows 2000/XP/Vista
．Browser: Mozilla Firefox, Internet Explorer
6.x or above
．Cell phone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above
．SDK available for application development
and system integration
Warranty
．24 months
．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade

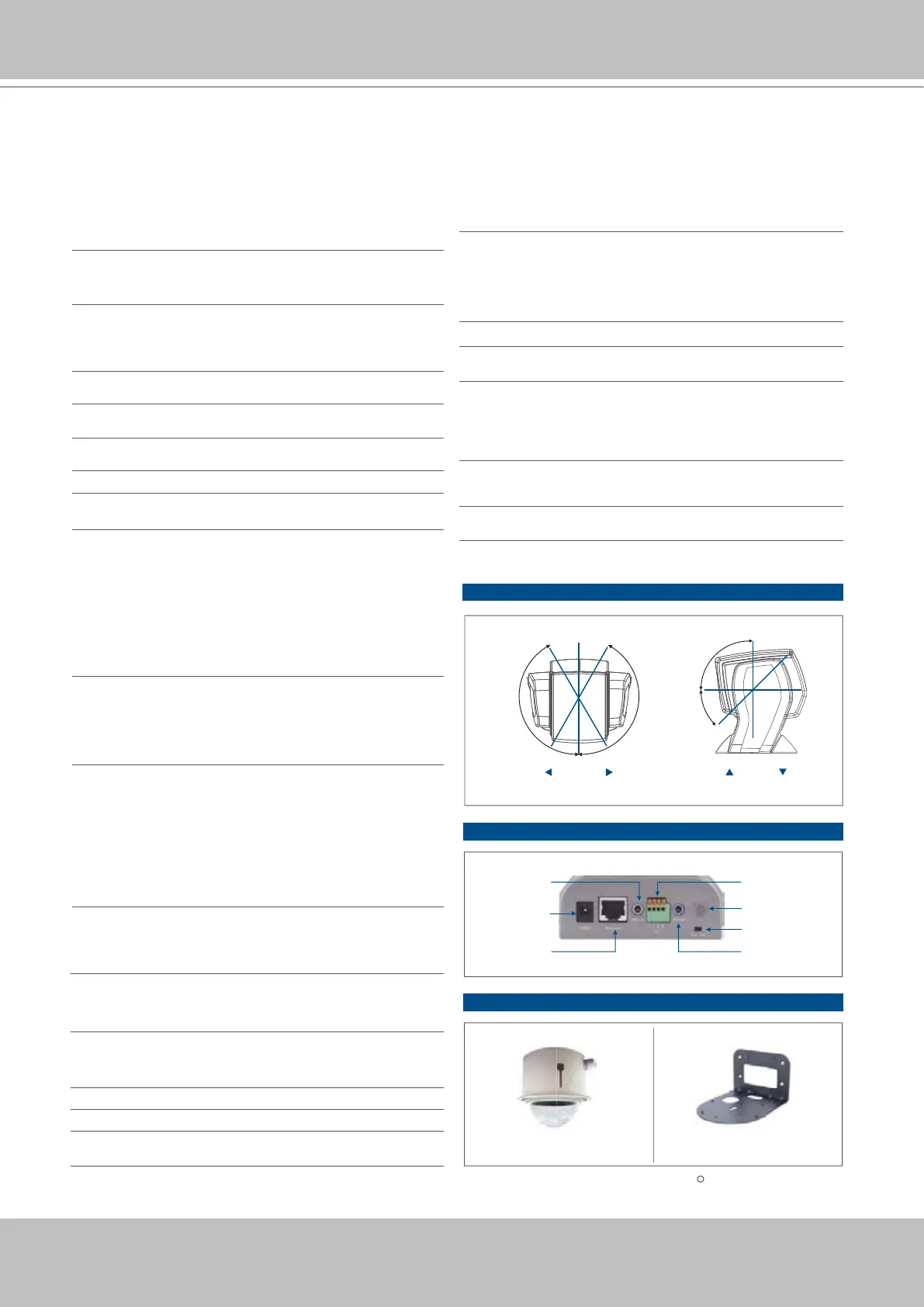

Pan/Tilt Range
All specications are subject to change without notice. Copyright 2009 VIVOTEK INC. All rights reserved.
c
P/N: 011001601 Ver 2�1
Pan:300
°
。
150 150
。
Tilt:135
°
90
。
45
。
Power Cord
Socket
Ethernet 10/100
RJ45 Socket
MIC In
General I/O
Terminal Block
AV Out
External/Internal
MIC Switch
Antenna
(PZ7112/7122 only)
Mounting KitEnclosure
Accessories
