Installation
Hardware Installation
1
2
3
5
6
7
8
9
10
Silica gel
Silica gel
4

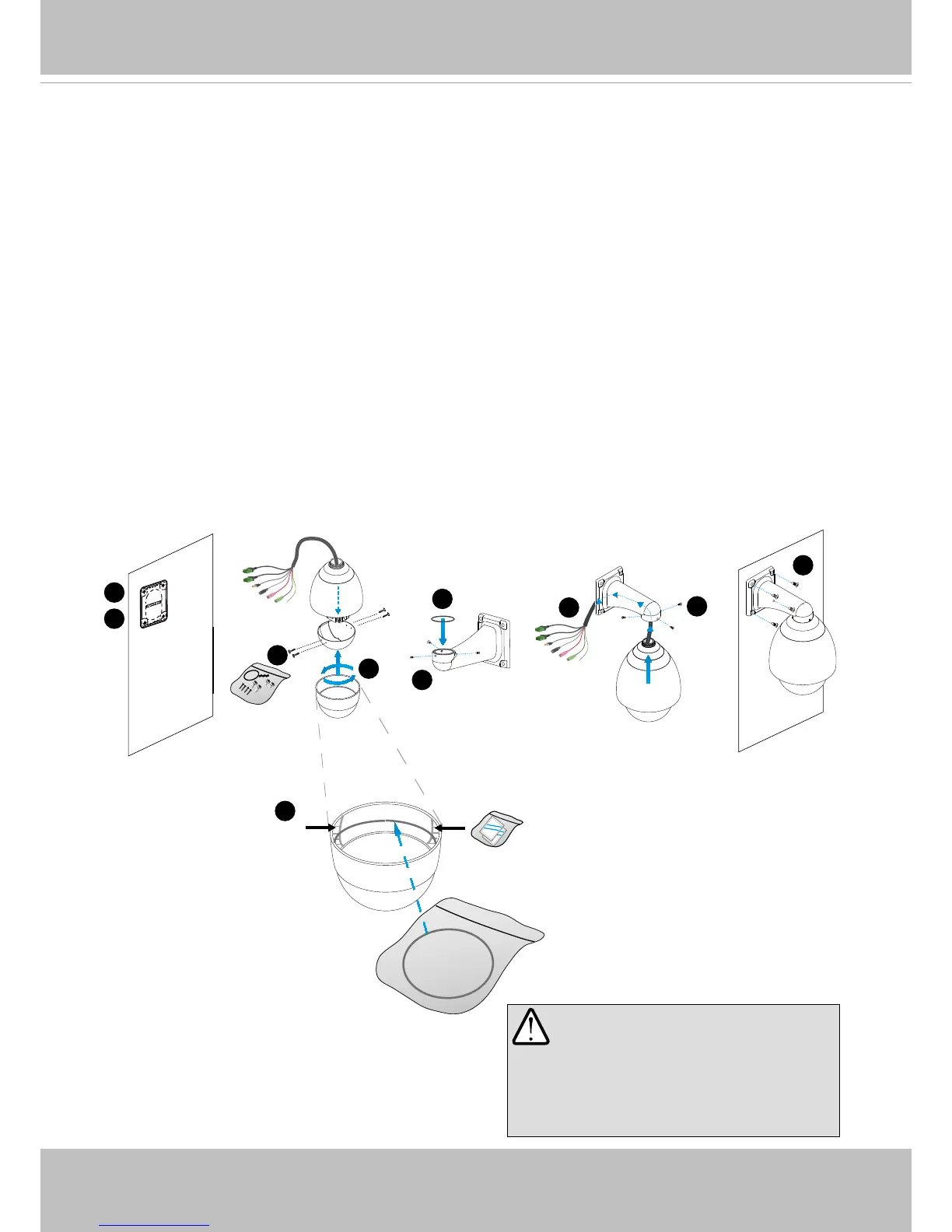

Mounting the Network Camera
1. Attach the alignment sticker to the wall.
2. Drill four pilot holes into the wall.
3. Attach the smoked dome cover to the Network Camera using the supplied four black screws.
4. Stick the supplied two pieces of silica gel symmetrically to the inner side of the dome cover.
Then place the metal ring into the dome cover to x the silica gel.
5. Fix the dome cover to the Network Camera and secure it by rotating it clockwise.
6. Loosen the three screws on the front opening of the wall mount bracket.
7. Place the O-ring on the front opening of the wall mount bracket.
8. Feed the cables through the front opening of the wall mount bracket and pull them from wall
outlet.
9. Attach the Network Camera to the wall mount bracket by tightening the three screws you
previously removed.
10. Fasten the wall mount bracket to the pre-drilled holes on the wall.
IMPORTANT!
The supplied L-type hex wrenches
are exclusively designed to match the
camera''s screws. Keep them for future
use. Do not discard the wrenches.
To Next Page
