Vixel 9000 Series Installation & Configuration Guide CHAPTER 5 Using Stealth-3 Loop Switching
28
Mixing Switch-Attached and Loop Devices
Stealth-3 Loop Switching Mode allows you to mix private loop devices with
“switch-attached” (N_Port) single-AL_PA devices (such as RAIDs) that perform
fabric login. This flexible topology improves the performance of host-to-storage
interconnection by providing dedicated bandwidth and eliminating loop arbitration
delays. Hubs and other 1-Gigabit speed devices can be connected to switch ports
that are running at 1-Gigabit speed.

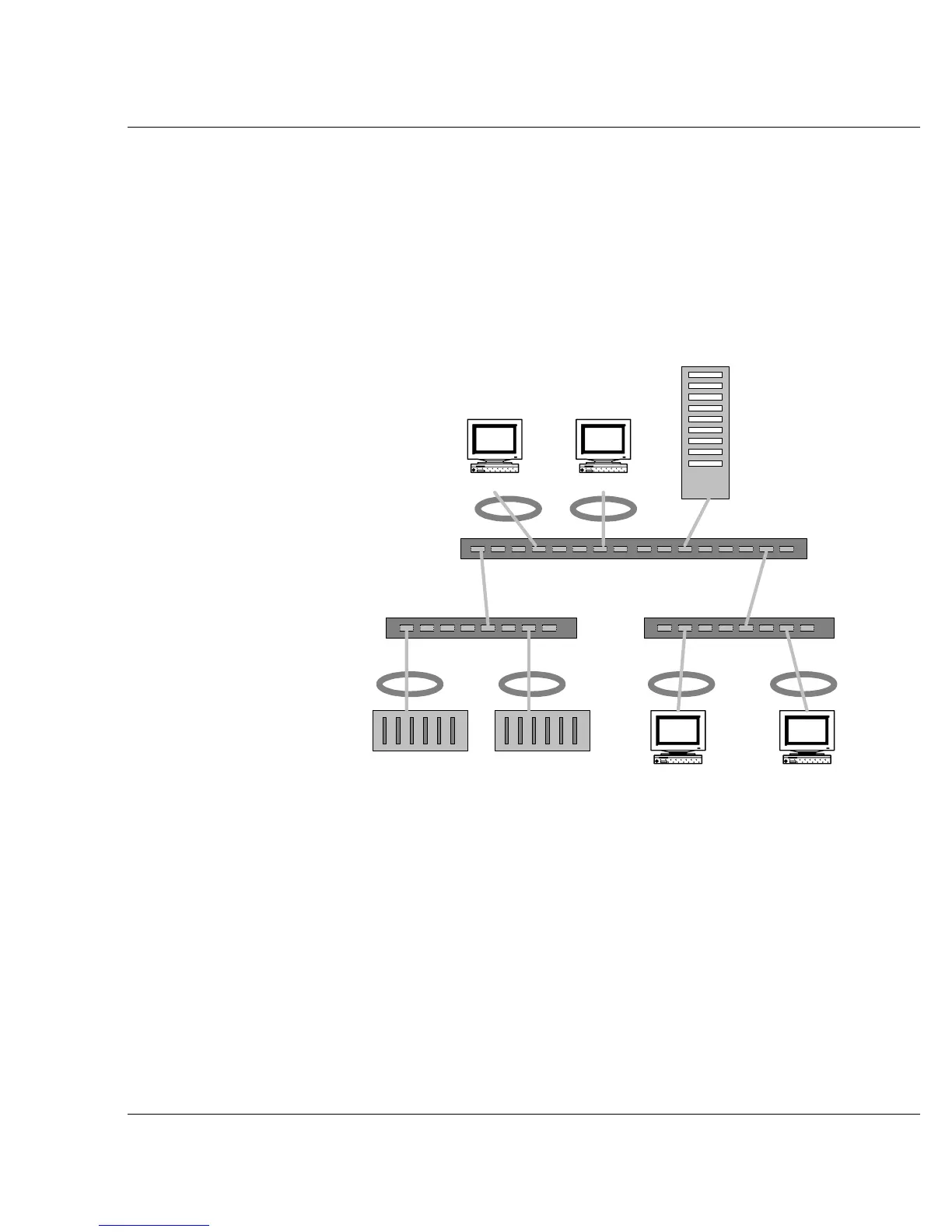

Figure 5-1. A topology containing a switch-attached RAID and loop devices (hubs
are connected to switch ports that are running at 1-Gigabit speed)
HOST HOST
HOST HOST
JBOD JBOD
Vixel 9000 Series Switch
Vixel Hub
RAID
Vixel Hub
