STRUCTURE - START-UP STRUCTURE - START-UP

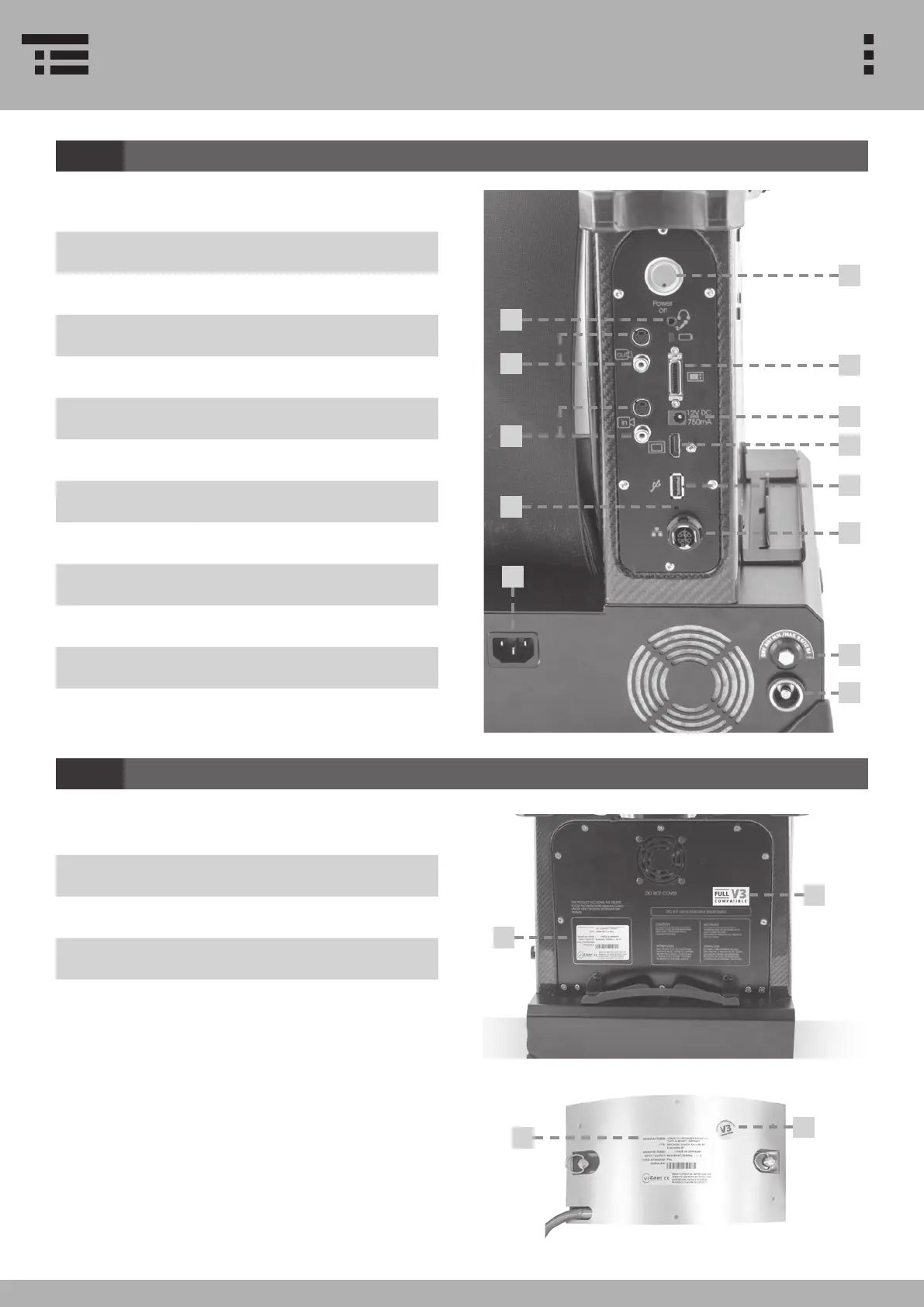

3.2.2 CONNECTIONS BASE UNIT
1 Mains switch
2 Audio-IN/OUT
3 TV-Out*
4 Connector VUSCREEN-UNIT
5 12V DC out
6 Video / S-Video in
7 HDMI out
8 USB 3.0 interface
9 Reset button
10 Service connector
11 Mains connection
12 Connector air-hose-adapter
13 Ground connector
2
3
6
9
11
10
12
13
8
7
5
4
1
3.2.3 LABELS AND INFORMATION
1 Label base unit
2 Label V3 Compatible / Full V3 Compatible
3 Label probe
4 Label V3 VUMAN probe
Detailed information about your system is listed on
the labels of base unit and probe.
1
2
3
4
* only available for some versions of VUMAN
®
E3+
