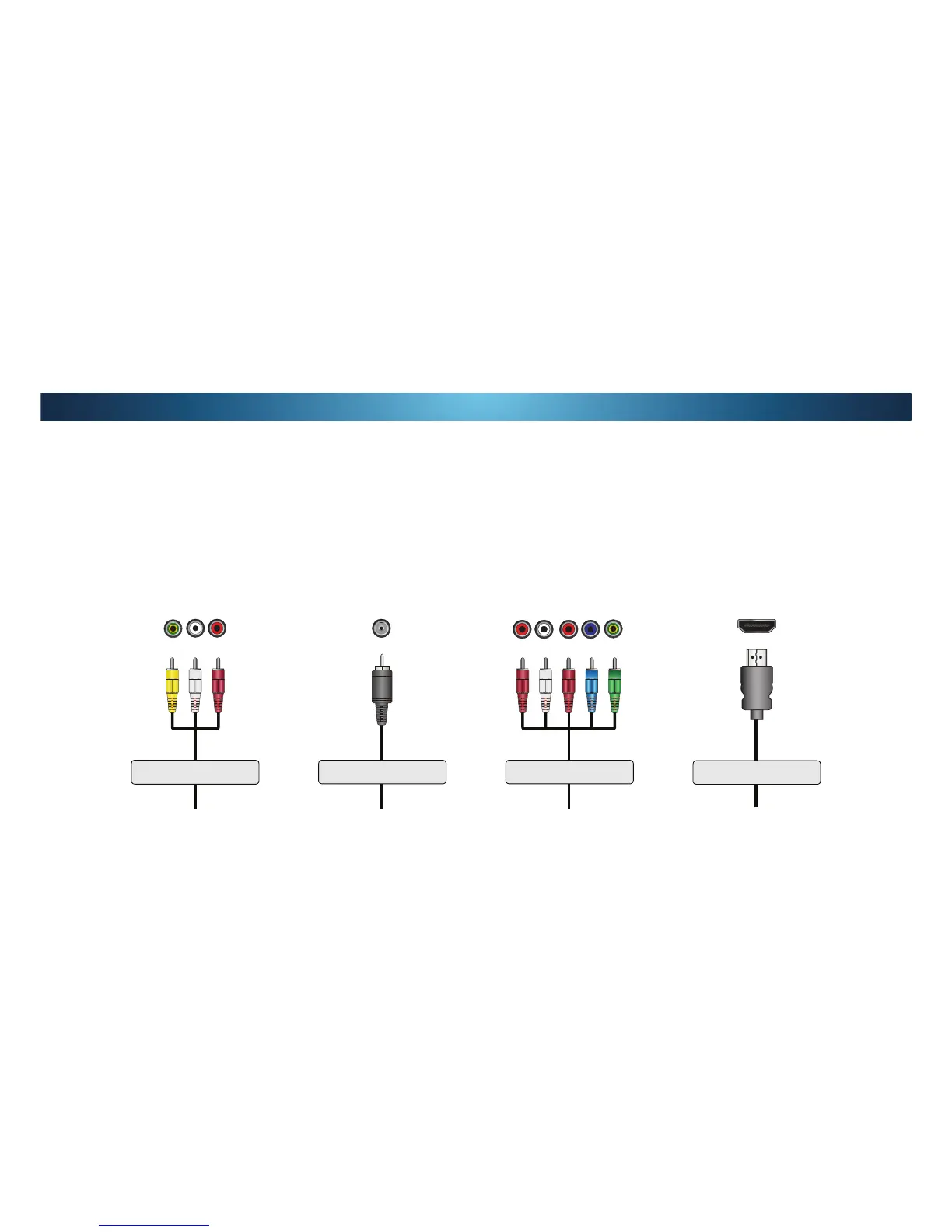

CONNECTING A DEVICE - AUDIO & VIDEO CABLE TYPES
AV CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your TV. Video signals are sent over the yellow
connector while audio is sent over the red and
white connectors.
• 9LGHR5HVROXWLRQVXSWRL
• Analog Connection
• $XGLRDQG9LGHR6LJQDOV
GOOD
Y L R
COAXIAL CABLE
&RD[LDO FDEOHV DUH WKH WUDGLWLRQDO ZD\ RI
connecting antennas and cable television
VLJQDOV WR \RXU 79 &RD[LDO FDEOHVFDUU\ ERWK
audio and video signals through a single
connector.
• +'9LGHR5HVROXWLRQVXSWRL
• Analog Connection
• $XGLRDQG9LGHR6LJQDOV
BETTER
&RD[LDO
COMPONENT CABLE
Component cables are designed to carry high
GHȴQLWLRQ YLGHR VLJQDOV DORQJ ZLWK DGGLWLRQDO
audio connections. Colors are delivered with color
LQIRUPDWLRQ VSOLW XS WKUHH GL΍HUHQW ZD\V RYHU
three connectors for video (separated into Red,
Blue and Green signals) and the left and right
audio connectors (Red and White).
• +'9LGHR5HVROXWLRQVXSWRS
• Analog Connection
• $XGLRDQG9LGHR6LJQDOV
HDMI CABLE
HDMI is the intelligent, all-digital interface that
delivers both dazzling quality and unmatched ease
of use. HDMI technology transmits crystal-clear
digital video along with multi-channel surround
audio. HDMI-connected devices have the ability
to automatically adjust themselves for optimal
viewing.
• HD Video Resolutions up to UHD*
• HD Audio
• Digital Connection
• $XGLRDQG9LGHR6LJQDOV
BETTER
R L Pr/Cr Pb/Cb Y
HDMI
BEST
 +LJK6SHHG+'0ΖFDEOHUHTXLUHGIRU8+'UHVROXWLRQV


Vizio M55-C2 Specifications

General

Screen Type	led
Wall Mount	300mm x 300mm
Features	32 active led zones, clear action 360, v6 six-core processor
Tuner	digital
Screen Size	55 inches
HDR	no
Built-In Speakers	yes
Surround Sound	dts trusurround
Speakers Output	30 watts
Number Of Speakers	2
USB Ports	1
RF Antenna	yes
Network	built-in wi-fi
Headphones Output	no
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	vizio internet apps (v.i.a.)
Remote Control	standard
3D	no
Power Consumption	244.2 kilowatt hours
Depth with Stand	10.01 inches
Height with Stand	30.37 inches
Width with Stand	48.8 inches
Net Weight with Stand	40.24 pounds
Depth without Stand	2.51 inches
Height without Stand	28.03 inches
Net Weight without Stand	39.24 pounds
