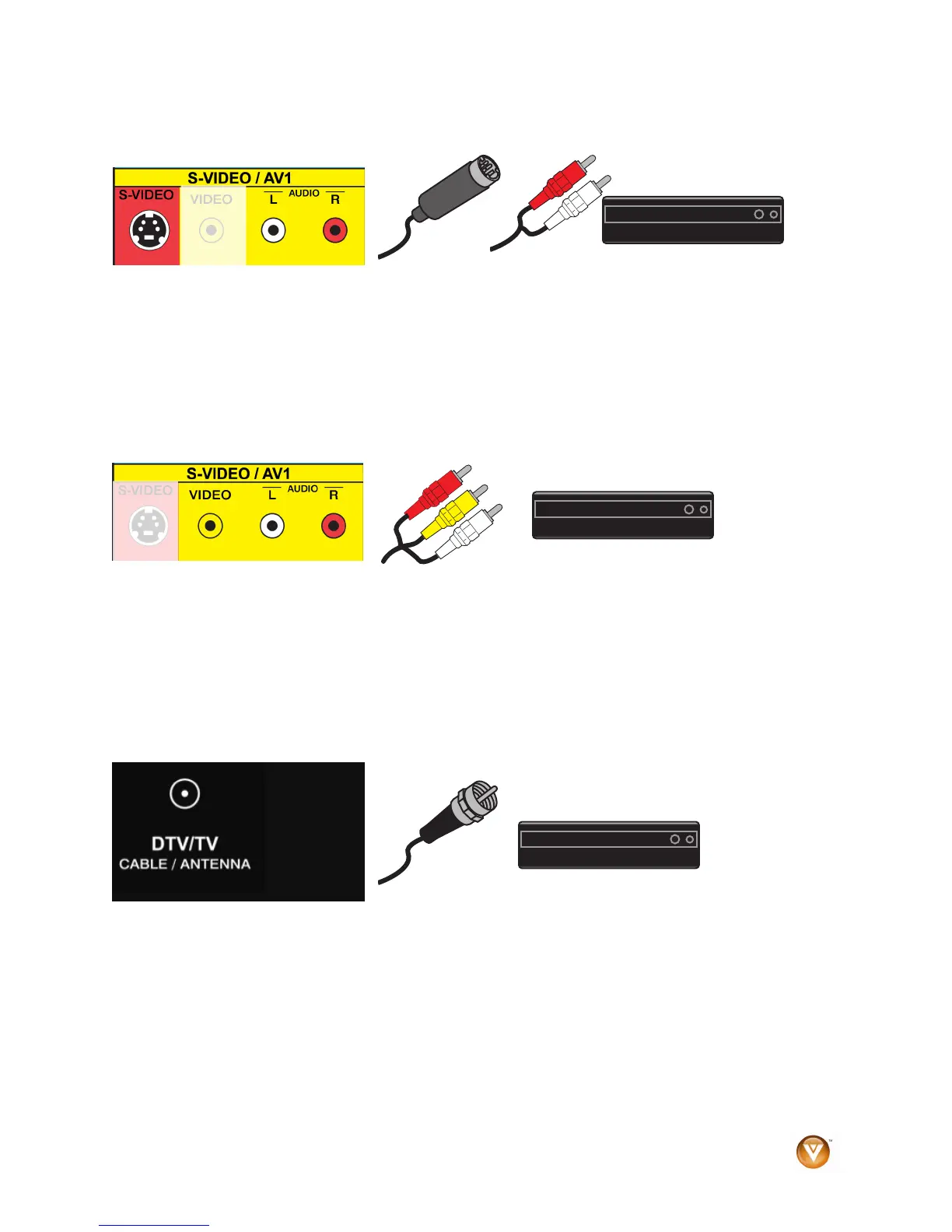

Using S-Video (Better)
1. Turn off your HDTV and set-top box.
2. Connect the S-VIDEO cable from your set-top box to the S-VIDEO jack on the back of your HDTV.
3. Connect the audio cables (white and red) on your set-top box to the corresponding L and R
AUDIO jacks on the back of your HDTV.
4. Turn on your HDTV and set-top box.
5. Press AV on the remote control to view the content.
Using Composite Video (Good)
1. Turn off your HDTV and set-top box.
2. Connect the video cable (yellow) from your set-top box to the AV jack (yellow) on the back of your
HDTV.
3. Connect the audio cables (white and red) on your set-top box to the corresponding L and R
AUDIO jacks on the back of your HDTV.
4. Turn on your HDTV and set-top box.
5. Press AV on the remote control to view the content.
Using Coaxial (Antenna) (Good)
1. Turn off the power to the HDTV.
2. Connect the coaxial (RF) connector from your antenna or digital cable to the DTV/TV
CABLE/ANTENNA connector at the rear of the HDTV.
3. Turn on the power to the HDTV.
4. Select TV using the INPUT button on the remote control, or directly by pressing the TV button
on the remote control.
