VIZIO VL420M/VL470M User Manual
Version 3/25/2009 25
www.VIZIO.com
CD DVD
VCR

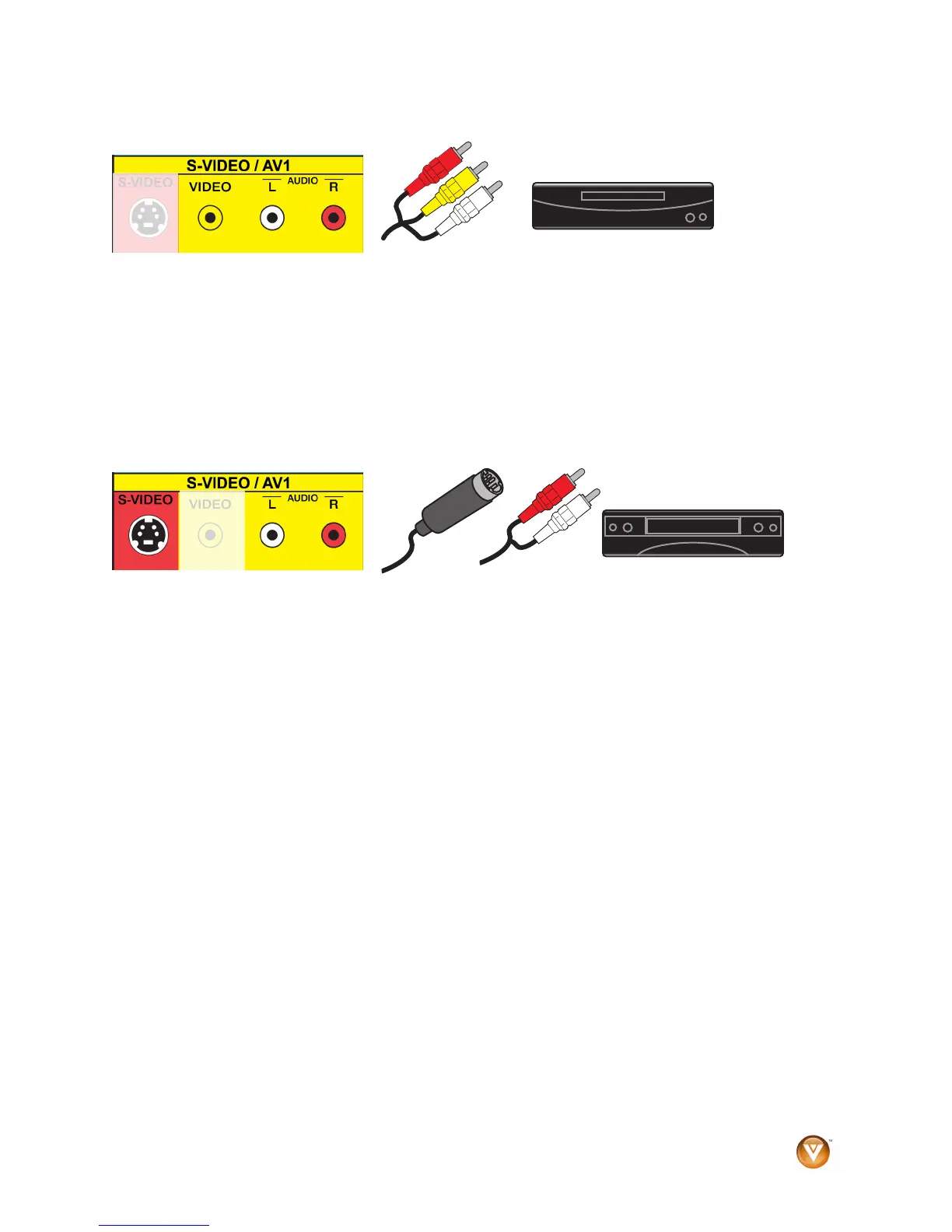

Using Composite (AV) Video (Good)
1. Turn off the power to the HDTV and DVD player.
2. Connect the Video cable (yellow) from your DVD player to the S-VIDEO/AV1 jack on the
back of your HDTV.
3. Connect the audio cables (white and red) on your DVD player to the S-VIDEO/AV1 L and R
AUDIO jacks on the back of your HDTV.
4. Turn on the power to the HDTV and DVD Player.
5. Select AV1 using the INPUT button on the remote control, or directly by pressing the AV
button on the remote control.
Connecting Your VCR or Video Camera
1. Turn off the power to the HDTV and VCR or Video Camera.
2. Connect the S-VIDEO cable from your VCR or video camera to the S-VIDEO jack on the
back of your HDTV.
3. Connect the audio cables on your set-top box to the corresponding L and R AUDIO jacks on
the back of your HDTV.
4. Turn on the power to the HDTV and VCR or Video Camera.
5. Select AV1 using the INPUT button on the remote control, or directly by pressing the AV
button on the remote control.
Note: Refer to your VCR or Video Camera user manual for more information about the video output
requirements of the product.
Note: You can also connect the VCR or Video Camera to the AV2 connection on the side of the HDTV.
