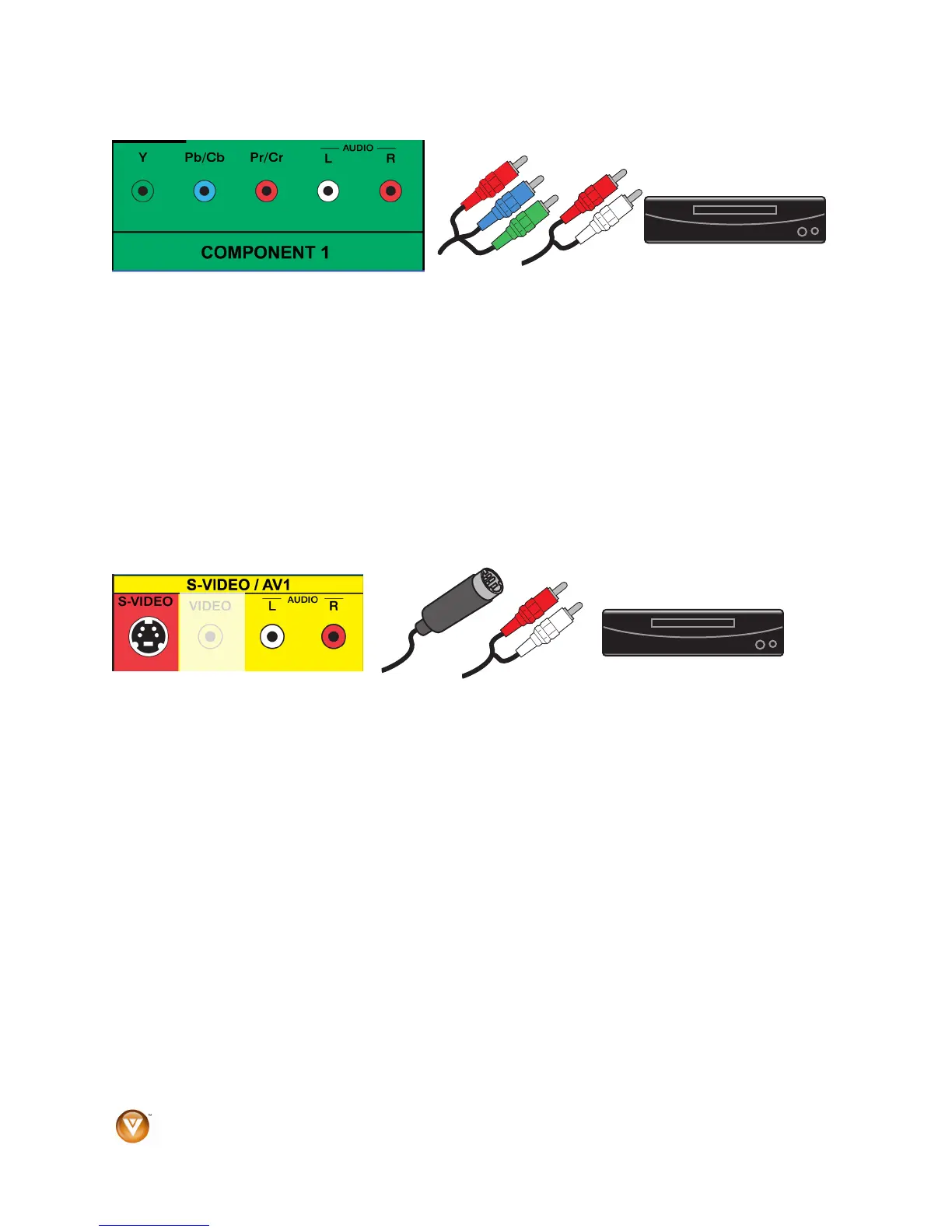

Using Component Video (Better)
1. Turn off the power to the HDTV and DVD player.
2. Connect the component cable (green, blue, and red) from your DVD player to an available
set of COMPONENT 1 jacks on the back or side.
3. Connect the audio cables (white and red) from your DVD player to the COMPONENT L and
R AUDIO jacks on the back.
4. Turn on the power to the HDTV and DVD player.
5. Select Component 1 using the INPUT button on the remote control, or directly by pressing
the COMP button on the remote control.
Note: You can also connect the DVD player to the Component 2 connections on the side of the HDTV.
Using S-Video (Better)
1. Turn off the power to the HDTV and DVD player.
2. Connect the S-VIDEO cable from your DVD player to the S-VIDEO jack on the back of your
HDTV.
3. Using an audio cable, connect the cable to the audio output connectors associated with the
S-Video output on your DVD player and connect the other end to the audio connectors
associated with the AV1 input at the rear of the HDTV.
4. Turn on the power to the HDTV and DVD player.
5. Select AV1 using the INPUT button on the remote control, or directly by pressing the AV
button on the remote control.
