22

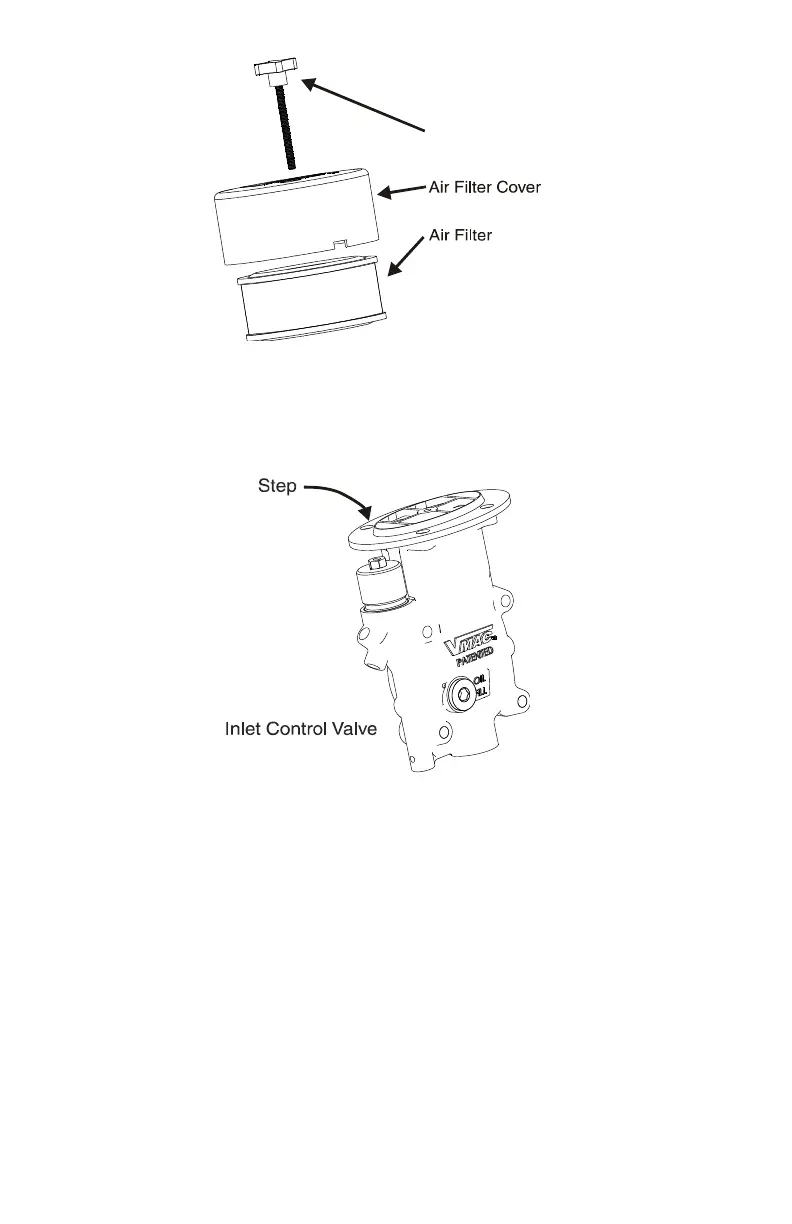

Filter Retainer
2.10.5 Remove the masking tape or cloth from the compressor air
intake. The new VMAC filter is oval make sure that the filter
fits over the machined step on the intake housing.
2.10.6 Place the filter cover over the air filter and secure it with the
cover nut.
