4.0 Illustrated Parts Lists

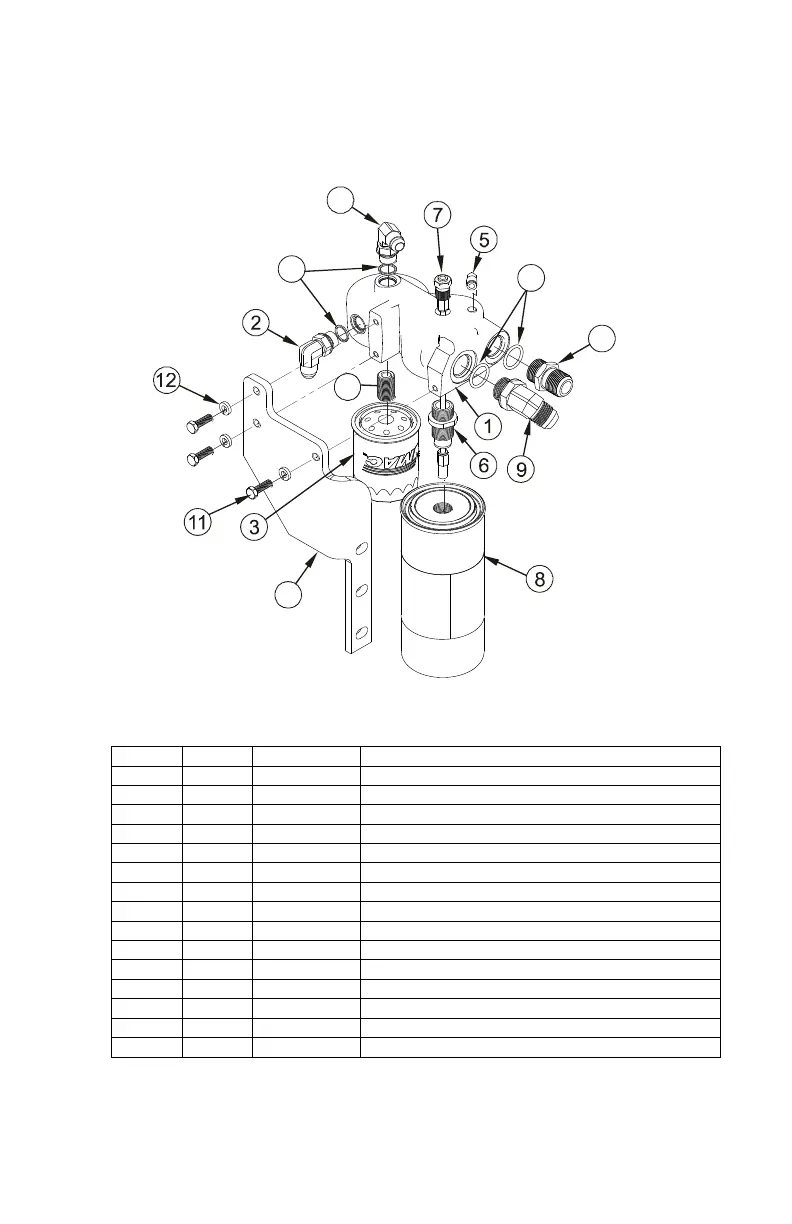

4.1 Manifold and Filters
4
14
2
15
13
10
9300070 - Assembly, Manifold
Item
Qty
Part #
Description
1
1
9300069
Manifold Machining
2
2
4900002
Elbow, Steel JIC/O-ring, 1/2 3/4-16
3
1
9200039
Oil Filter, VR 3.250 Short
4
1
4900035
Nipple, Steel Str. Thrd, 3/4 - 16
5
1
5000020
Elbow, Brass NPT-Poly, 1/8-1/4
6
1
9300007
Adapter
7
1
9300025
Assembly, Scavenge Tube
8
1
3600079
Oil Separator, Spin-On
9
1
4900151
Connector, Steel, 45, 3/4-#12 ORB Male
10
1
1200552
Bracket, Manifold
11
3
1510003
Bolt, HHCS NC G8 PL, 5/16 X 1
12
3
1570058
Washer, Split Lock, 5/16
13
1
9300089
Fitting Modified
14
2
5830132
O-Ring, Viton, #8 ORB
15
2
5830133
O-Ring, Viton, #12
