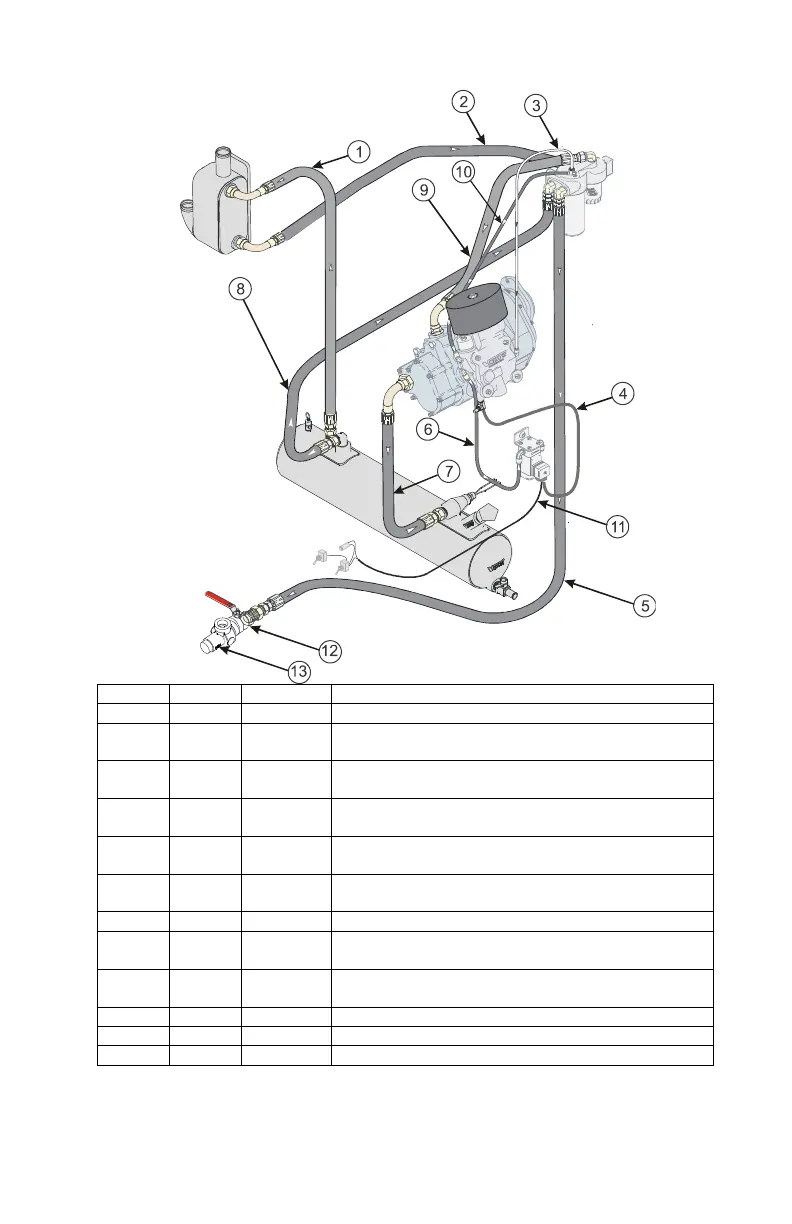

4.5 Hoses, Tubing and Harness
1
1
1752053
Hose assembly - oil/air separator tank to oil cooler
2
1
1752042
Hose assembly - oil cooler to manifold
3
35”
1700570
Tube 1/4 outside diameter - scavenge line (white)
- manifold to compressor
4
16”
1700334
Tube 1/4 outside diameter - compressor ‘ON/OFF’
signal (red) - solenoid valve to inlet valve
5
1
1772144
Hose assembly - discharge - manifold to supply
valve
6
24.5”
1700055
Tube 1/4 outside diameter - signal (black) -
compressor to solenoid valve
7
1
1772022
Hose assembly - supply - compressor to oil/air
separator tank
8
1
1772020
Hose assembly - oil/air separator tank to manifold
9
1
1752020
Hose assembly - oil return - manifold to
compressor
10
30”
1700055
Tube 1/4 outside diameter - system pressure
(black) - manifold to inlet control valve
11
1
3550811
Harness with Connectors
12
1
4800527
Discharge valve assembly
13
1
A700187
60 PSI min. pressure check valve kit
