Void Bias V3 User Manual

1. Mains plug
2. Air vents
3. Ethernet+AESOP ports (AESOP version only)
4. Vext: 12 V
DC
, 1A external voltage input (AESOP
version only)
5. AES3/analog switch for input 2
6. Input 2: channel 2 analog input in analog mode
or AES3 input in AES3 mode, according to the
position of the switch in #5
7. Link button: link input from channels 1 and 2
8. Input 1: channel 1 analog input
9. Speaker connector: output channel 1
10. Speaker connector: output channel 2

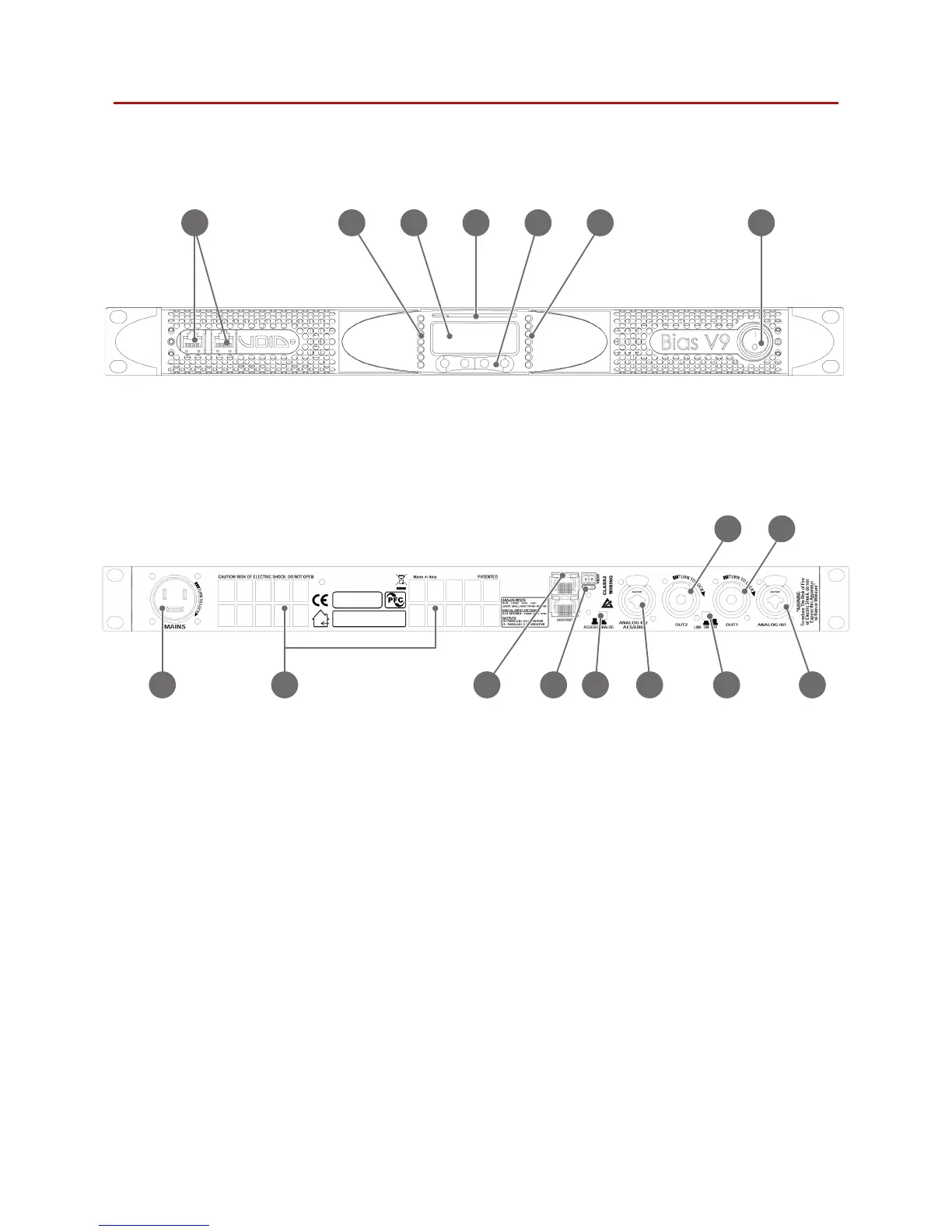

Bias V9 rear panel.
1 2 43 5 6
10
7 8
9
A. RJ45 plugs (either AESOP or RS485 ports
according to the amplifier configuration)
B. LED bar: signal metering channel 1
C. Main display
D. Smart Card slot
E. Multifunction buttons
F. LED bar: signal metering channel 2
G. Main switch
A
FB
C D
E
G
Bias Series User Guide V1.0
Page 5

Void Bias V3 Specifications

General

Brand	Void
Model	Bias V3
Category	Amplifier
Language	English
