7 Shock Absorber (Torsion Beam)
⇒ “7.1 Overview - Shock Absorber (Torsion Beam)”, page 171
⇒ “7.2 Shock Absorber, Removing and Installing”, page 172

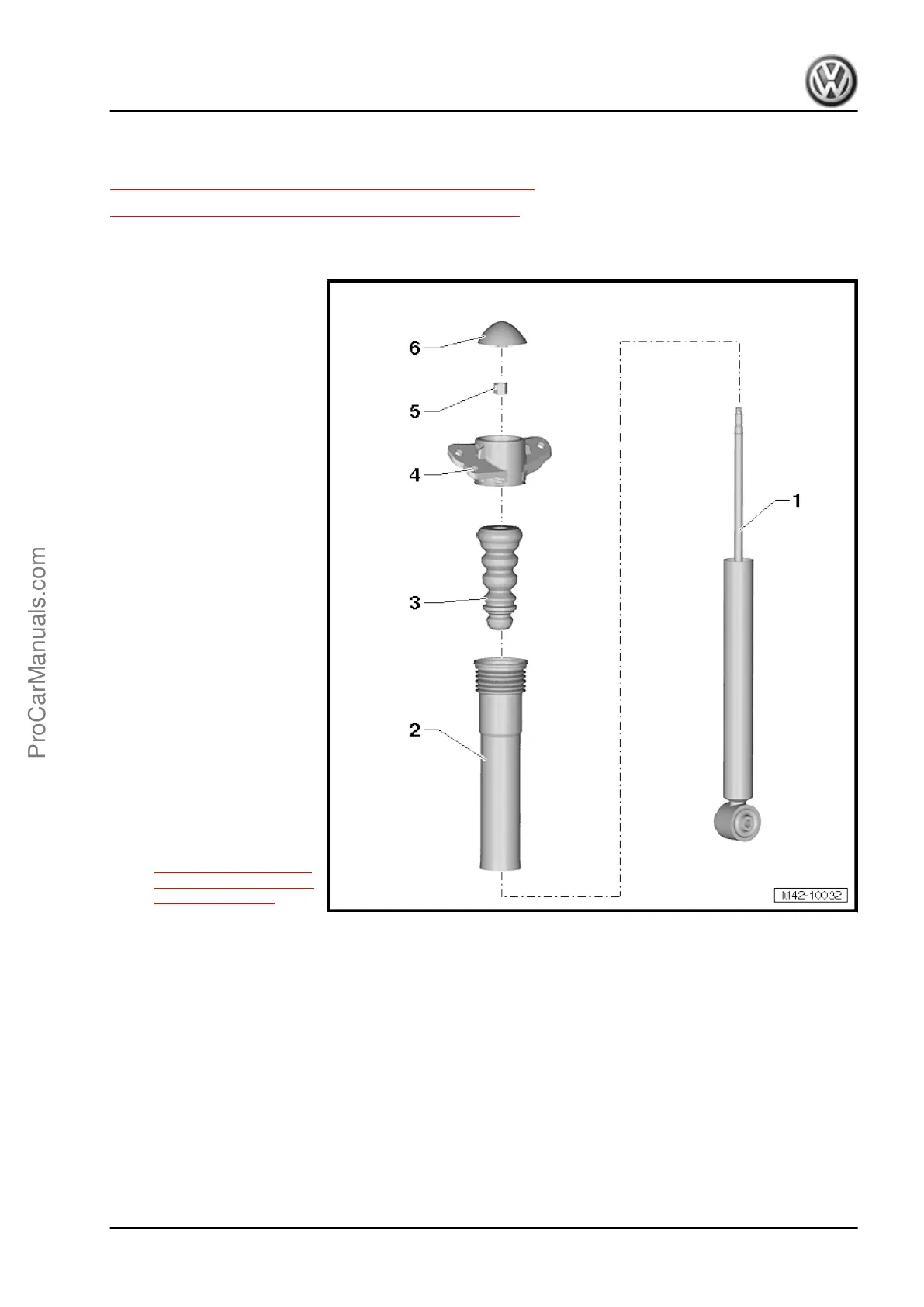

7.1 Overview - Shock Absorber (Torsion Beam)
1 - Gas-Filled Strut
❑ Can be replaced individ‐
ually
❑ Allocation. Refer to the
Parts Catalog.
Function Test
Press shock absorber together
by hand. It should be possible
to push in piston rod smoothly
and with uniform force over its
entire travel.
When the shock absorber has
sufficient gas pressure the pis‐
ton rod returns to its original
starting position.
If the piston rod does not return
to its starting position and there
is no loss of oil then the shock
absorber is still OK.
2 - Protective Pipe
3 - Stop Buffer
4 - Shock Absorber Mount
5 - Nut
❑ 25 Nm
❑ Self-locking
❑ Always replace if re‐
moved
❑ Removing. Refer to
⇒ Fig. ““Removing Hex
Nut from the Gas-Filled
Strut”“ , page 172
6 - Cap
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
7. Shock Absorber (Torsion Beam) 171
