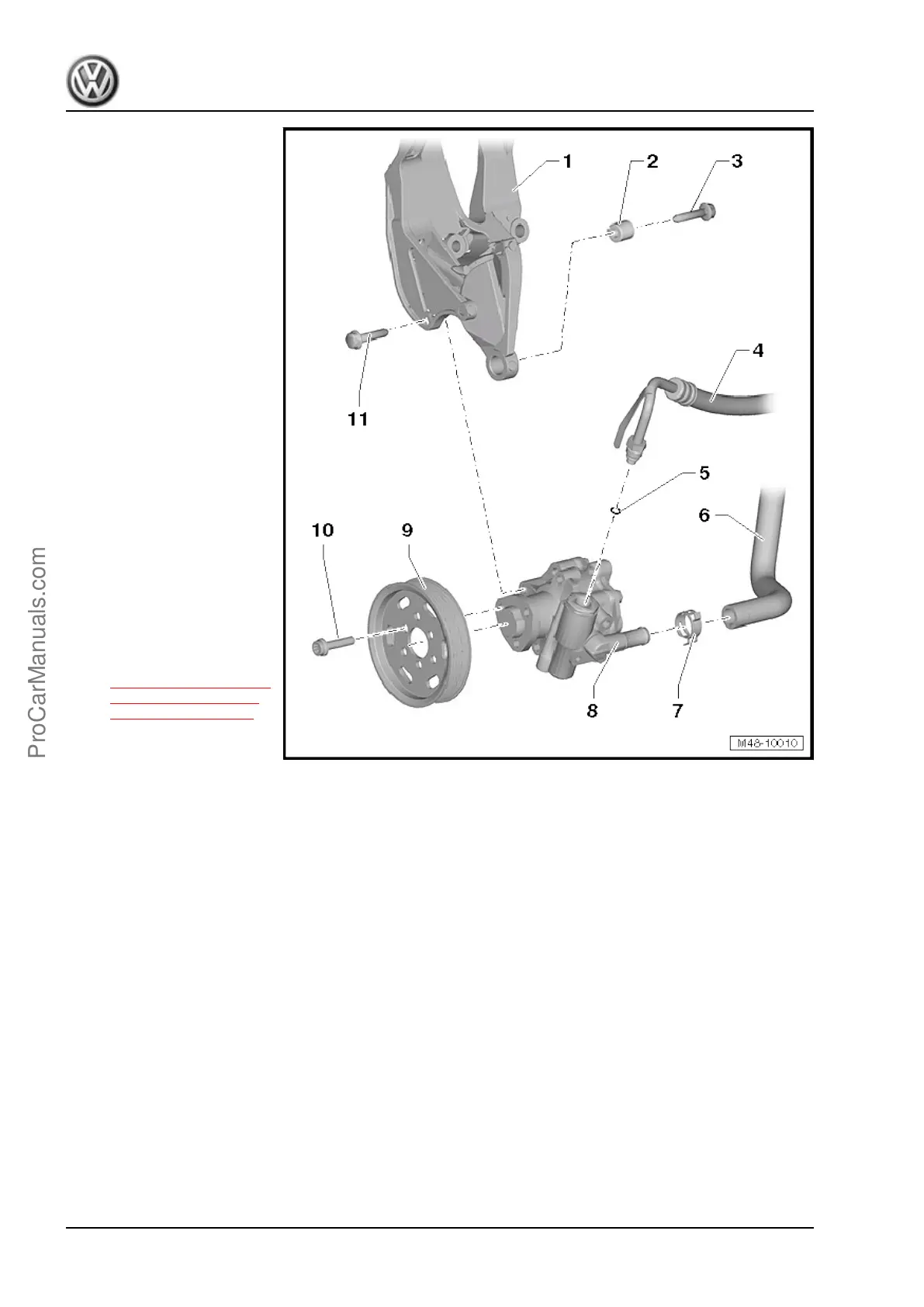

1 - Bracket
2 - Bushing
❑ Drive the bushing back
slightly to install the
power steering pump.
3 - Bolt
❑ 22 Nm
4 - Pressure Line
❑ 32 Nm
5 - Seal
❑ Always replace
6 - Suction Hose
❑ Pay attention to the in‐
stalled position of the
power steering pump:
the marking on the in‐
take hose must line up
with the marking on the
power steering pump.
7 - Spring Clamp
❑ Install on the marking on
the intake hose.
8 - Power Steering Pump
❑ Allocation. Refer to the
Parts Catalog.
❑ Removing and instal‐
ling. Refer to
⇒ “11.2 Power Steering
Pump, Removing and
Installing ”, page 360 .
❑ Fill with oil prior to instal‐
lation
9 - Belt Pulley
10 - Bolt
❑ 22 Nm
11 - Bolt
❑ 22 Nm
❑ Quantity: 2
11.2 Power Steering Pump, Removing and
Installing
Special tools and workshop equipment required
♦ Hose Clamps - Up To 25mm - 3094-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
360 Rep. Gr.48 - Steering
