VOLTA SYSTEM OVERVIEW
A Volta System typically contains an energy storage source (VIP or VSP Energy
Storage Pack), an alternator for charging during driving operations, an inverter/
charger for shore power charging and 120 VAC power distribution, and con-
verters to create DC power at various voltages. Your actual system may vary in
size, complexity, power distribution devices used, or other application specific
variations.
The Volta System and power distribution systems are similar in complexity
to a vehicle engine or generator. Therefore, only Volta technicians or trained
professionals with in-depth knowledge of Volta Systems should service these
components.
The appearance and availability of components in
your Volta System may vary from what is shown.

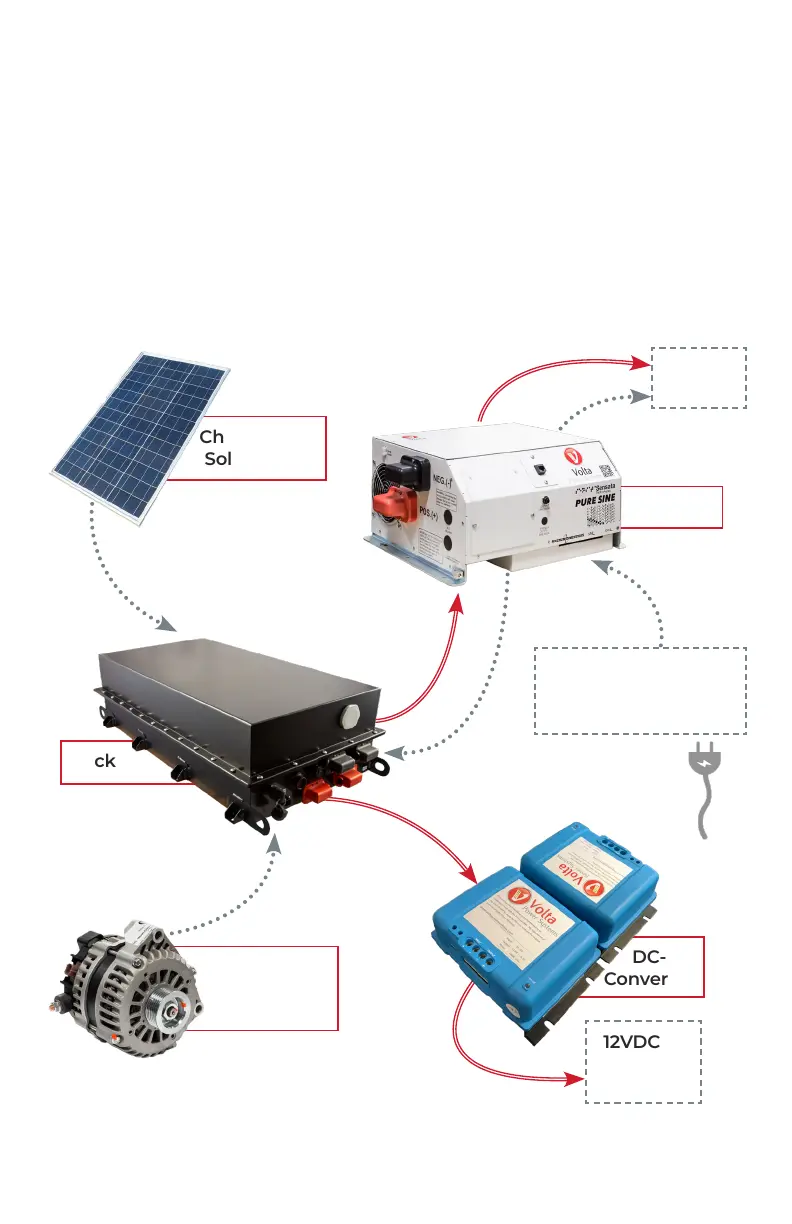

Charge from
Solar Panels
Charge from
Secondary
Alternator
Pack
120VAC
Devices
12VDC or
24VDC
Devices
DC-DC
Converter
Inverter
Operate Devices and
Charge Pack from
Shore Power
To Next Page
