3. STANDARDS COMPLIANCE
3.1. Charging mode
◼ Conformed to
EN IEC 61851-1:2019
◼ The Charging mode of Sonic series product is Mode 3
3.2. Charging connection
◼ According to
EN IEC 61851-1:2019
, Sonic series products meet the Case C connection.

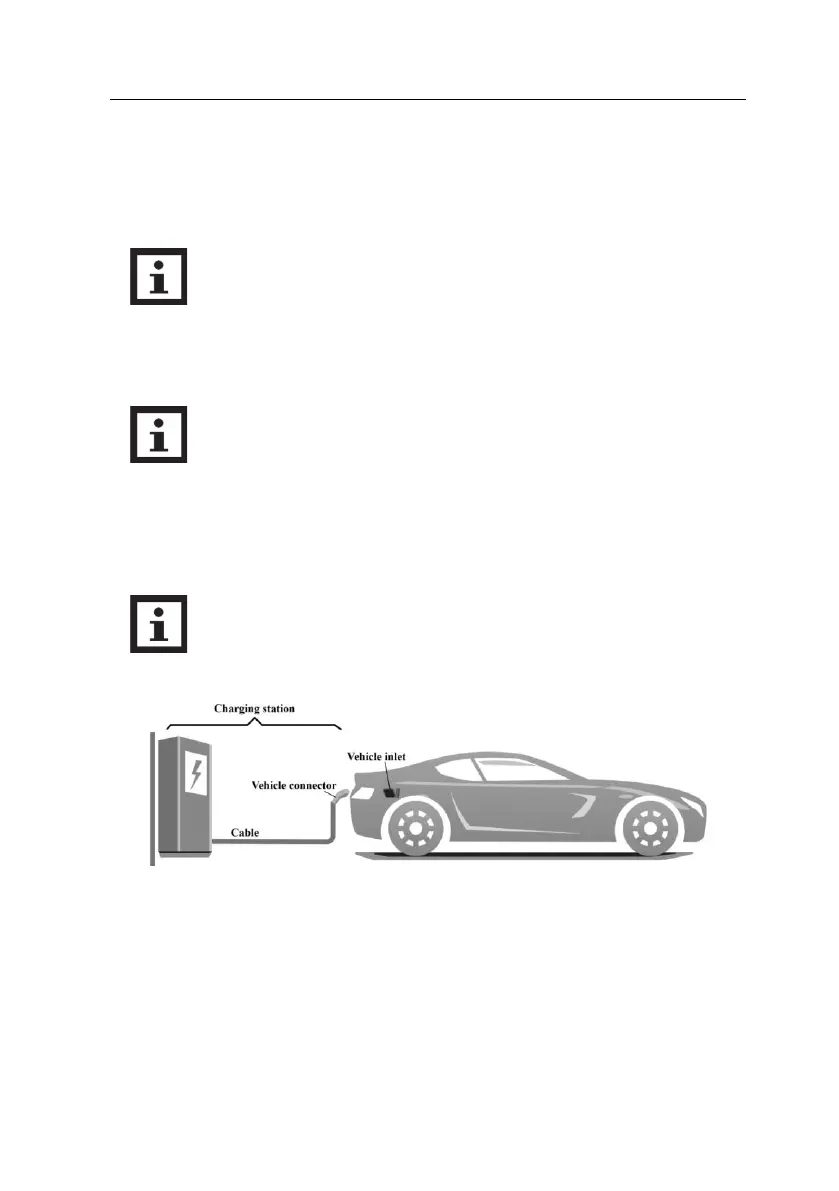

Fig. 3-1 Schematic diagram of CASE C connection
Charging mode:
method for connection of an EV to the supply network to supply energy to the
vehicle
Mode 3
is a method for the connection of an EV to an AC EV supply equipment
permanently connected to an AC supply network, with a control pilot function that
extends from the AC EV supply equipment to the EV.
Case C:
Connection of an EV to a supply network utilizing a cable and vehicle connector
permanently attached to the EV charging station.
