Voltacon Sonic Series - Power Supply System

Sonic Series
AC EV Charging Station
User Manual
- 18 -
3
Wrench
Fastening bolt
4
Diagonal plier
Cut the cable
5
Wire stripper
Peeling cables
6
Crimping plier
Pressed cable terminal
7
Cross screwdriver
Fastening screw

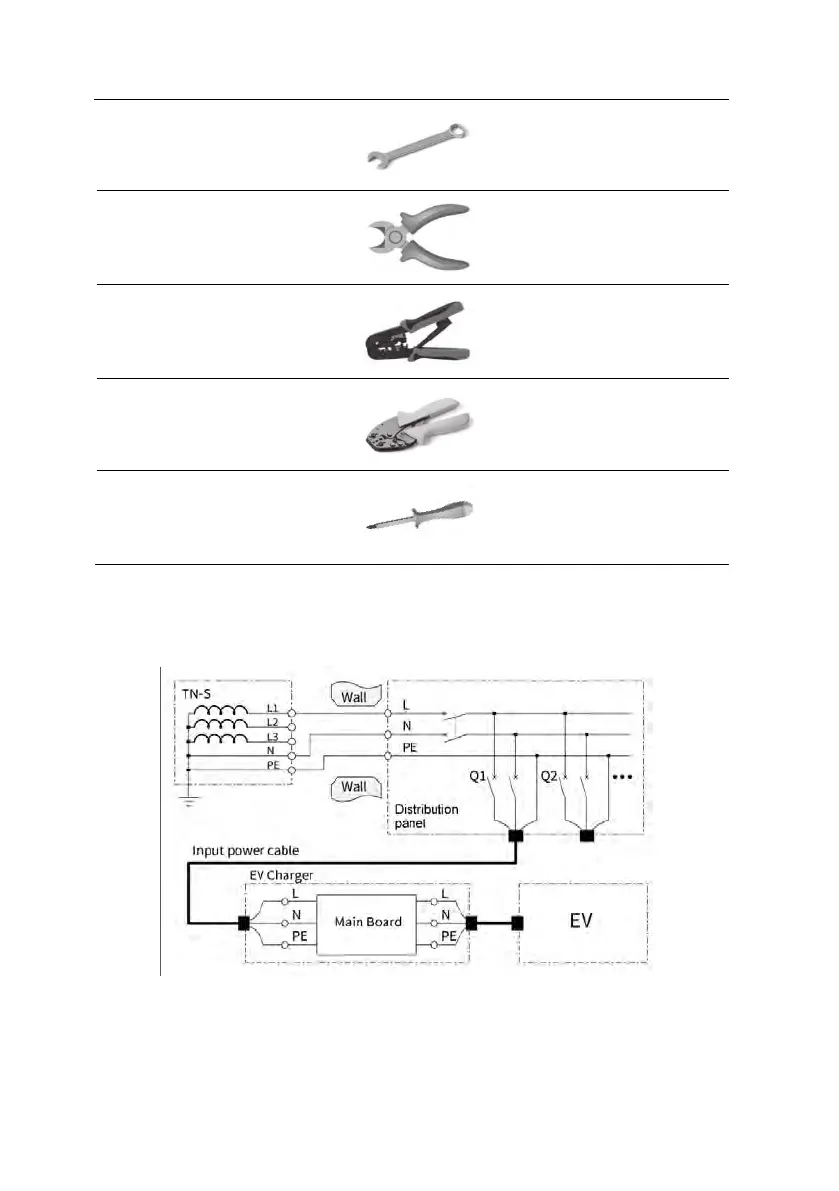

5.3. Power supply system
Sonic series products are suitable for installation in TN power supply system.
a) TN-S power supply system wiring mode
Fig. 5-3 Sonic work in TN-S system
b) TN-C power supply system wiring mode
Earth rod should be installed as far as possible to ensure that household electrical equipment
