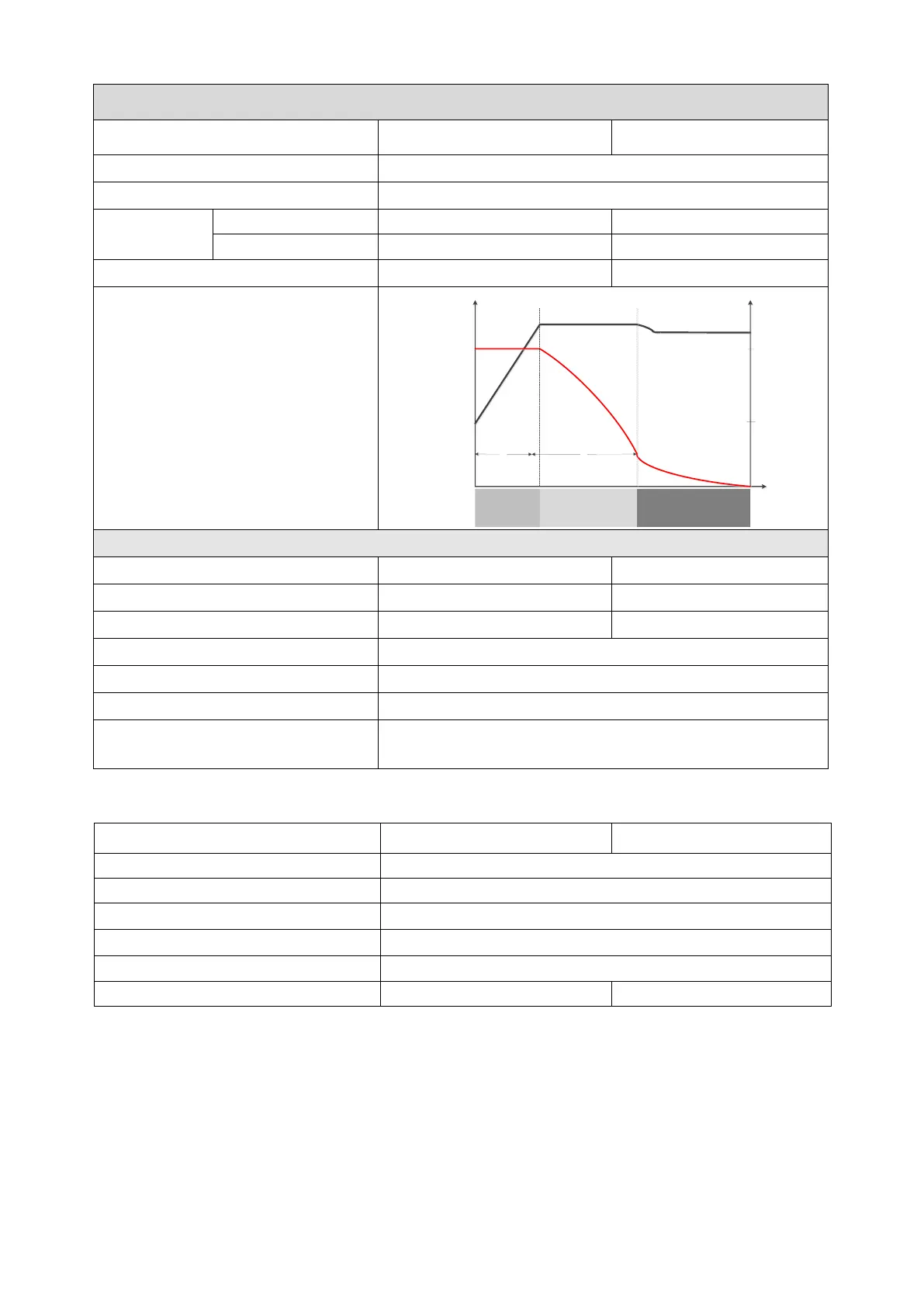

Table 3 Charge Mode Specifications
Utility Charging Mode
INVERTER MODEL
3KVA
5KVA
Charging Algorithm
3-Step
AC Charging Current (Max)
100Amp (@V
I/P
=230Vac)
Bulk Charging
Voltage
Flooded Battery
29.2
58.4
AGM / Gel Battery
28.2
56.4
Floating Charging Voltage
27Vdc
54Vdc
Charging Curve
Time
Battery Voltage, per cell
Charging Current, %
100%
50%
Bulk
(Constant Current)
Absorption
(Constant Voltage)
Maintenance
(Floating)
Current
Voltage
T
1
T1 = 10* T0, minimum 10mins, maximum 8hrs
T
0
2.43Vdc (2.35Vdc)
2.25Vdc
MPPT Solar Charging Mode
INVERTER MODEL
3KVA
5KVA
Max. PV Array Power
4000W
5000W
Nominal PV Voltage
240Vdc
320Vdc
Start-up Voltage
150Vdc +/- 10Vdc
PV Array MPPT Voltage Range
120~450Vdc
Max. PV Array Open Circuit Voltage
500Vdc
Max Charging Current
(AC charger plus solar charger)
100Amp
Table 4 General Specifications
INVERTER MODEL
3KVA
5KVA
Safety Certification
CE
Operating Temperature Range
-10°C to 50°C
Storage temperature
-15°C~ 60°C
Humidity
5% to 95% Relative Humidity (Non-condensing)
Dimension (D*W*H), mm
100 x 300 x 440
Net Weight, kg
9
10
