53
Repair of MS2V reverse gear, angle gear

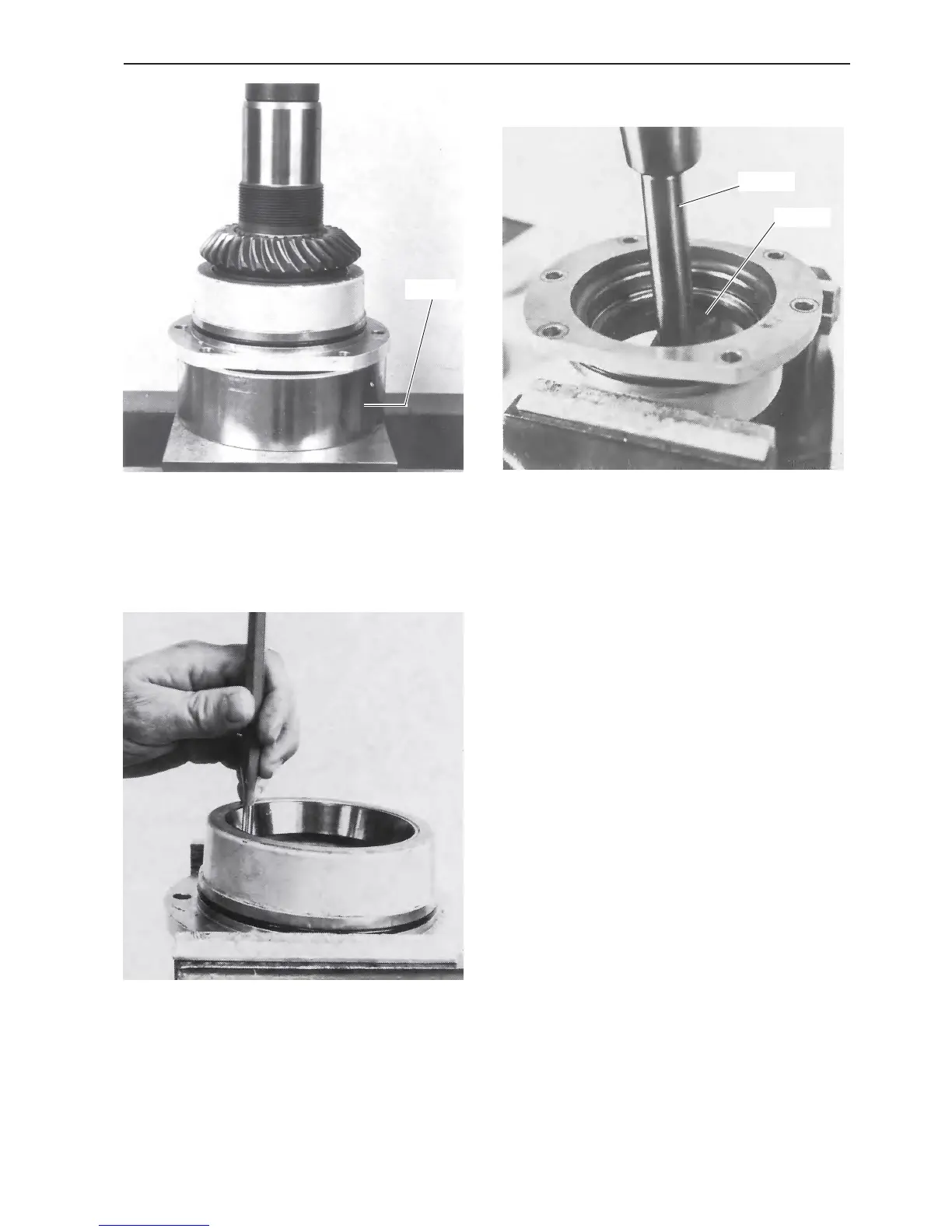

9. Put the tubular shaft in sleeve 884637 and press
out the tubular shaft, which also removes the crown
wheel and the inner roller bearing.
10. Remove the seal ring from the cover. The seal
ring must always be replaced by a new one.
11. Remove the bearing race from the cover. Use tool
no. 884857 and shaft 884859.
884637
884859
884857
