Volvo Penta TAMD42 - Installing Engine on the Bed and Alignment

Engine installation
48
The engine bed on which the engine is located shall
be on one plane.
Check the surface of the engine bed, where the en-
gine mounts are supported, and the base plates of the
engine mounts are parallel, and that the bed inclina-
tion is correct (use a graded angle-spirit level).
± 8 mm (0.32")
∅ 34 mm
(1.38")
∅ 40 mm
(1.58")
∅ 34 mm
(1.38")
∅ 40 mm
(1.58")
↑
↓
± 7,5 mm (0.30")

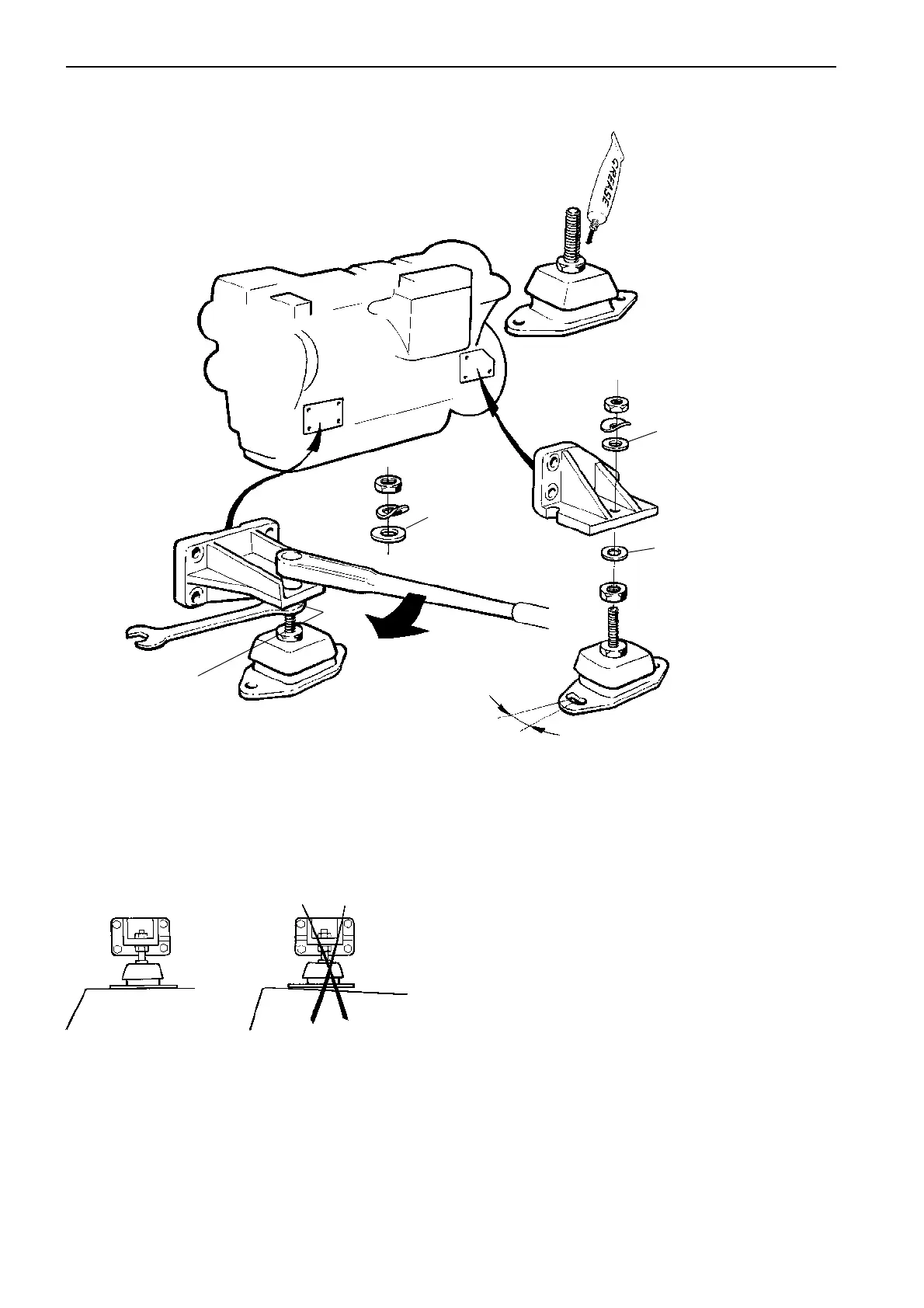

Installing the engine on the engine bed
