Fuel system
56
KAMD44/300
1
2
2

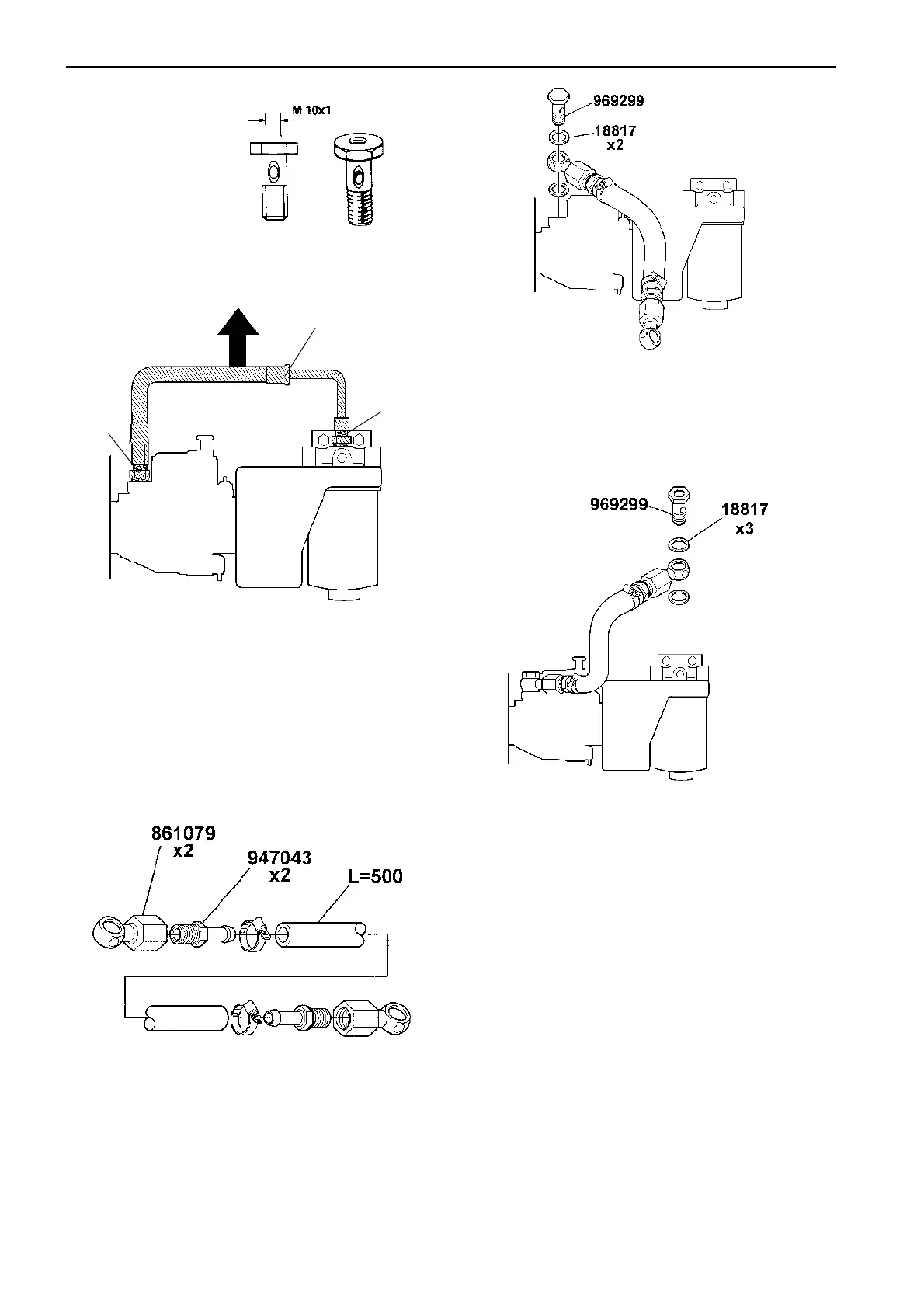

Connect an approximately 50 cm long fuel hose
861057 with a banjo nipple 861079, hose mounting
947 043 and hose clamp 943471 at each end.
Close the fuel cocks.
Remove any clamps for the wiring at the timing cover
for better access.
Disconnect the fuel line (1) between the fuel filter and
the fuel injection pump.
Remove the nipples (2) in the fuel filter and fuel injec-
tion pump.
Drill and thread hollow screw to M10x1 as illustrated.
Use hollow screw M12, part no. 969299.
Connect the fuel hose to the fuel injection pump using
pipescrew 969299 and 2 x copper washers 18817.
Connect the fuel hose to the filter cover using the
drilled and threaded hollow screw 969299 and 2 x cop-
per washers 18817.
Connect nipple 9996666 to the threaded hollow screw.
Pressure is measured after the fuel has passed
through the fuel filter.
