Exhaust system
73

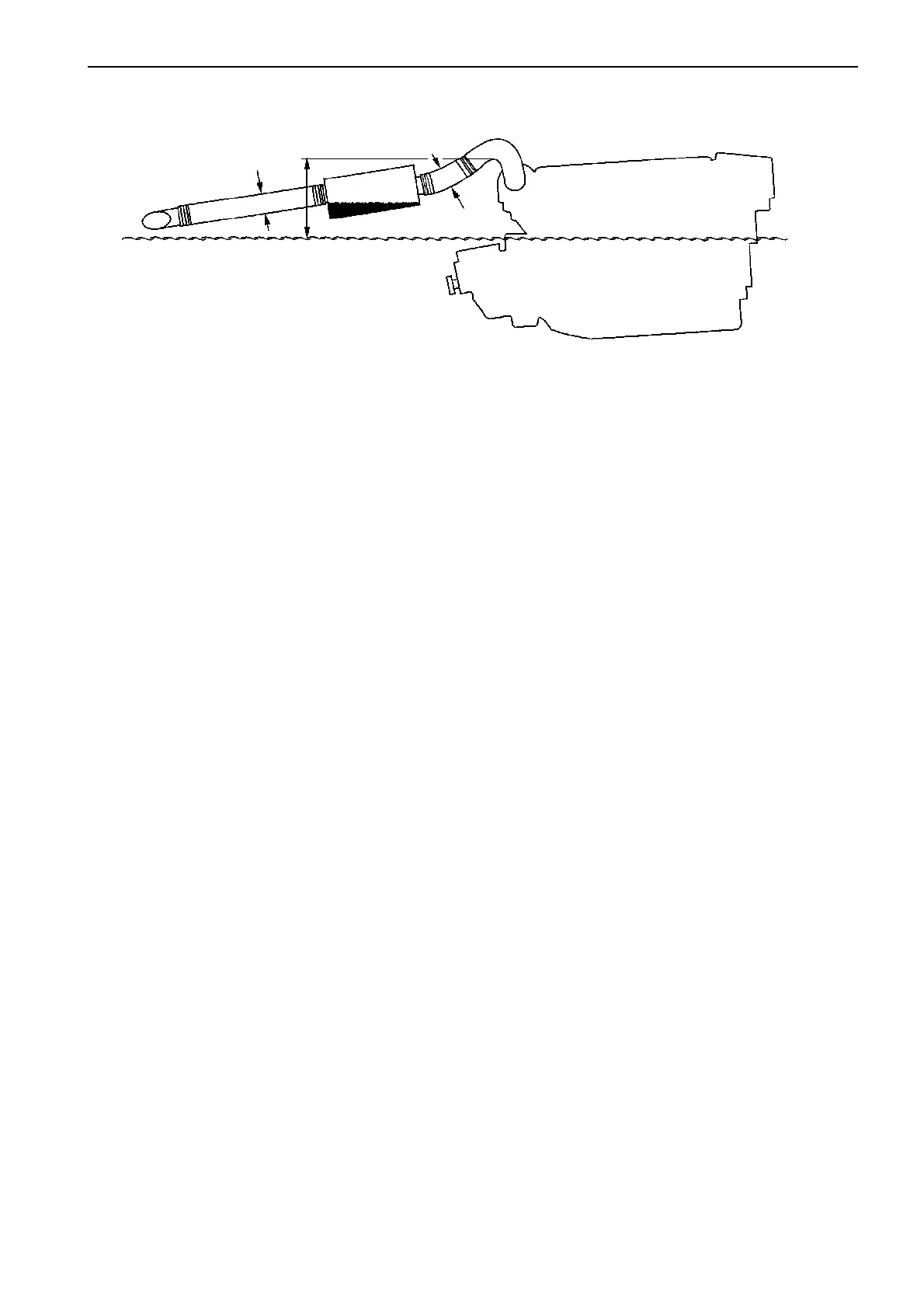

Exhaust system, In-line silencer. Wet exhaust line
An in-line silenser is most suitable when the exhust
outlet is located high in relation to the water line so an
acceptable downward inclination can be acheived. The
importance is that the system is drained when the en-
gine is shut off.
Recommended hose diameter (innerdiameter)
∅∅
∅∅
∅
A
and
∅∅
∅∅
∅
B
see table on page 72.
NOTE! An in-line system is not recommended when
height (Cmin) exhaust elbow – waterline is less than
350 mm (13.7").
WL
∅∅
∅∅
∅
B
∅∅
∅∅
∅
A
Cmin
