Electrical system
90

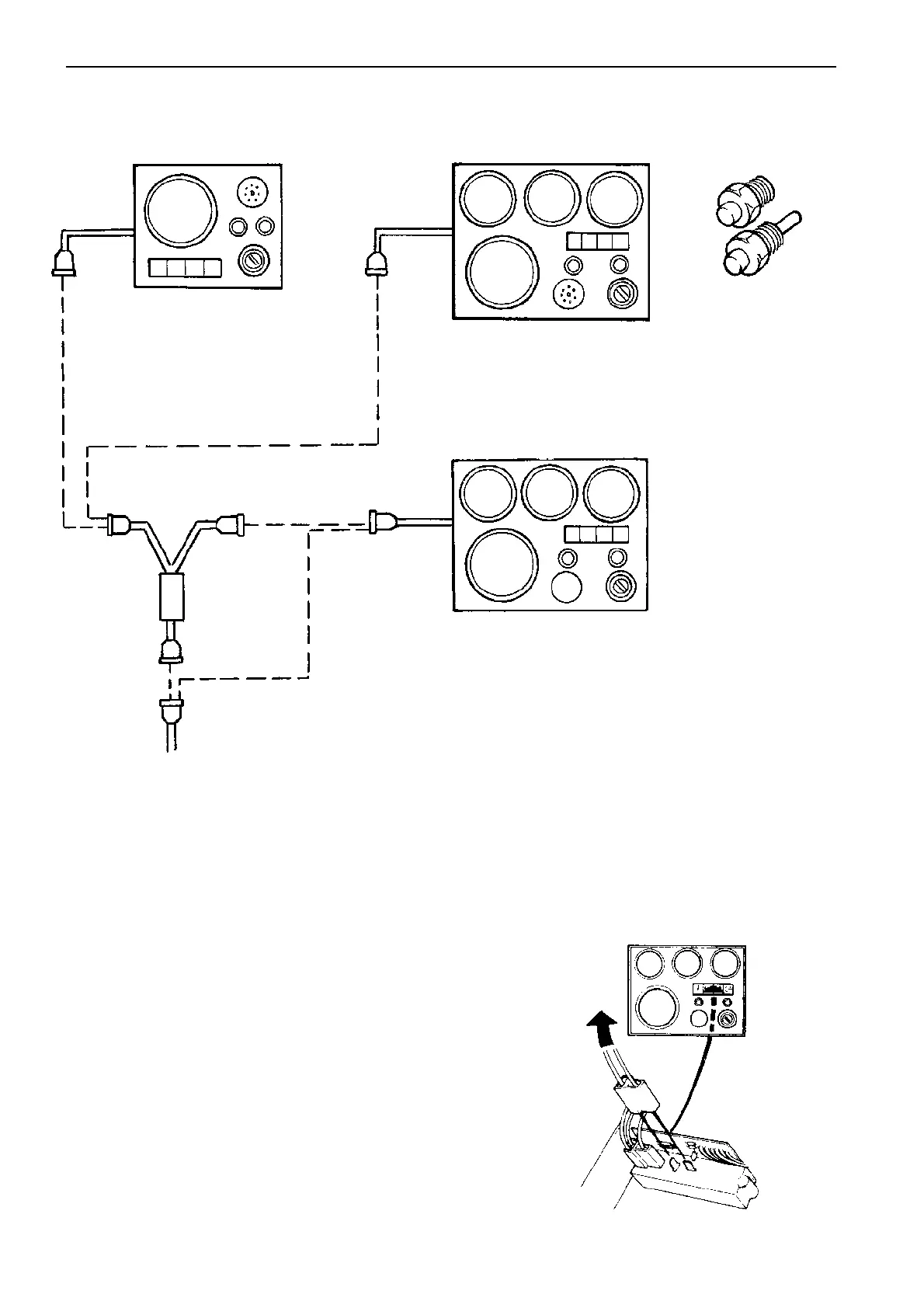

Complete instrument panels for one or two stations
Power supply
Extra outlets. The extra outlets are located at the
back of the alarm panel. The outlets can be used to
connect additonal instruments, radio etc.
NOTE! Maximum current outlet for both instrument
panels together: 5 Amps.
Oil pressure sensor
Coolant temp. sensor
Main
Y-connector
FlybridgeFlybridge
Full instrumentation
Full instrumentation
Tachometer
NOTE! When two
panels, full instrumen-
tation are used, make
sure oil pressure
sender and coolant
temperature sender
for two instruments
are used.
From
engine
Current
outlet
