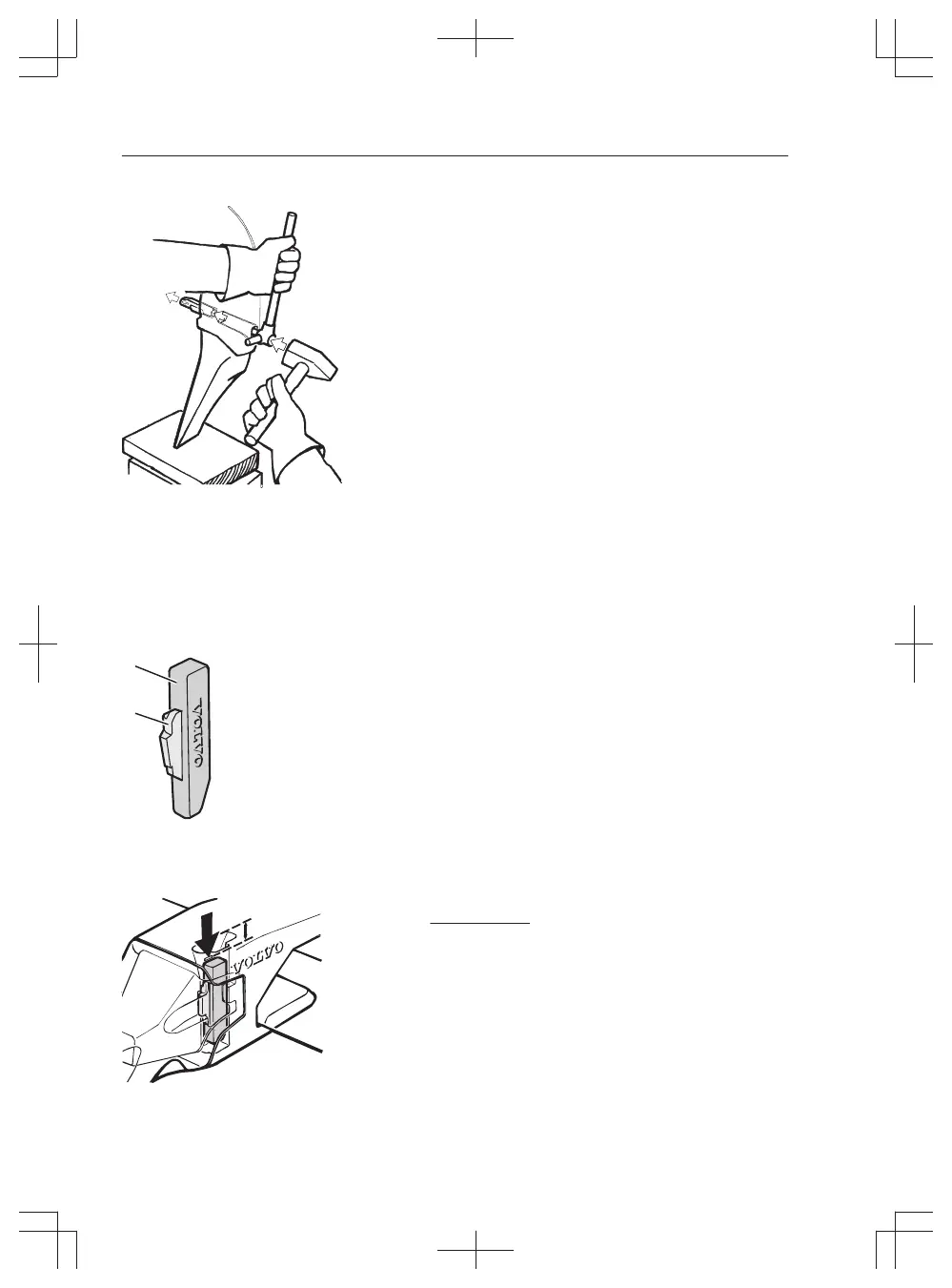

Removing ripper tooth
1 Lower the tooth onto stable ground as shown.
2 Clean the opening for tooth adapter locking
device.
3 Knock out the locking device with a hammer and
the special tool or other suitable drift.
4 Remove tooth.
Installing tooth
1 Clean the front part of the tooth adapter and the
hole for the locking device.
2 Install the tooth so that the guide lugs fit in the
tooth adapter recesses.
3 Replace lock retainer (B) with a new part.
4 Install the locking device so that the chamfered
part points downward and the lock retainer
points forward.
5 Knock down the locking device with a hammer
until it is level with the upper part of the tooth
adapter.
6
Bucket tooth: Knock down the locking device
further with a hammer and the tool or other
suitable drift until the upper part is just below the
scored line in the hole.
Locking device in bucket tooth
The locking device should be just below
the scored line.
174
Maintenance
Maintenance service, when required
