WARNING
Risk of crushing.
A raised attachment could fall and cause crushing
injury.
Before leaving the cab, always lower all
attachments to the ground and lock the control
functions.

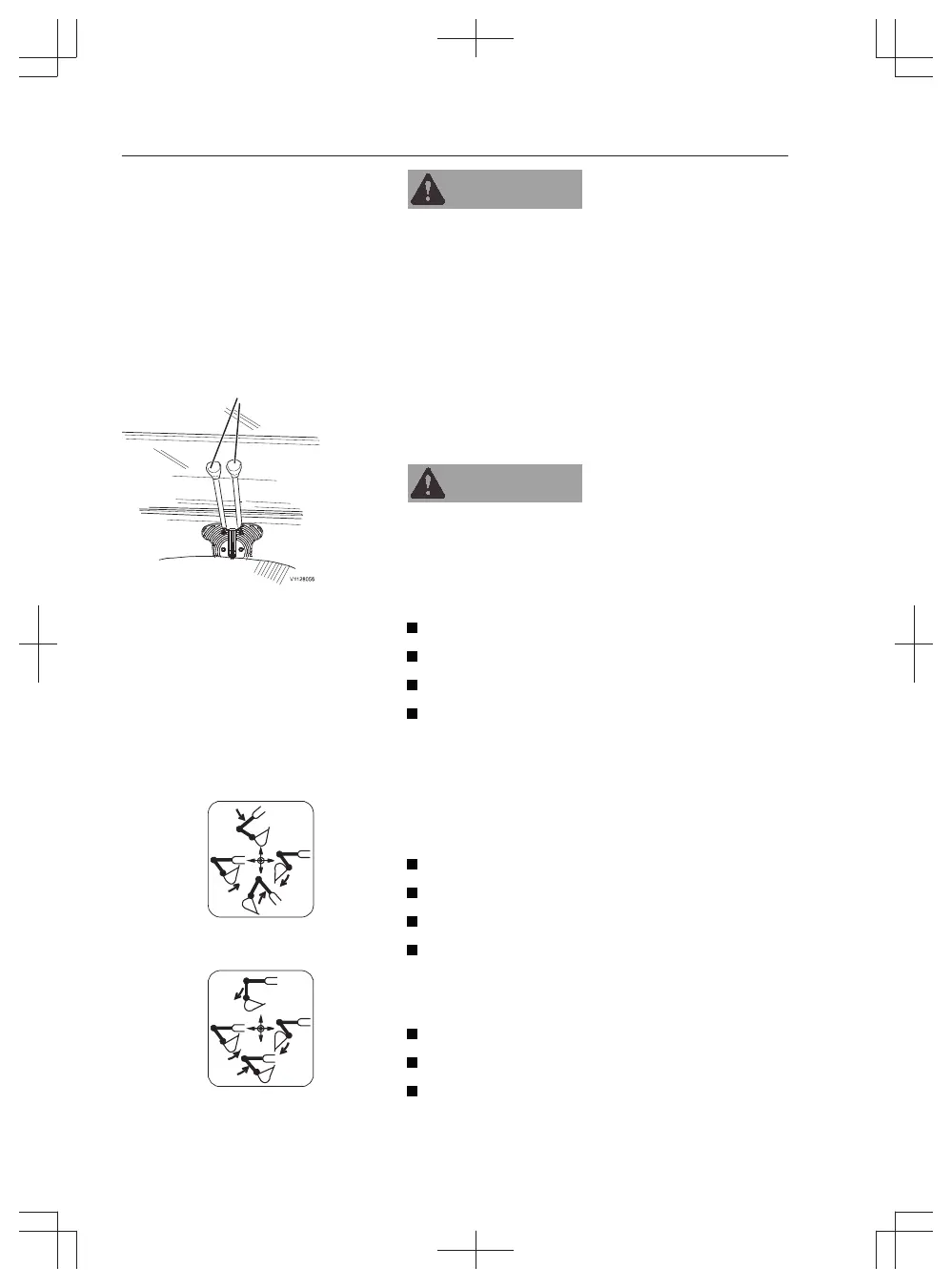

5. Control levers for travel motion
(pedals are optional equipment)
When the dozer plate is in the rear position (180°
rotation), the travel system operation is reversed.
WARNING
Risk of fatal accidents.
Unexpected driving direction could lead to
accidents resulting in serious injury or death.
Always check the driving direction before moving
the machine.
Push both levers forward: Forward travel.
Pull both levers backward: Reverse travel.
Push right lever forward: Turn left.
Push left lever forward: Turn right.
NOTE!
When operating the travel levers the travel alarm
(optional, not for EC15E) emits a warning signal.
6. Right control lever for attachments (ISO
control pattern)
Lever forward: Boom down.
Lever backward: Boom up.
Lever to the right: Empty the bucket (opening).
Lever to the left: Fill the bucket (closing).
Right control lever for attachments (STD
control pattern, North America only)
Lever forward: Extending the dipper arm.
Lever backward: Retracting the dipper arm.
Lever to the right: Empty the bucket (opening).
