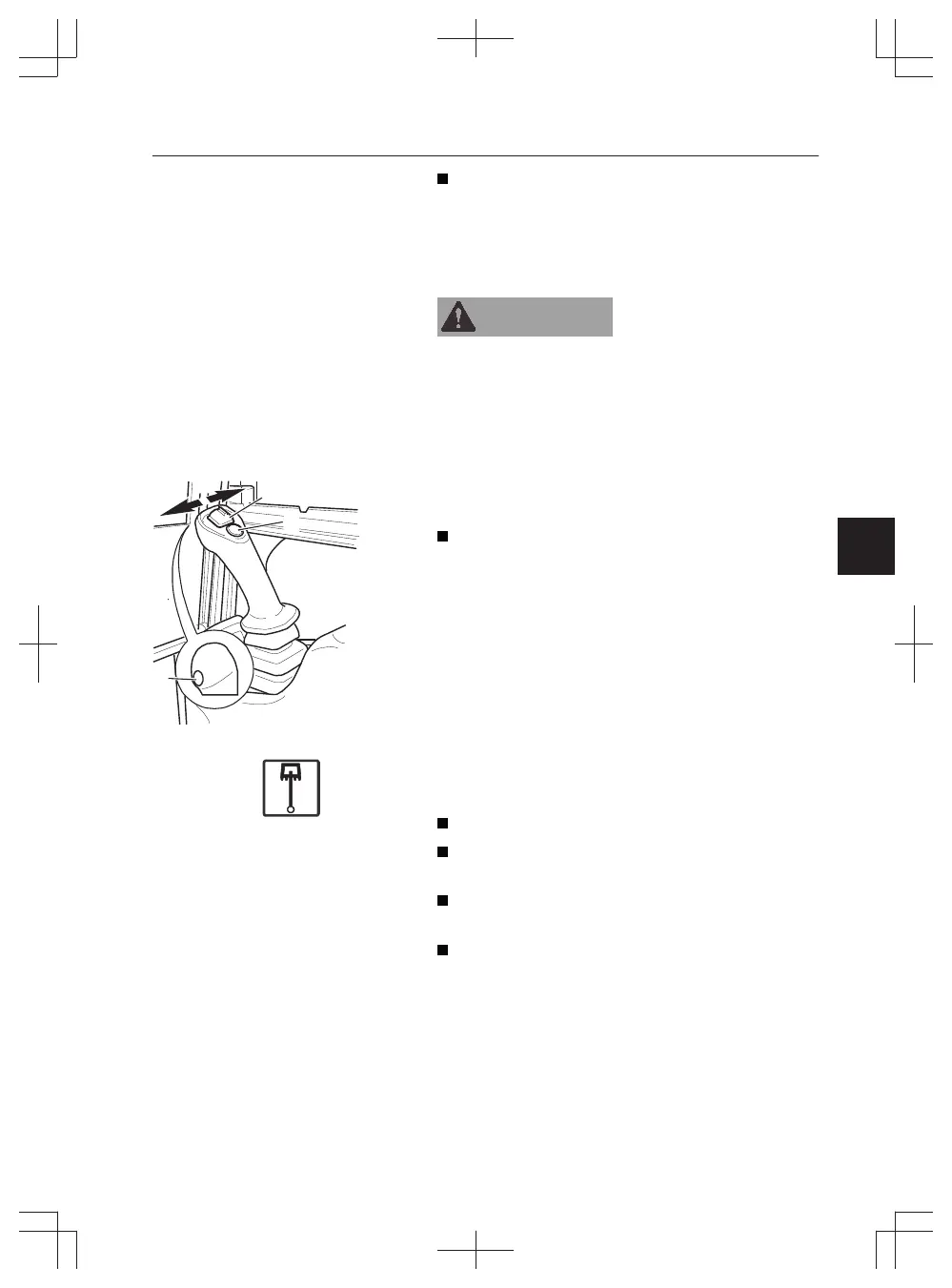

Lever to the left: Fill the bucket (closing).
NOTE!
Market dependent optional equipment. North
America only. See control pattern selector switch in
chapter Instrument panels, right, on page
38
.
WARNING
Risk of serious accidents.
Unfamiliar control patterns could cause confusion
and accidents resulting in serious injury.
Use extreme caution when using the control levers
after changing the control pattern and until you
become familiar with the new pattern.
7. Push button for X1 max flow (optional, not
for EC15E)
Actuation of the switch executes the function of
the first auxiliary with maximum hydraulic flow.
8. Rocker switch or proportional roll switch to
control X1 or boom offset hydraulic flow
Switch in central position: Neutral
Switch to the left (A) in boom offset mode: offset
boom to the left
Switch to the right (B) in boom offset mode: offset
boom to the right
Switch to the left (A) in X1 mode: accessory flow
through pipe on left side of boom
