Presentation
Product plates 9
Product plates

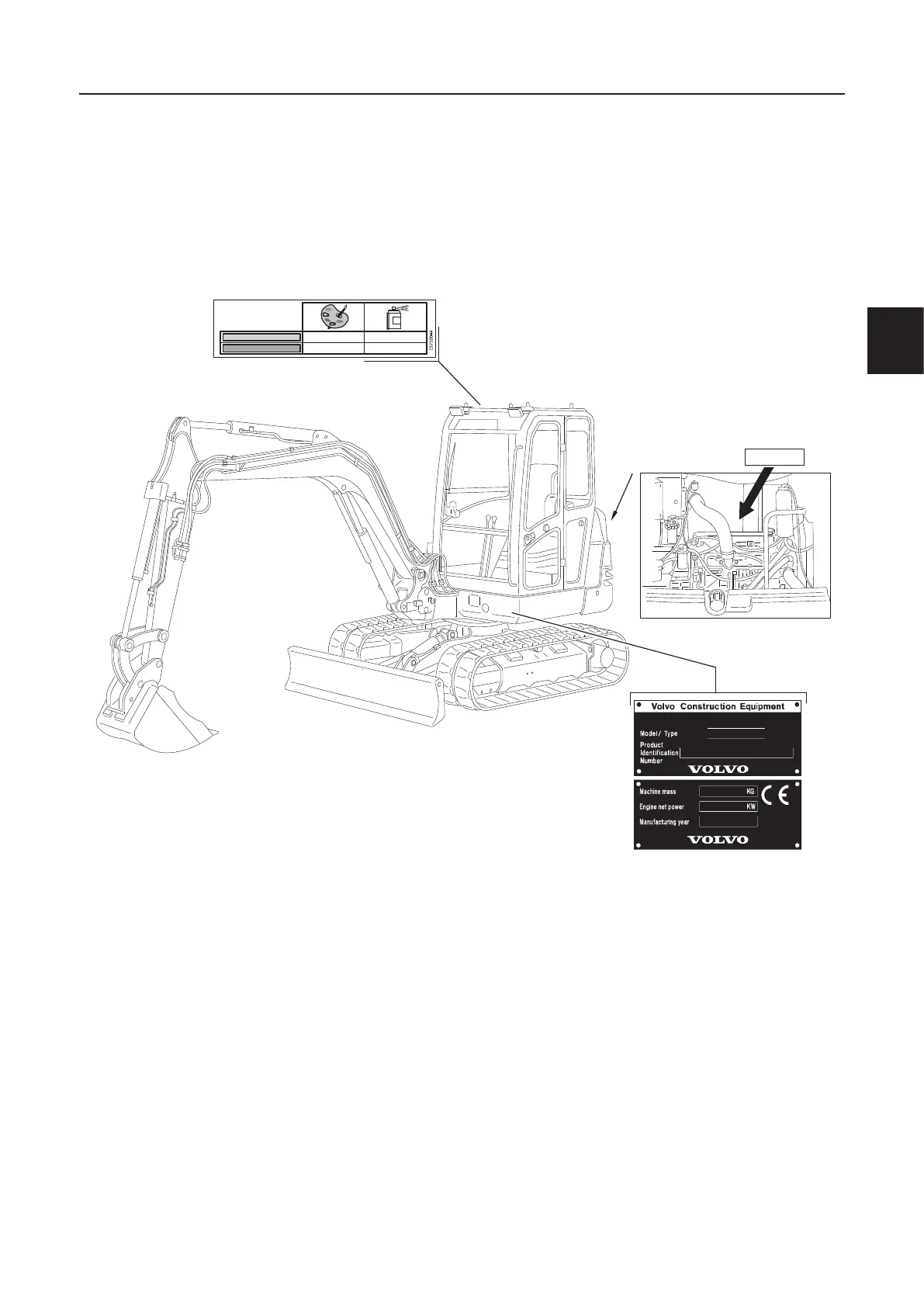

The following illustrations and descriptions show the product pla-
tes on the excavator.
When ordering spare parts or for short enquiries by phone and in
correspondence you should always specify model designations
and product identification number.
1 Product plate
The product plate contains name and address of manufacturer,
model/type designation, product identification number, weight of
machine, engine power, year of manufacture, as well as CE-sign
(only in EC countries).
2 Engine identification plate
The engine identification plate is located on the valve cover.
3 Colour code
The colour code is specified on a sticker stuck to the cabin roof.
Volvo Compact Equipment sas
Volvo Compact Equipment sas
BP 119 - BELLEY Cedex - FRANCE
2
N°
1
Yellow Volvo E2340086
E2340085Grey Volvo
Volvo Construction
Equipment
3
1012097
