Volvo EC45 - Nominal Lifting Loads EC45

Specifications
126 Nominal lifting loads EC35
Nominal lifting loads EC35
Nominal lifting loads Europe

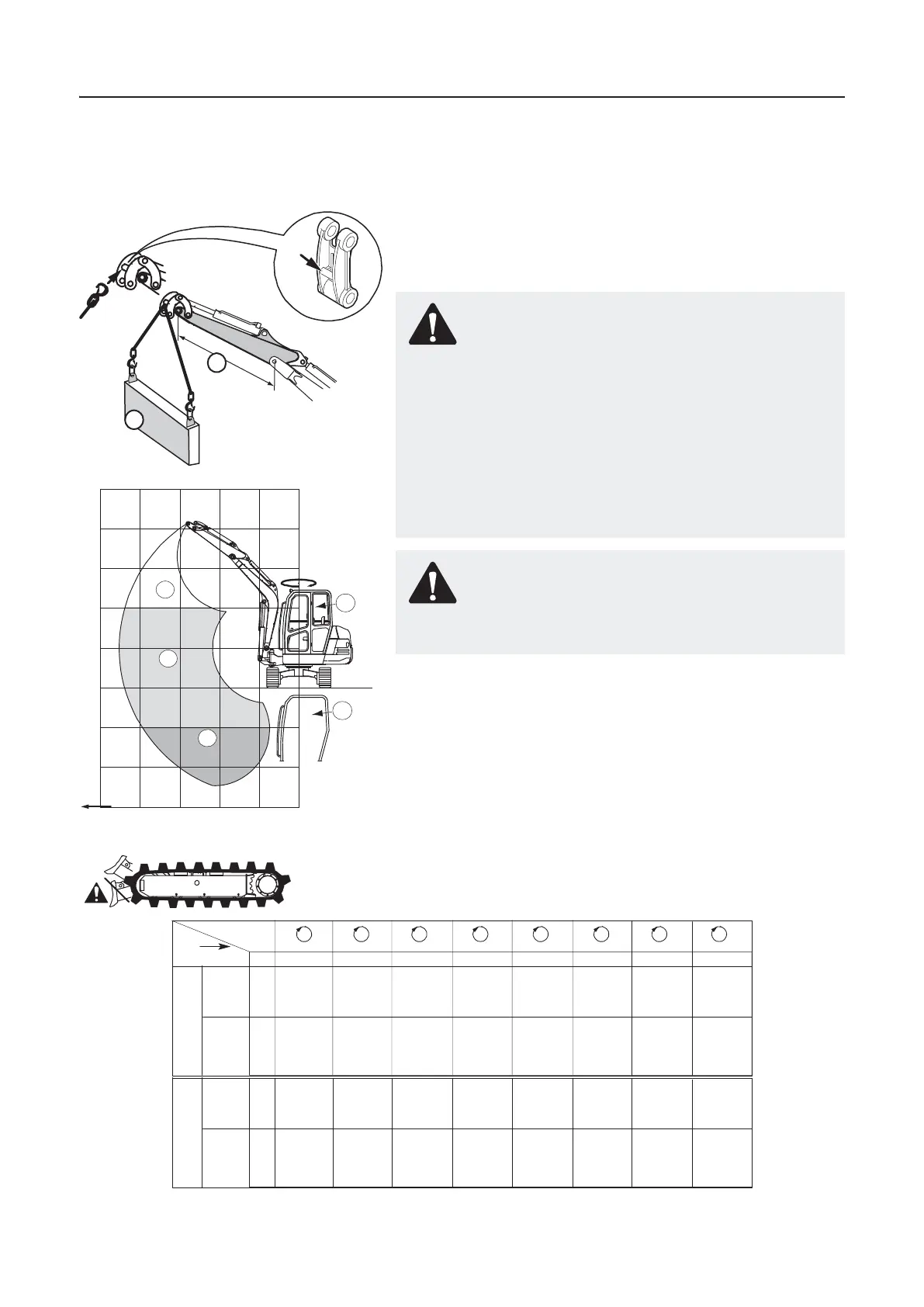

Nominal lifting loads in kg, i.e. 75% of the tipping load or 87% of
the hydraulic limit. These loads apply for the complete height (Z.)
and for the specified reach. Increase of loads by 3% for steel
tracks, except the marked values (* = hydraulic limits).
The specified values are valid for a machine:
– without attachment and without quick coupling.
NOTE! If handling is accomplished in lifting gear operation
the weight of the attachments must be subtracted from the va-
lues stated in the table
– On level and firm ground
– With rubber tracks.
– Equipment during full rotation.
– Equipment parallel to the axis of the superstructure.
– With a 75 kg driver in the cab.
WARNING!
The transport of objects in lifting gear operation is prohib-
ited if the machine is not equipped with a “Safety" Kit,
which is optionally available and includes the following:
Q
a safety valve on the boom,
Q
a load safety device (see switch in instrument panel),
Q
a table stating the nominal loads for lifting gear ope-
ration, fastened inside the operator's stand.
The assembly of the "Safety" Kit must only be carried out by
an authorized person.
WARNING!
Lift objects only with the lifting tackle provided for this pur-
pose, which consists of a rod (A) between both sides.
OK
1012173
1011325
L
Kg
A
1011322
360¡
Z2
Z1
Z3
5m
3m 2m 1m
0m
5m
4m
2m
-
1m
0m
1m
3m
4m
-2m
X
B
A
1011323
> 1.5 2 2.5 3 3.5 4 4.5 4.8
Z2 955 720 570 465
____________________________________________________________________________________
Z1 1555* 1190 845 655 530 445 380
____________________________________________________________________________________
Z3 2040* 1215 855 660 535
Z2 730 575 465 385
____________________________________________________________________________________
Z1 1395* 1175 835 645 520 435 370 340
____________________________________________________________________________________
Z3 1945* 1190 840 645 520 435
X(m)
L:
1.40m
L:
1.70m
A
Z2 895 675 538 440
Z1 1465* 1100 785 615 498 415 355
Z3 1950* 1120 795 615 503
Z2 685 543 440 365
Z1 1305* 1085 775 605 488 410 350 320
Z3 1855* 1100 780 605 488 410
L:
1.40m
L:
1.70m
B
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
