Volvo EC45 - Page 127

Specifications
Dimensions EC45 125

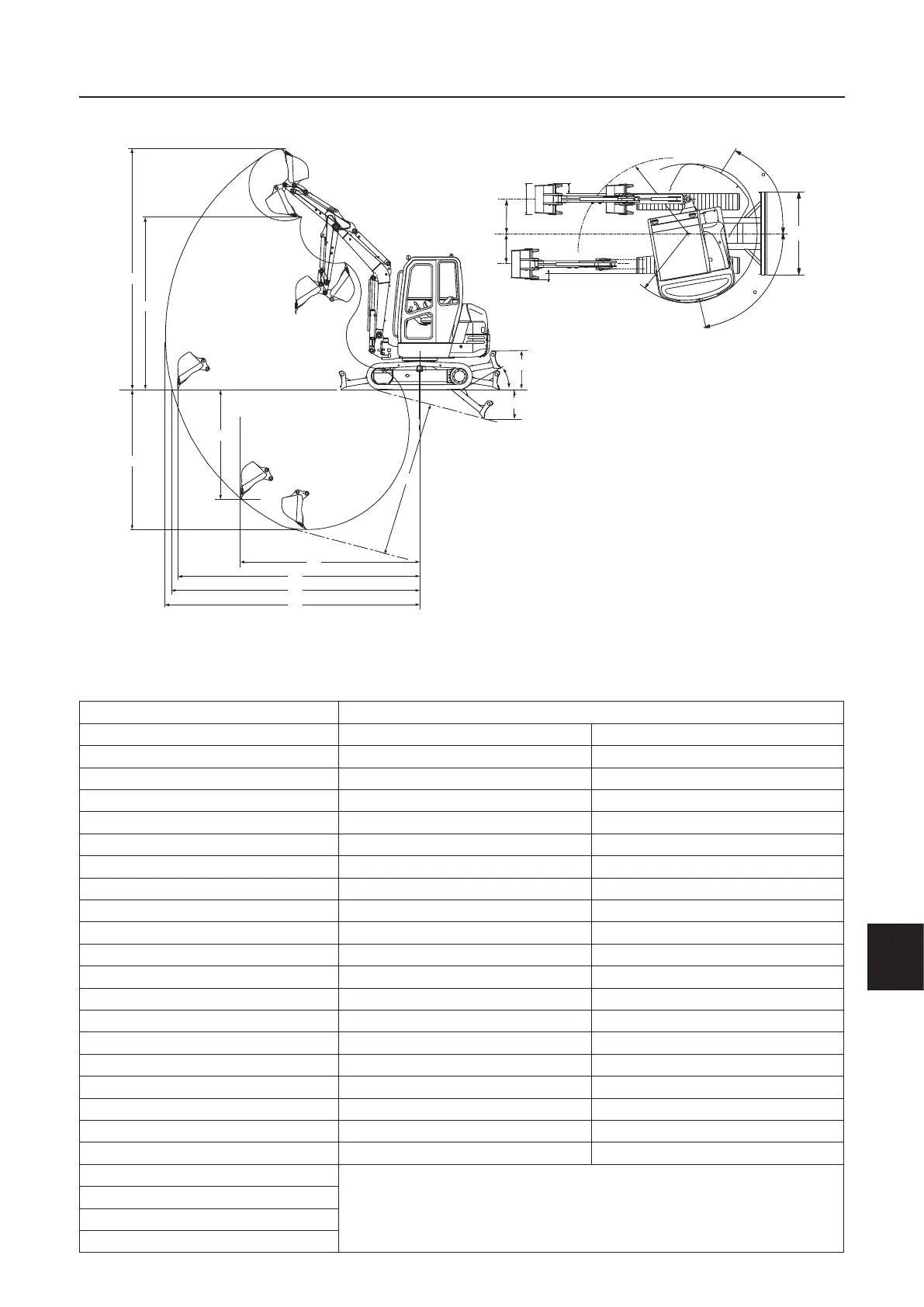

Dimensions (mm)
The technical data of the machine serve for the purpose of information only and can be changed by the manufac-
turer without prior notification
.
Version EC45
Arm 1400 1700
A 4929 5081
B 3522 3674
C 3454 3753
C1 3619 3906
C2 1992 2267
D 5382 5666
D1 5501 5778
D2 5335 5616
D3 4356 4476
F 479 479
G 744 744
J 1850 1850
K 697 697
L 499 499
M9797
N 101 101
O 600 600
R1 1858 1911
R2 1420 1420
Digging force (daN)
3358 (daN)
2424 (daN)
60° / 80°
360°
Ripping force (daN)
Offsetting angle
Total swashing angle
1011316
F
D3
D2
D
D1
A
B
C2
G
C
C1
M
N
K
O
L
R1
R2
J
80
60
