Other controls
Controls 29
Other controls

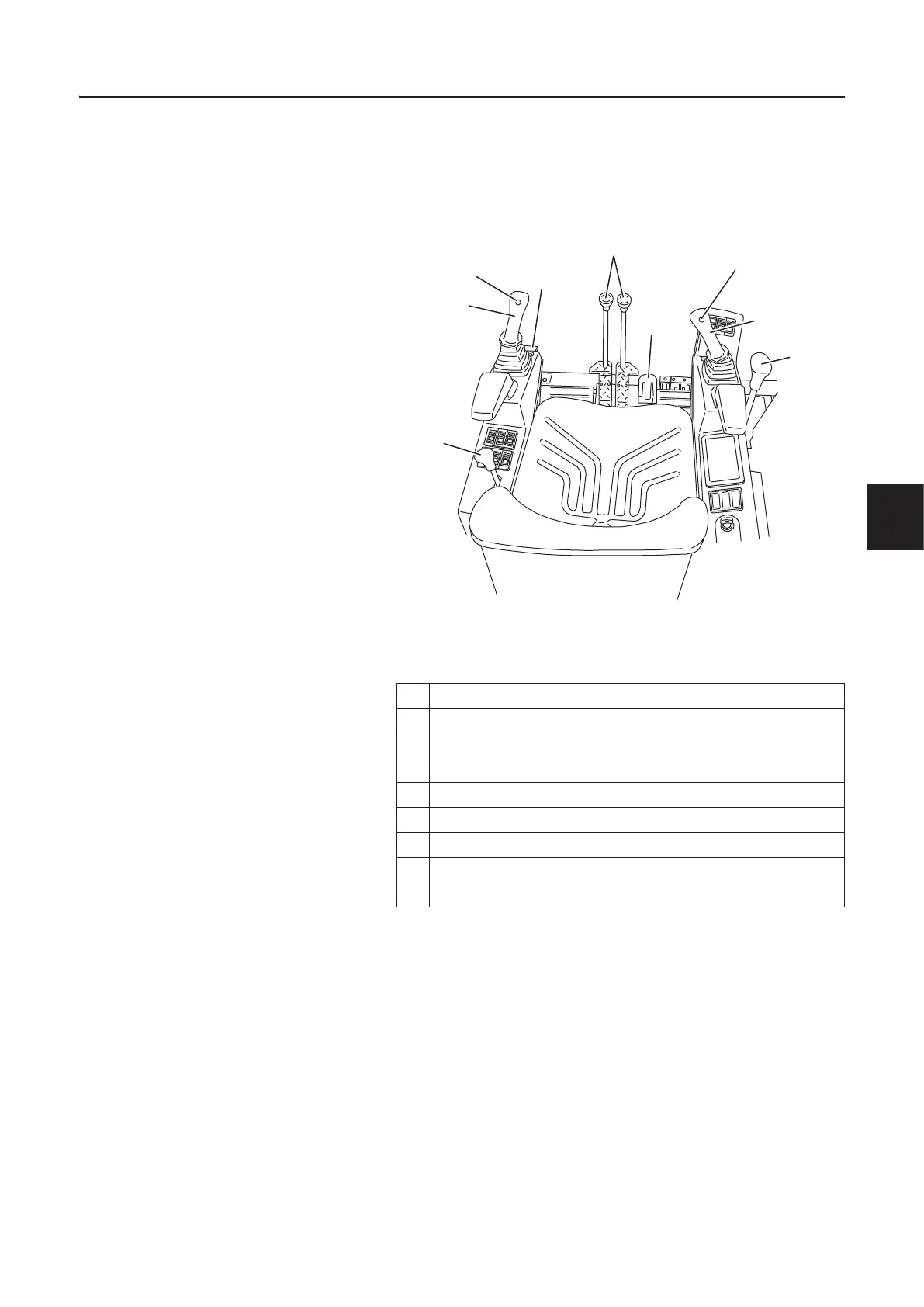

Controls
1 Throttle lever
2 Left hand control lever for excavator attachment
3 Selector switch "Slewing or Offset"
4 Safety lock for working and travel hydraulics
5 Pedal for optional equipment
6 Control levers for travel motion
7 Warning horn switch
8 Right hand control lever for excavator attachment
9 Dozer blade control lever
1012118
1
8
2
3
4
5
6
7
9
