Volvo EC45 - Page 15

Presentation
Decals and stickers 13

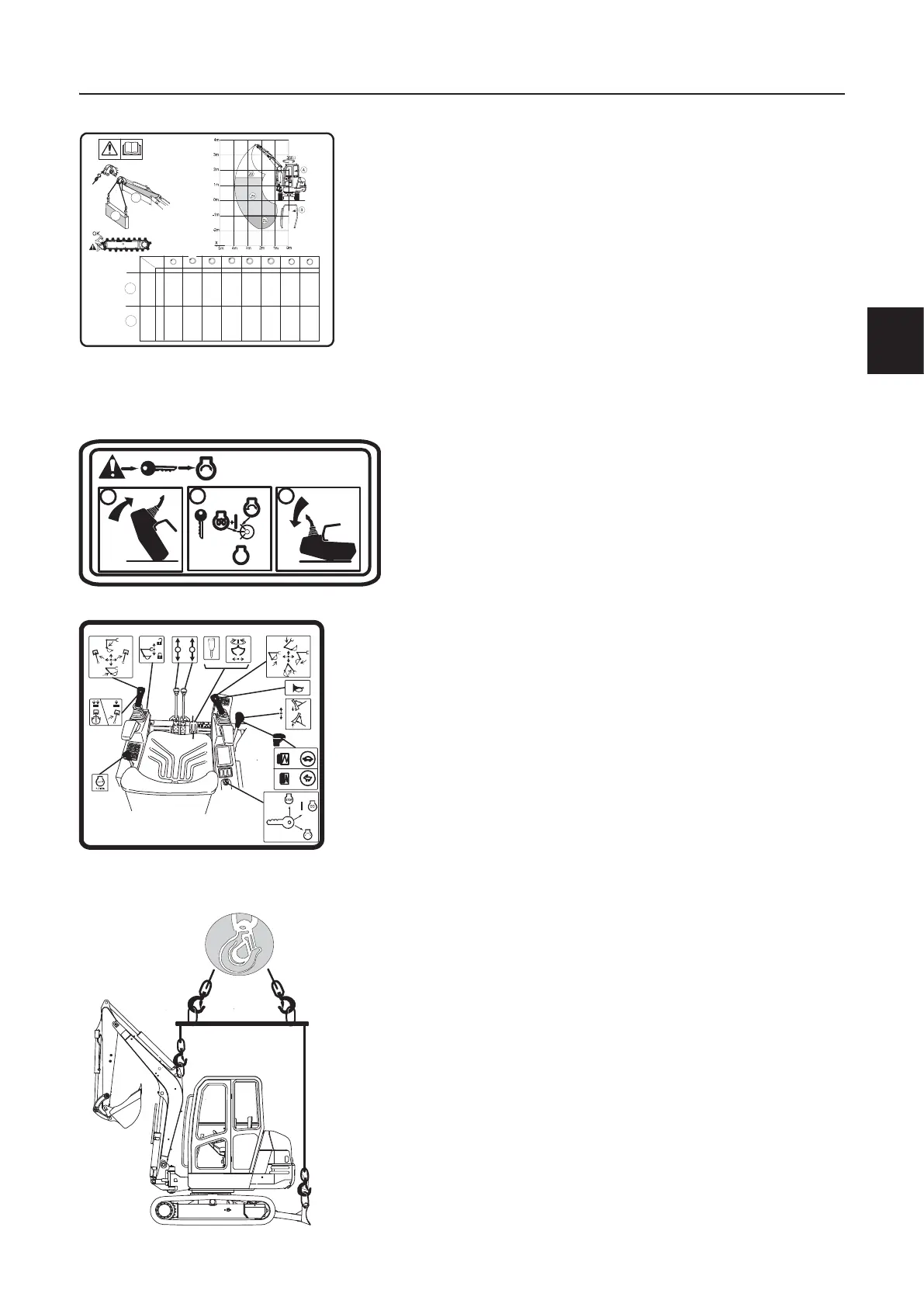

13 Information decal - Nominal lifting loads.
This information decal contains information about the nominal
transport loads of the machine and is stuck to the ceiling of the
operator's cab or the protection roof.
14 Information decal – Locking console.
This information decal is stuck to the ceiling of the operator's cab
and explains the starting procedure.
15 Information decal - Operator’s stand control
elements.
This information decal contains information about the control ele-
ments on the machine and is stuck to the ceiling of the operator's
cab.
16 Information decal – Loading, Unloading/Lifting
the machine.
This information decal is stuck to the ceiling of the operator's cab
and indicates the loading/lifting points on the machine.
Kg
L
E
5
7
5
0
9
7
2
B
1012271
>
1.5 2 2.5 3 3.5 3,9 4 4.2
Z2 975 710* 540 430
____________________________________________________________________________________
Z1 1470 905 655 515 420 360
____________________________________________________________________________________
Z3 1490 925 665 520
____________________________________________________________________________________
____________________________________________________________________________________
Z2 885* 710 470* 430 350
____________________________________________________________________________________
Z1 1015* 900 650 505 410 345 325
____________________________________________________________________________________
Z3 1465 910 655 510 415
Z2 915 656 505 400
____________________________________________________________________________________
Z1 1380 850 615 480 390 335
____________________________________________________________________________________
Z3 1395 865 620 485
____________________________________________________________________________________
____________________________________________________________________________________
Z2 885* 665 470* 400 330
____________________________________________________________________________________
Z1 1015* 845 610 470 385 320 300
____________________________________________________________________________________
Z3 1375 850 610 475 390
X(m)
L:
1.2 m
L:
1.5 m
L:
1.2 m
L:
1.5 m
A
B
OK
STOP
1
2 3
=1+2+3
E5750985A
1012267
E5750952
N N
1012276
A
B
+
1012136
