Operating techniques
64 Hammer (option)

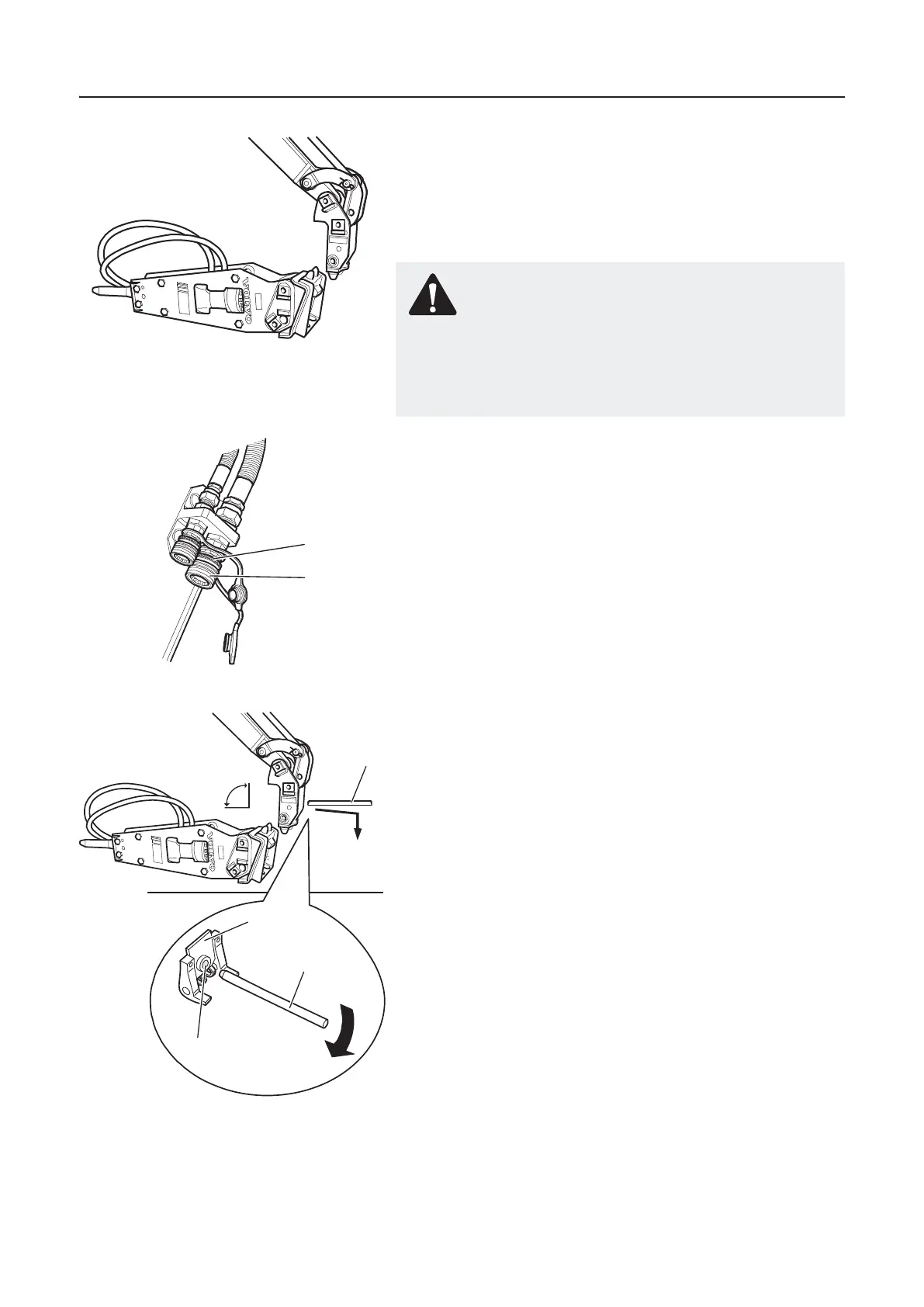

Removing the hammer (manual quick fastening)
The hammer is removed outside the machine with the help of a
metal bar (1) (part of the on-board equipment), which is used to
operate the releasing mechanism on the interlocking plate (4).
1 Place the machine on firm and level ground.
2 Lower the boom and lay the hammer flat on the ground.
3 Turn the black safety rings (D) and pull them back to unlock the
hydraulic couplings (C).
4 Disconnect the hydraulic hoses of the hammer from the hy-
draulic connections on the boom.
5 Position the quick release device with the hammer under an
angle of 90°.
6 Insert the bar (1) into the opening (3) and press it down to un-
lock the plate (4).
NOTE! The metal bar (1) is stored between the windscreen
and the control levers for travel operation.
NOTE! Lay the hammer on a pallet. This enables easier trans-
port of the hammer after disassembly.
NOTE! Depending on the equipment the hydraulic connec-
tions on the boom can vary from the illustration and the des-
cription.
WARNING!
Before removing or connecting hydraulic hoses the engine
must be shut down and the control levers shifted to all
directions, in order to relieve any trapped pressure. It must
be strictly assured that the engine cannot be started after
hydraulic couplings have been opened.
