Standard STD 101-0001
Volvo Group
Version
4
Page
14
4.3.2.2 Hard copy
For working purpose, a hard copy of any visual display shall be available on demand. This hard copy is for
reference only.
4.3.3 Model requirements
4.3.3.1 General
The following subsections give requirements for annotation applied to a DSM. These are general requirements,
which apply to all types of annotation. Specific requirements for particular types of annotation are addressed in
sections 4.4 to 4.9.
4.3.3.2 Associativity
The following are general provisions for defining an associative relationship between digital elements.
Annotation shall be associated to a model feature, a group of features, or a portion of an applicable model feature,
for example, the associated entities for a dimension.
Annotation, model geometry, and supplemental geometry may be placed in associated groups to indicate their
relationships.
See figure 11.
Example 1: Supplemental geometry used to define location, orientation, or further clarify the application of
annotation to a model.
Example 2: A model coordinate system for datum systems.
Example 3: Qualifying notes and size limit indications.

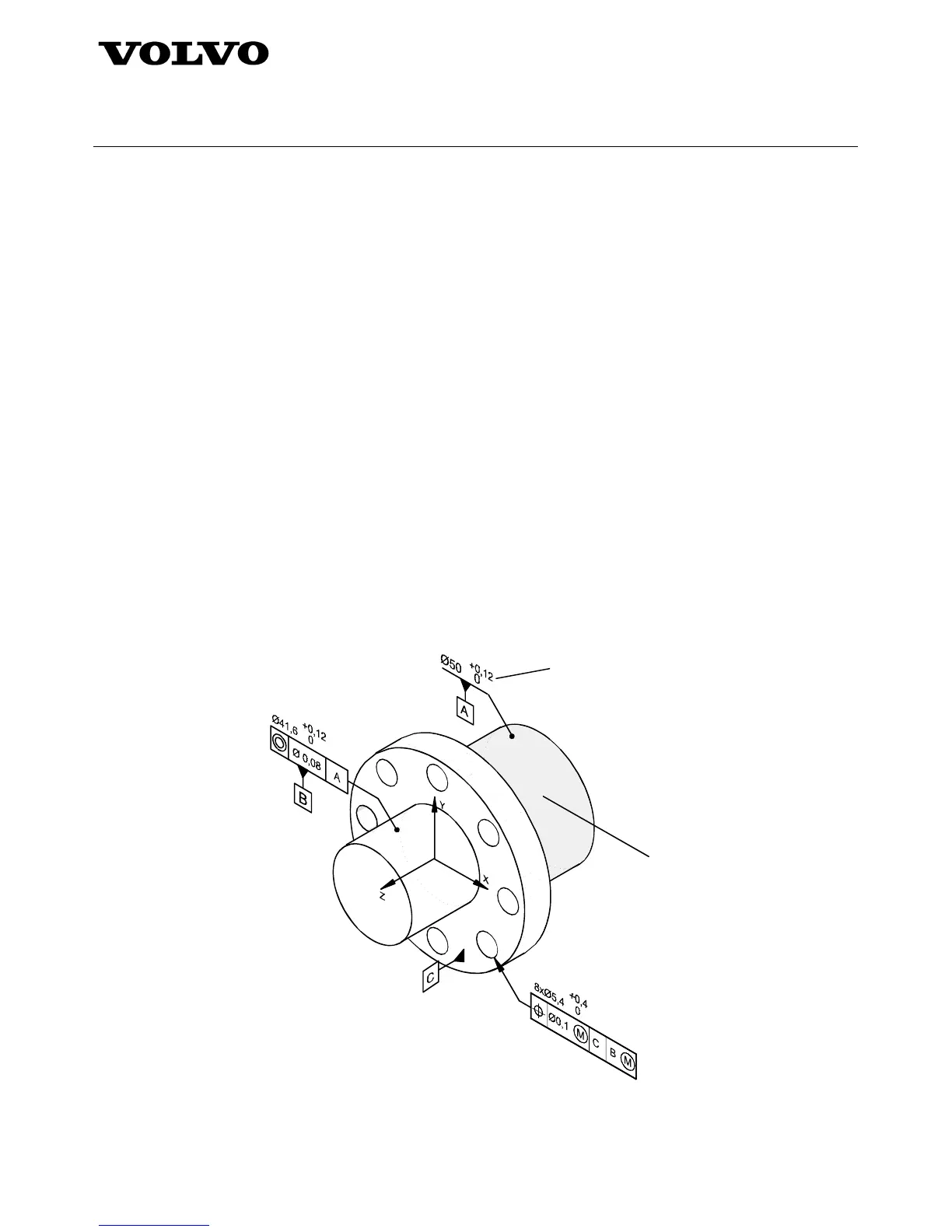

Query
Visual response
a) Size tolerance query
Figure 11 – Tolerance query associativity
