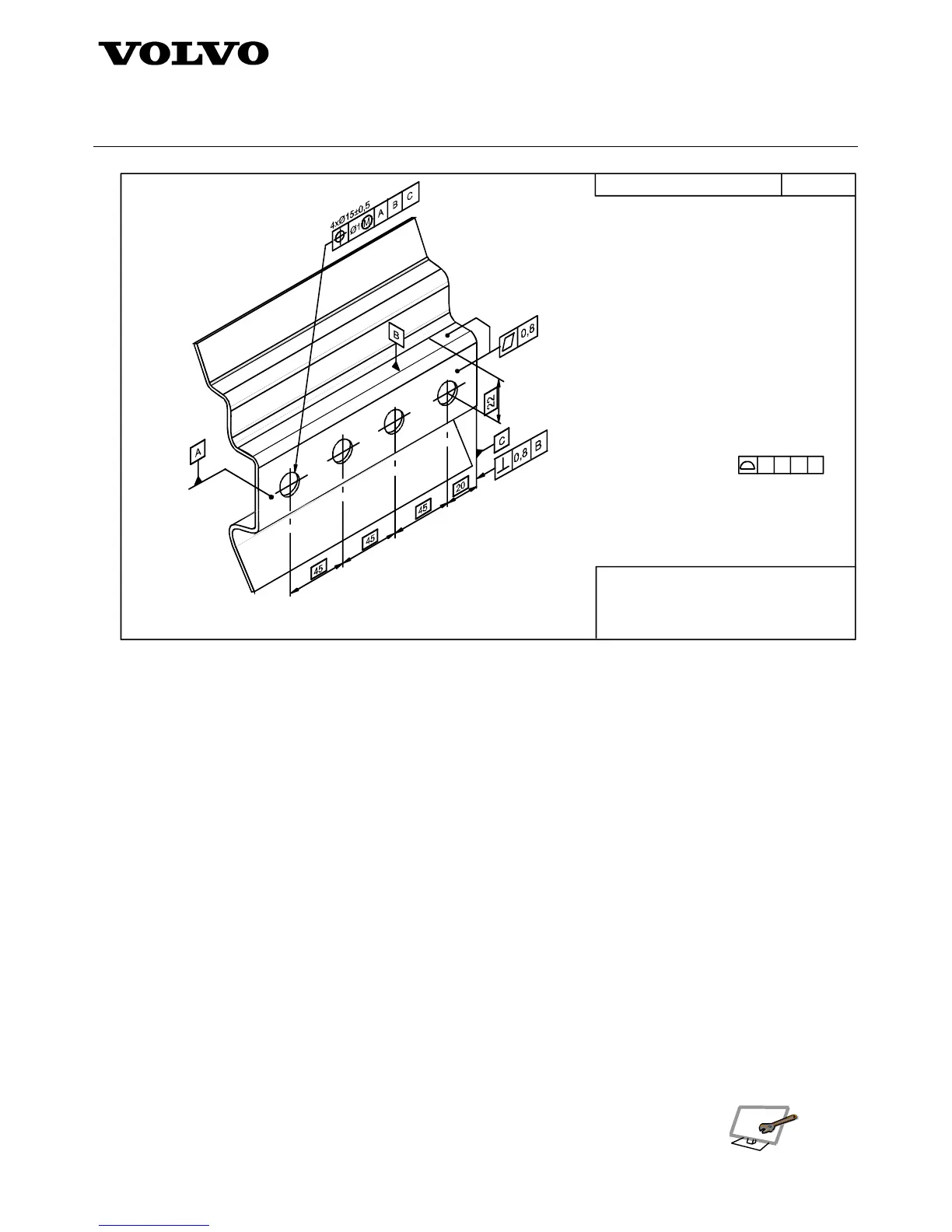

Figure 3 – Axonometric engineering drawing to be used along with the DSM
3.1 Reference on drawing
When a drawing shall be used in combination with a digital shape model (DSM) in order to provide a complete
definition of a part, the following text note shall be indicated in the text space of the drawing:
DIGITAL SHAPE MODEL
IS BASIS WHERE DIMENSIONS ARE OMITTED
STD 101-0001
In exceptional case, when the model number of the DSM is not linked to the part through the main document in
the PDM system, it may be included in the text note on the drawing in accordance with the following example:
DIGITAL SHAPE MODEL No: xxxxxxxx
IS BASIS WHERE DIMENSIONS ARE OMITTED
STD 101-0001
4 Model-only
4.1 General model requirements
The data set shall provide complete product definition. For example, a DSM, its annotation, and related
documentation.
4.1.1 Fundamental principles
The following are the fundamental requirements and other provisions applicable to annotated models.
• The ability to query the model shall be available.
