Standard
STD 101-0001
Volvo Group
Version
4
Page
36

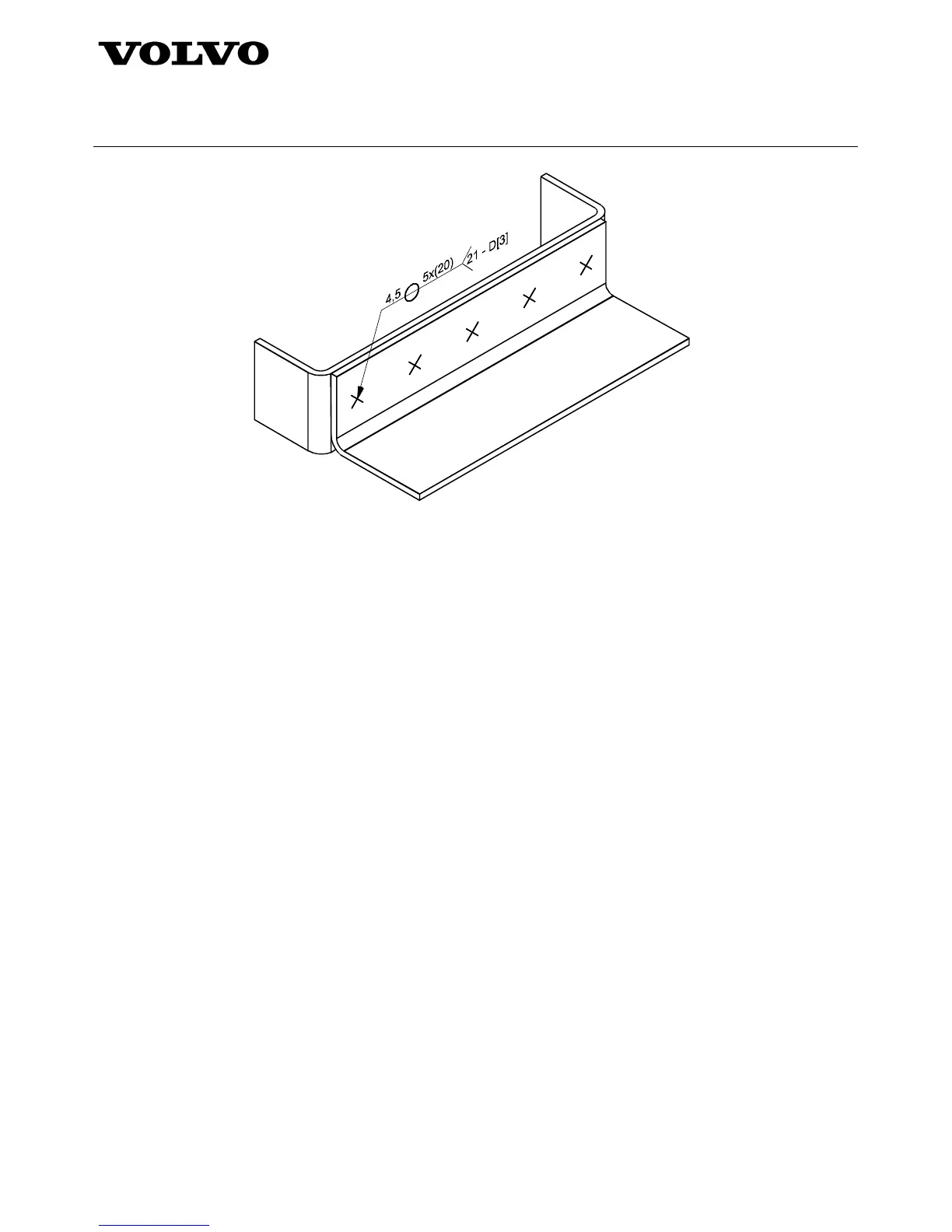

Figure 43 – Symbolic representation of
a spot weld using 3-D ann
otation
5
References to this standard on model
When a model, but no drawing is used, and the mode
l is created in accordan
ce with the rules given in this
standard, the following note shall be
specified in
the model-annotation plane for general notes:
DIGITAL PRODUCT-DEFINIT
ION DATA PRACTICES
STD 101-0001
35
Table of Contents
Terms and Definitions
2
Drawing and Digital Shape Model (DSM) in Combination
3
Reference on Drawing
5
Model-Only
5
General Model Requirements
5
Digital Shape Model (DSM) Requirements
10
Common Requirements for Product-Definition Data
11
General Notes and Local Notes
20
Model Values and Dimensions
21
Datum Applications
24
Geometrical Tolerances
30
Surface Texture
33
Other Applications of 3-D Annotation
35
References to this Standard on Model
36
