Standard STD 101-0001
Volvo Group
Version
4
Page
33

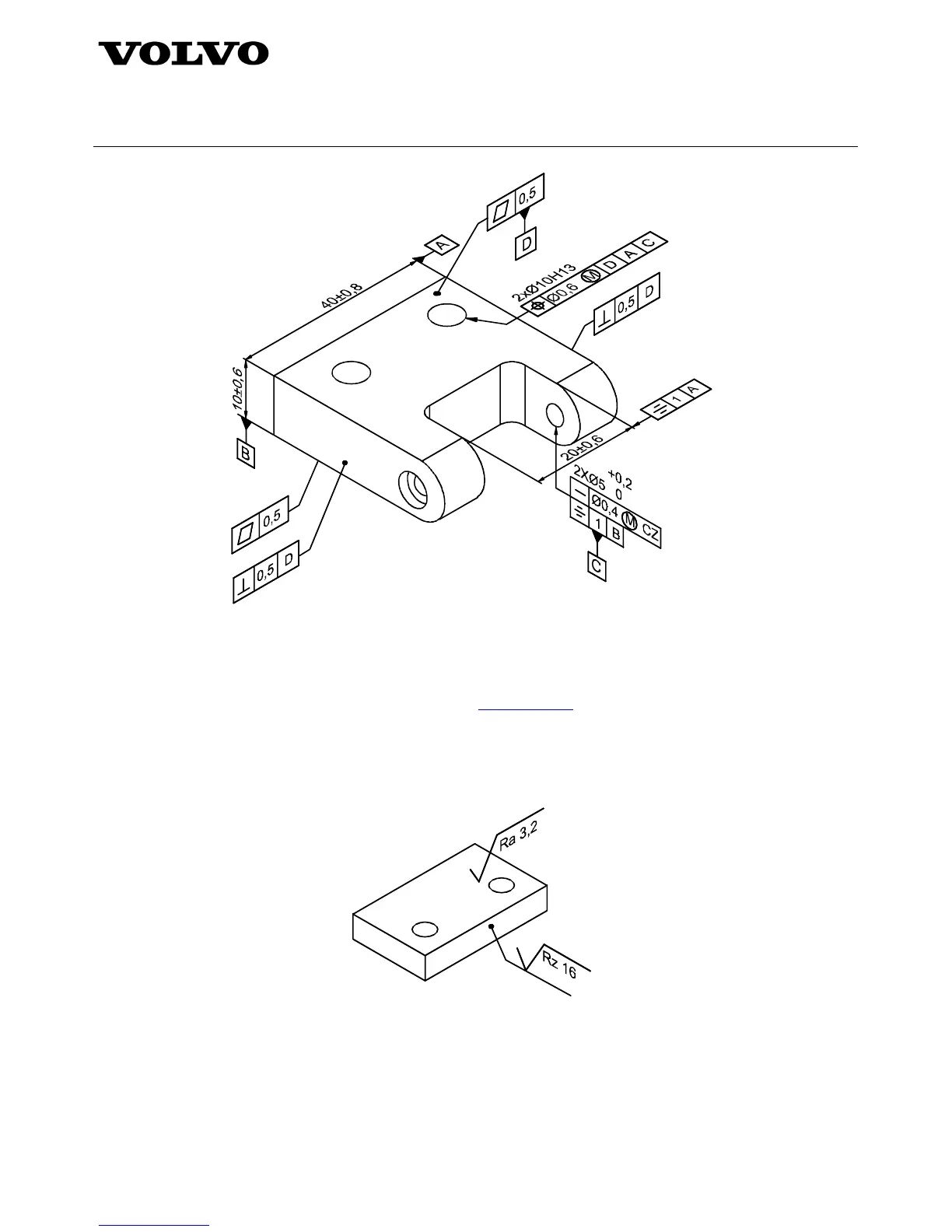

Figure 35
4.8 Surface texture
This section provides rules for connecting the graphical symbol for surface texture to 3-D model features
concerned. Some of the rules differ from the ones given in
STD 120-0004 which mainly are intended for the
specification of surface texture requirements on orthographic drawings.
The graphical symbol shall not be attached to single extension lines of model feature outlines.
The graphical symbol can be attached directly to the surface or to a reference line which have a leader line that
terminates with a dot on the surface. See figure 36.
Figure 36
The graphical symbol can be attached to a tolerance frame for geometrical tolerances, see figure 37.
