4.7.2 Examples of geometrical tolerance indications
The examples shown in figures 33, 34 and 35 are only examples of indications made in accordance with the rules
of this standard and they are not intended to illustrate the complete definition of the parts in question.
General note:
UNLESS OTHERWISE STATED:
1 A B

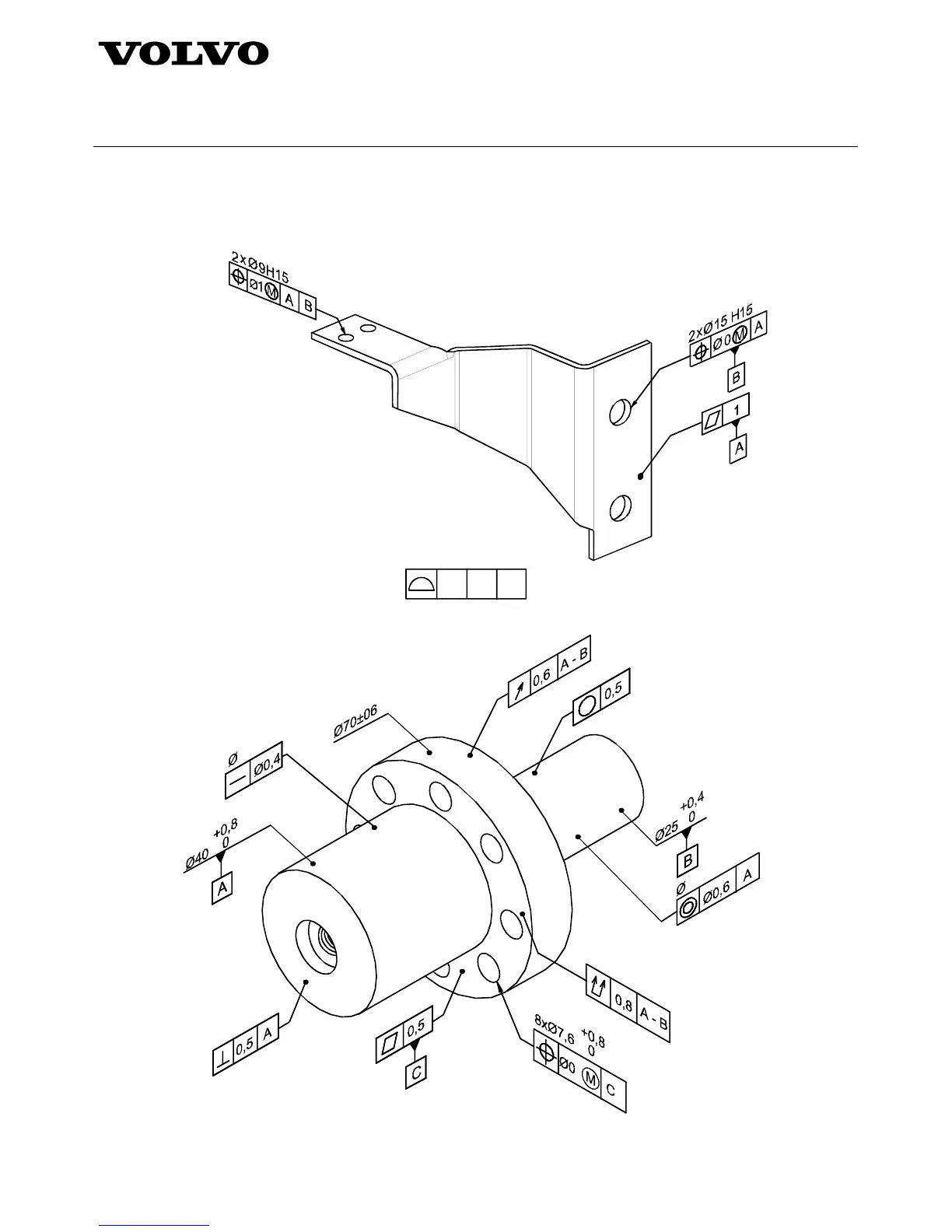

Figure 33
Figure 34
