a) Initial attitude of model geometry and annotation
b) Rotated about 90° about the Z axis

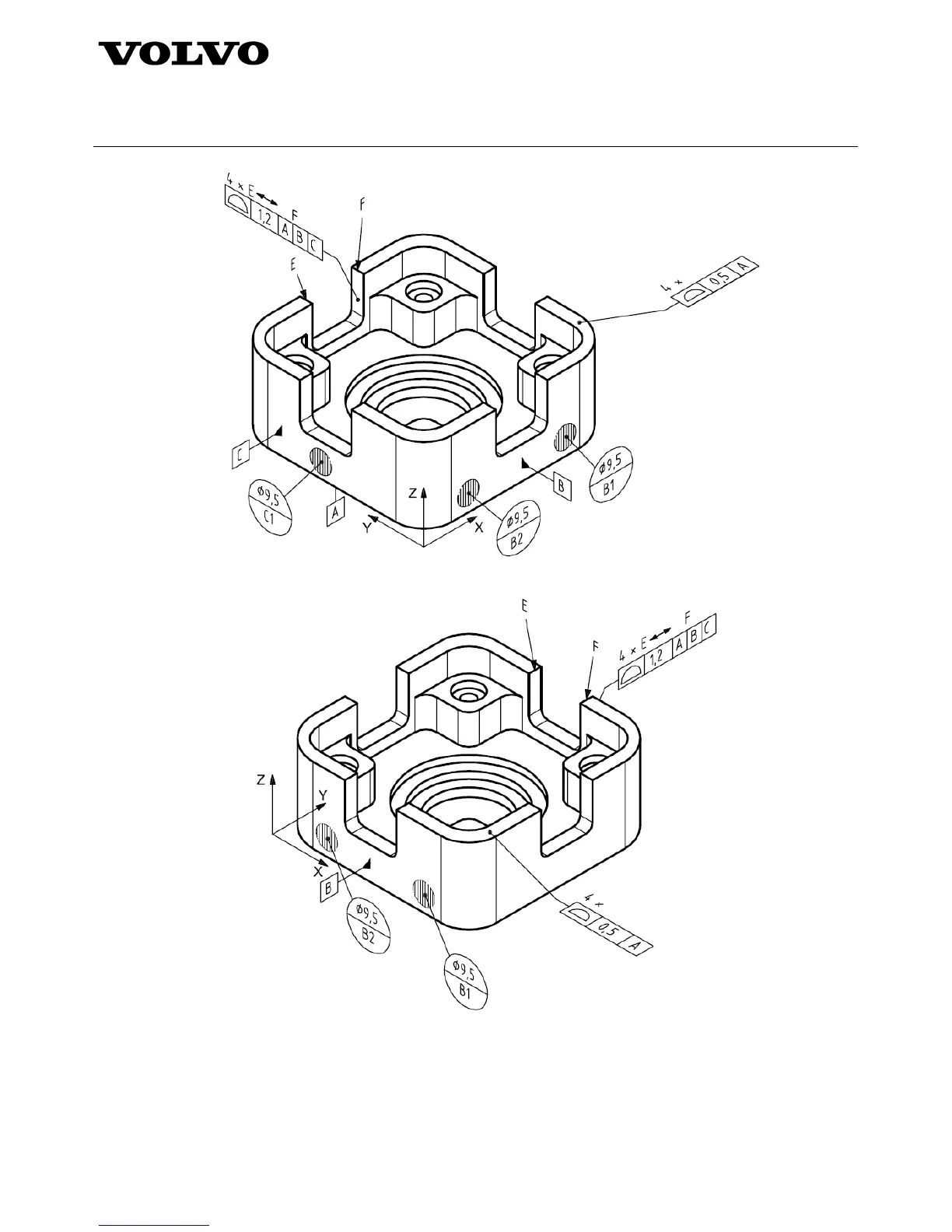

Figure 12 – Annotation planes relative to model geometry
