Standard STD 101-0001
Volvo Group
Version
4
Page
19
c) Model geometry and model features
• Model features shall be identifiable by selecting a geometric element of the model
feature.
• All geometric elements in an associated group of model features shall be
identifiable by selecting any geometric element within the group.
• All model features in a group of model features shall be identifiable by selecting
one of the model features
d) Tolerance indicators, datum indicators and datum target indicators
• Upon selection of a tolerance indicator, the datum indicators and datum target
indicators that correspond to the datum references shall be highlighted or
otherwise distinguished from other entities on the display, see figure 16.
Query
Visual response: All datum feature symbols and datum target symbols respond

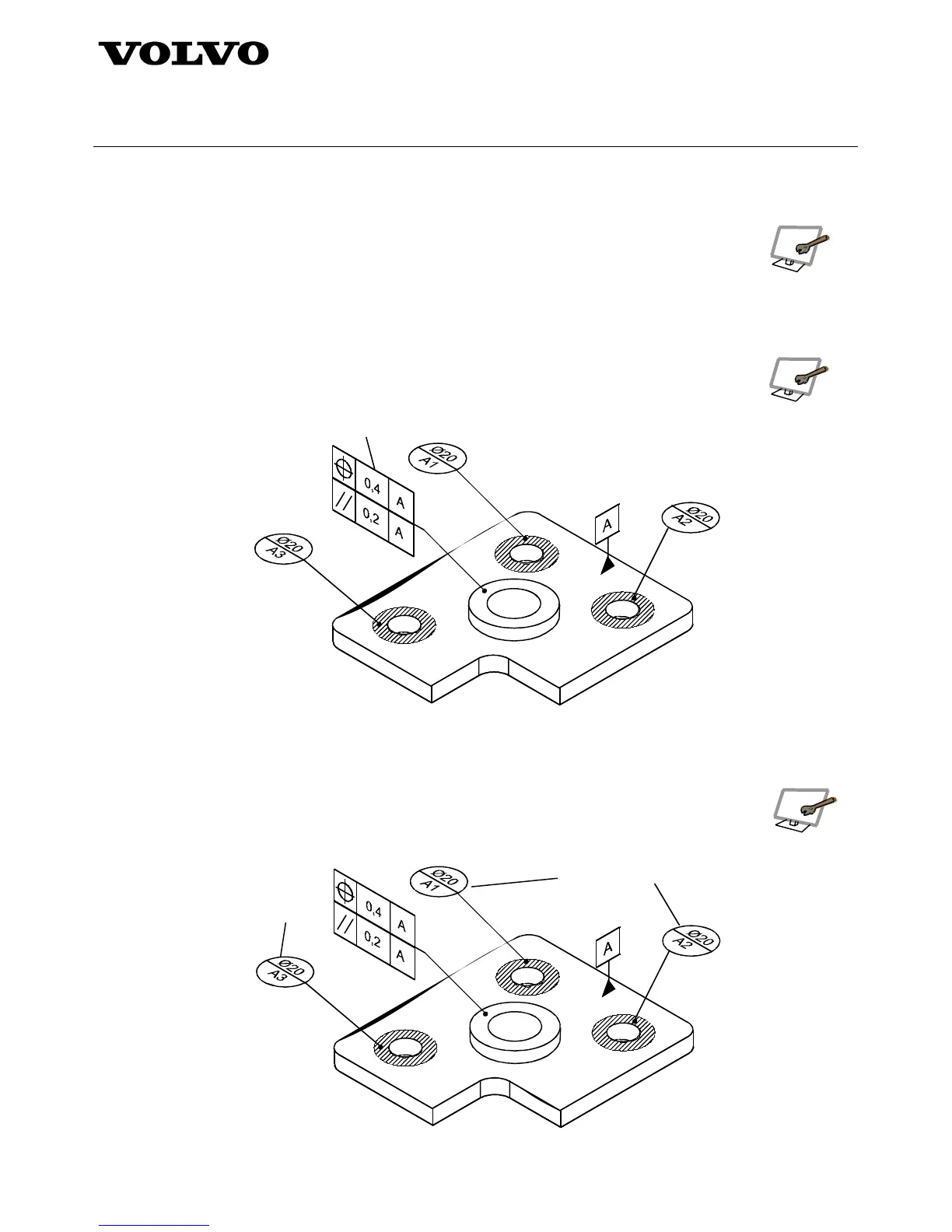

Figure 16 – Queries of datum feature symbols and datum target symbols
• Upon selection of a datum target indicator, all datum target indicators sharing the
same letter shall be highlighted or otherwise distinguished from other entities of the
display, see figure 17
Query
Visual response
Figure 17 – Queries for datum targets
