Packing Press 100 P2
Version: 111300001, M0004459B
Date: 13.12.2013 - 34 / 44 -
10.4.4 Tightening the strap

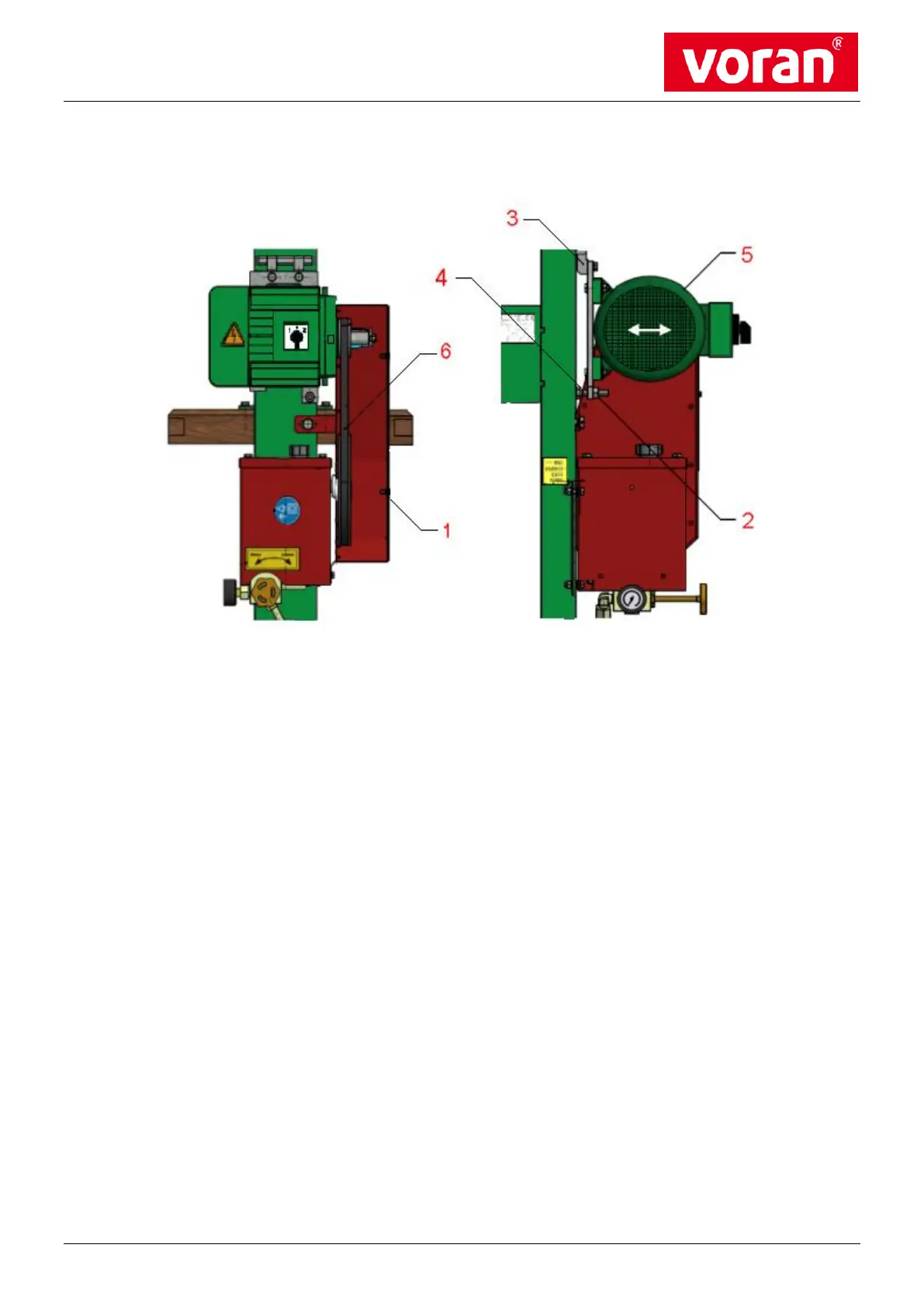

Fig. 10.4.4-1) Tightening the strap
1) Remove protecting shield (1)
2) Loosen locknut (2)
3) Readjust pivoting motor base (3) by means of tensioning screw (4)
Depending on which way you turn the tensioning screw, the motor (5) will be moved to either the left or the
right, thereby tensioning the belt (6)
4) Check belt tension
5) Where necessary, retension the belt - to do so, repeat step 3
6) Retighten locknut (2)
7) Mount protecting shield (1)
