voran 100 P2 - Spare Parts List - Distributor Head

Packing Press 100 P2
Version: 111300001, M0004459B
Date: 13.12.2013 - 39 / 44 -
11.2.3 Spare Parts List – distributor head

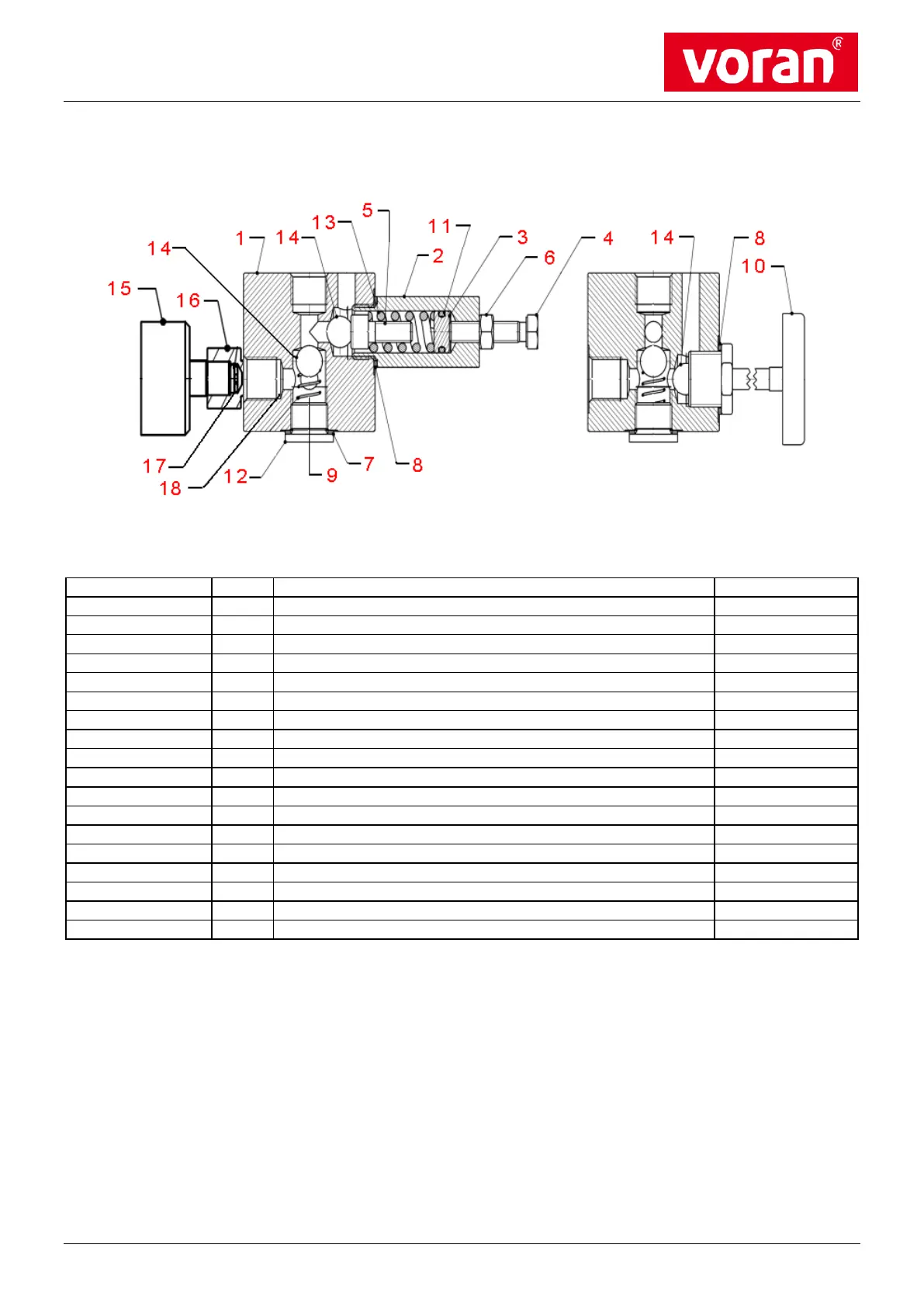

Fig. 11.2.3-1) Illustration [distributor head]
Position number
pieces
Designation
Customer EtNo.
1
1
distributor head
110062174
2
1
excess pressure valve
110062194
3
1
washer with notch
110062204
4
1
hexagonal bolt M8 x 35 - 8.8
300203500
5
1
cylinder bolt M8 x 20 - 8.8
302203200
6
1
Hexagon nut M8 - 8.8
320100800
7
1
copper ring17x22x1,5
571300200
8
2
copper ring 22x27x1,5
571300400
9
2
compressing spring 0,8/10,6/24,6/8,5
832100600
10
1
tap top part
800500100
11
1
O-ring
810800200
12
1
drainage stoppers VS 3/8" WD
580200300
13
1
compressing spring 3,5/15,6/30/6,5
832100700
14
3
Steel ball Ø12
880100100
15
1
manometer 600bar-380bar
542100100
16
1
adapter
110062214
17
1
manometer seal WIKA 1/4" Typ 97
571300700
18
1
copper ring 8x15x1,5
571300100
