Enraged Rabbit Cotton Tail
1x 48mm OD4.0mmxID3.0mm PTFE Tubing
2x ECAS Coupler (2 piece - remove rubber gasket)
4x M2x8mm or M2x10mm Self Tapping Screws
1x Omron D2F-5L or D2F-01L Micro Switch
1x Neopixel
1x 5.5mm Steel Ball Bearing
COUPLER BLOCKS
C

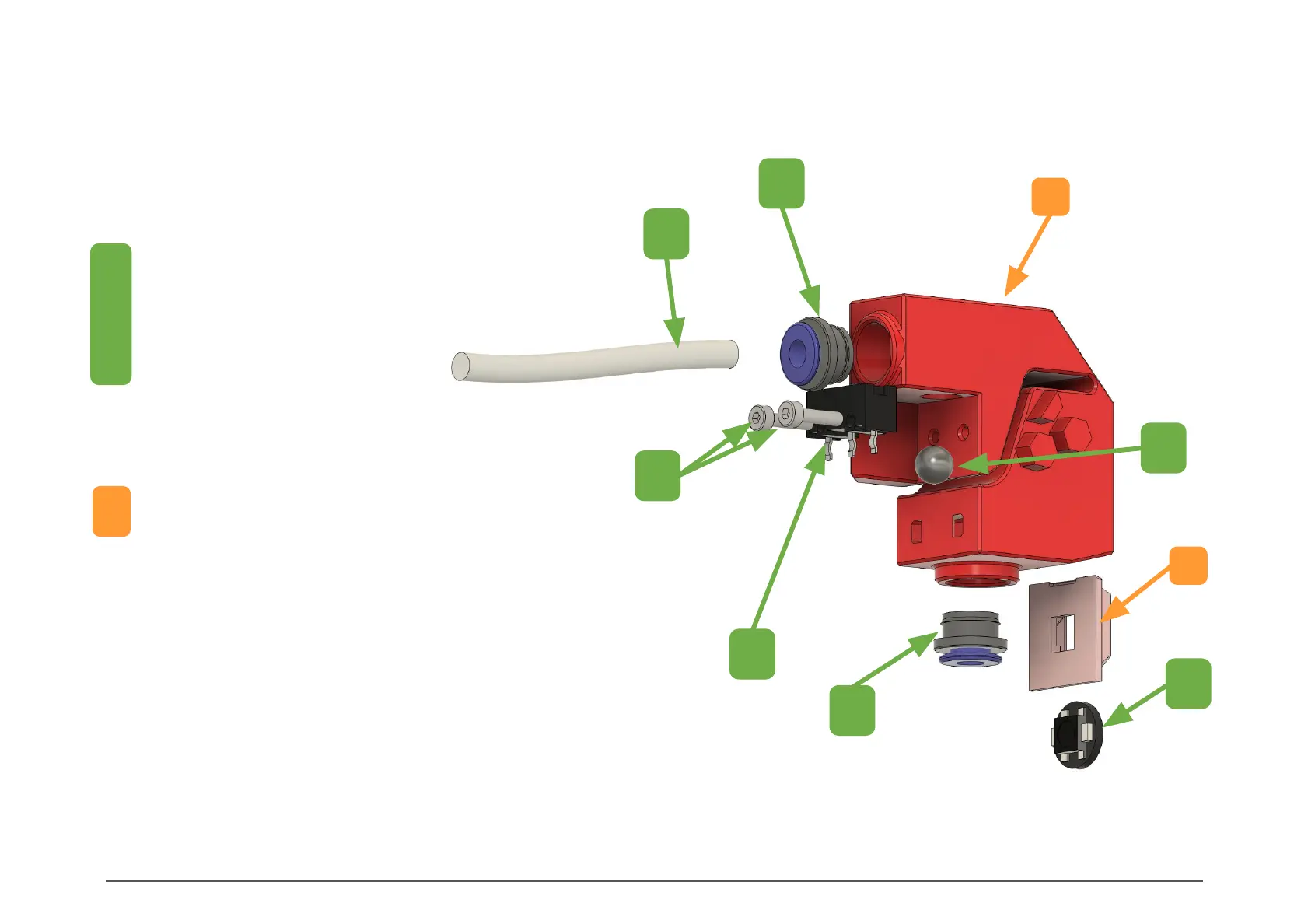

EXPLODED VIEW
A
B
C
D
E
F
COUPLER BLOCK BOM
(PER CHANNEL)
D
A
G
I
Coupler_Block_xN.stl
[a]_LED_Carrier_xN.stl
G
COUPLER BLOCK PRINTED PARTS
(PER CHANNEL)
B
B
E
F
I
Although the LED uses the entire Coupler_Block as a diffuser for the light,
it isn’t required to use translucent or clear filament to print it. Choose a
filament that allows it to be backlit or illuminated.
