VORON ERCF v2 - Page 132

WWW.VORONDESIGN.COM
Enraged Rabbit Cotton Tail
1x BTT MMB Controller Board
4x M3x5x4 Heat Insert (3 not pictured)
5x M3x8mm SCHS
ENDCAP ARM
B
C

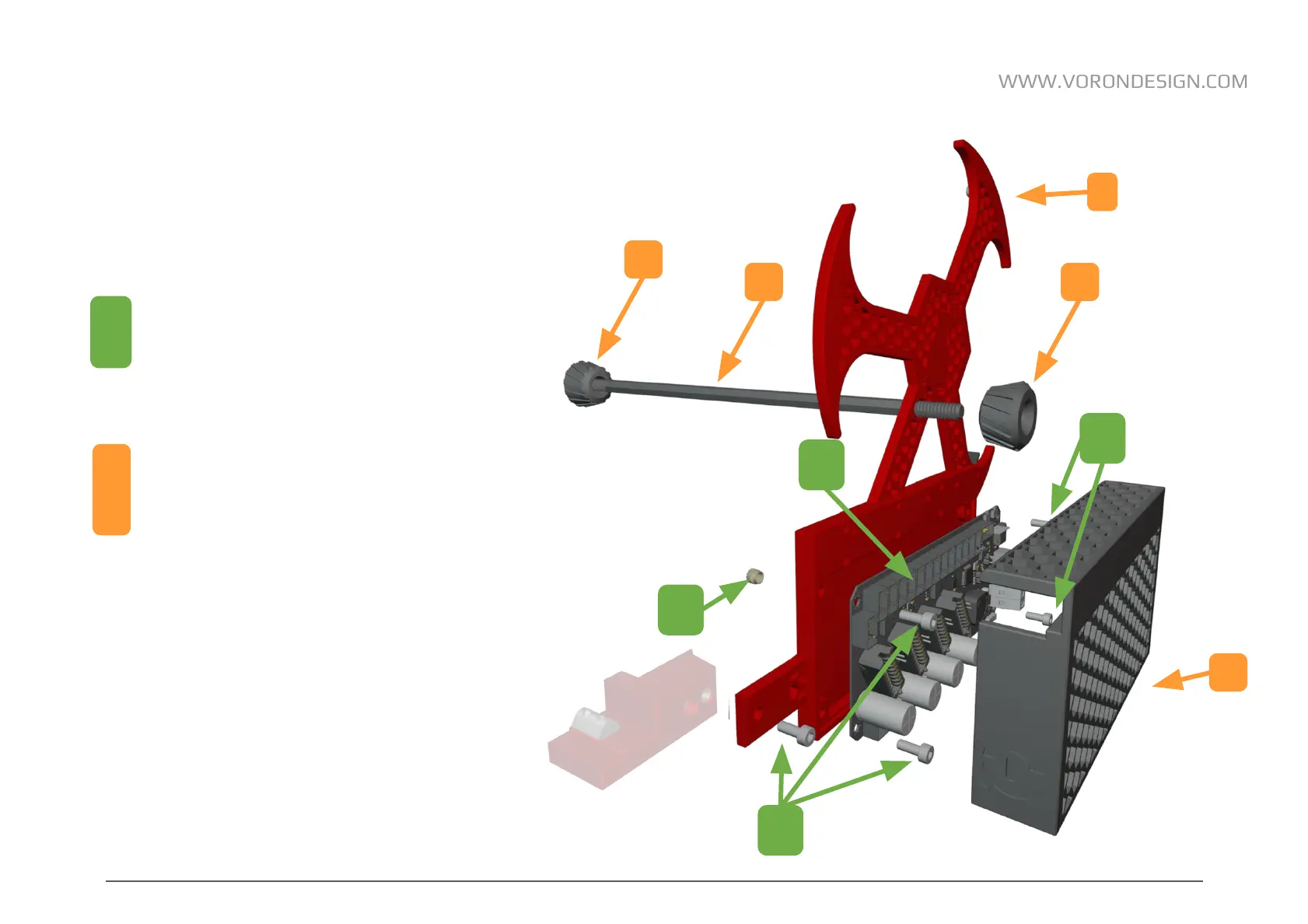

EXPLODED VIEW
A
B
C
END CAP ARM BOM
D
F
E
G
D
E
F
G
Axle_N_Double_Thread.stl
[a]_BTT_MMB_Support_Arm_Endcap.stl
Knut_x2.stl
[a]_BTT_MMB_Box_Lid.stl
END CAP ARM PRINTED PARTS
