CAD version: ERCF V2
133133
ARM GROUPS PREPARATION
M3 Heat Set Inserts
Support_Arm
Support_Arm_Mount

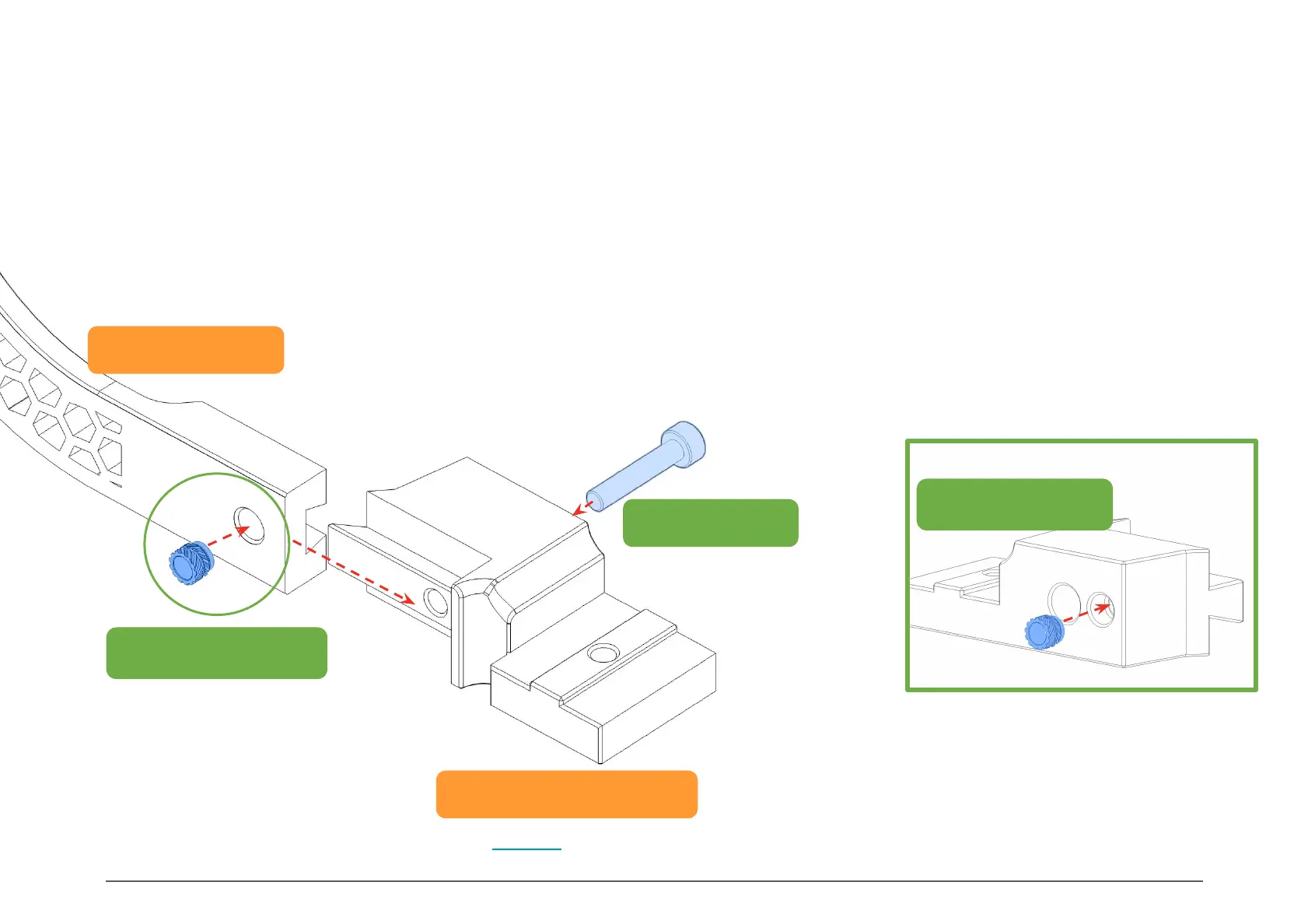

ASSEMBLY (PER ARM GROUP)
Start by adding the heat insert into each of the Support_Arms, Be careful not to go to far into the arm to
obstruct the dovetail receiver on the other side. The heat set can sit slightly proud on the insertion side, to
be cautious.
Slide the Support_Arm_Mount into the Support_Arm and insert a single M3x16mm screw to secure it.
Repeat this step with all the Support_Arms and Support_Arm_Mounts.
M3 x 16mm SHCS
ARM AND MOUNT
M3 Heat Set Inserts
Set aside one of the
Support_Arm_Mounts for the end,
and insert a single Heat Set into the
second hole. This will be used to hold
the Support_Arm_Endcap.
HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
