CAD version: ERCF V2
134134
ARM GROUPS PREPARATION
MR608ZZ Bearing
Knut
Axle_N_Double_Thread

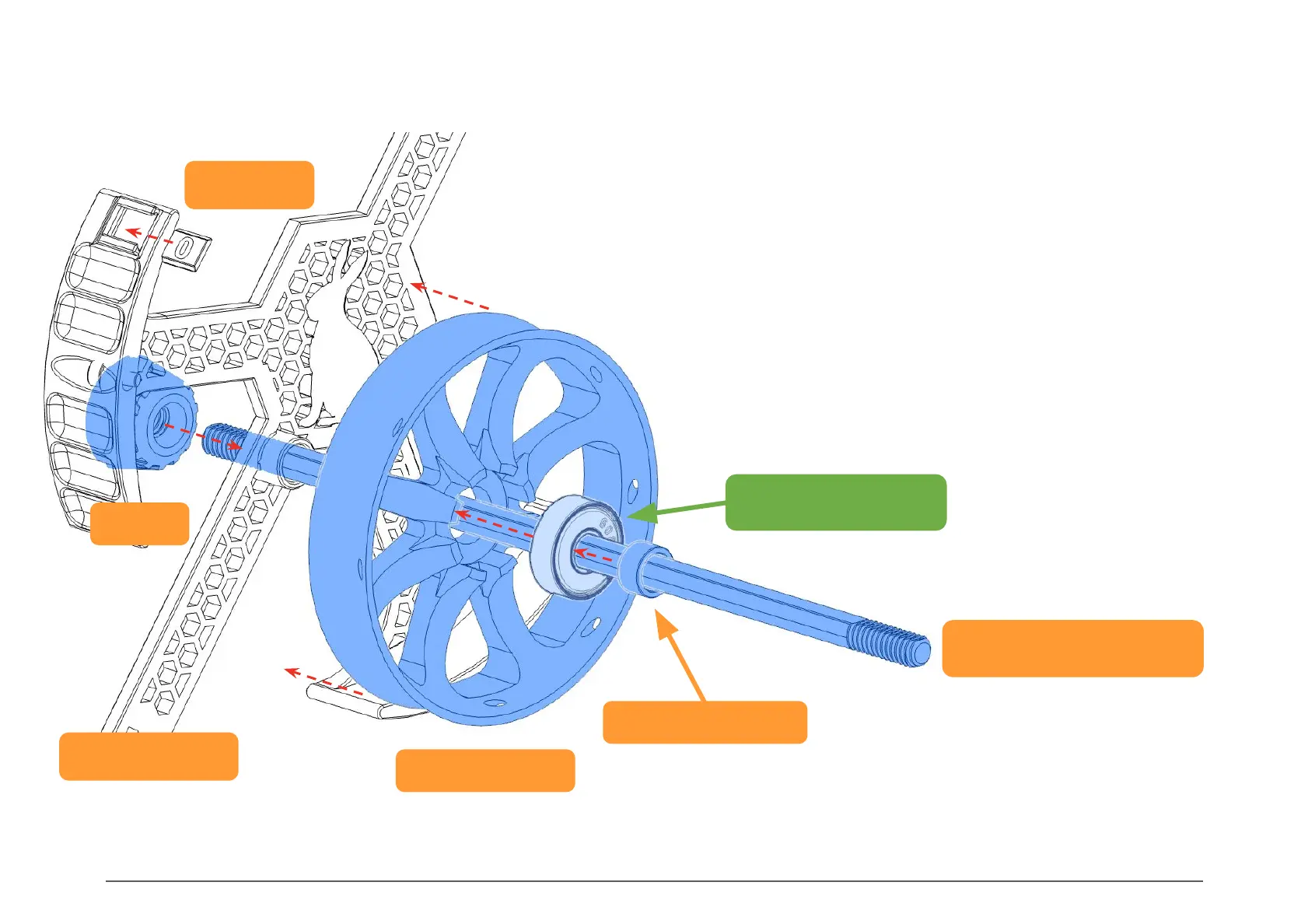

ASSEMBLY (PER ARM GROUP)
Add a Knut to the Axle_N_Double_Thread (pre thread a few
turns to loosen it up from fresh print), and slide into the
Support_Arm.
Preload MR608ZZ Bearing to Buffer_Wheel, and press firmly to
seat on bottom (two thumbs on flat table). Slide the wheel (with
flat side towards the Support_Arm) onto
Axle_N_Double_Thread .
Add Axle_Spacer to the Axle and Tag_Plate to Support_Arm
Buffer_Wheel
Axle_Spacer
Support_Arm
AXLE AND WHEEL
Tag_Plate
To Next Page
