ARM GROUPS PREPARATION
ASSEMBLY (PER ARM GROUP)

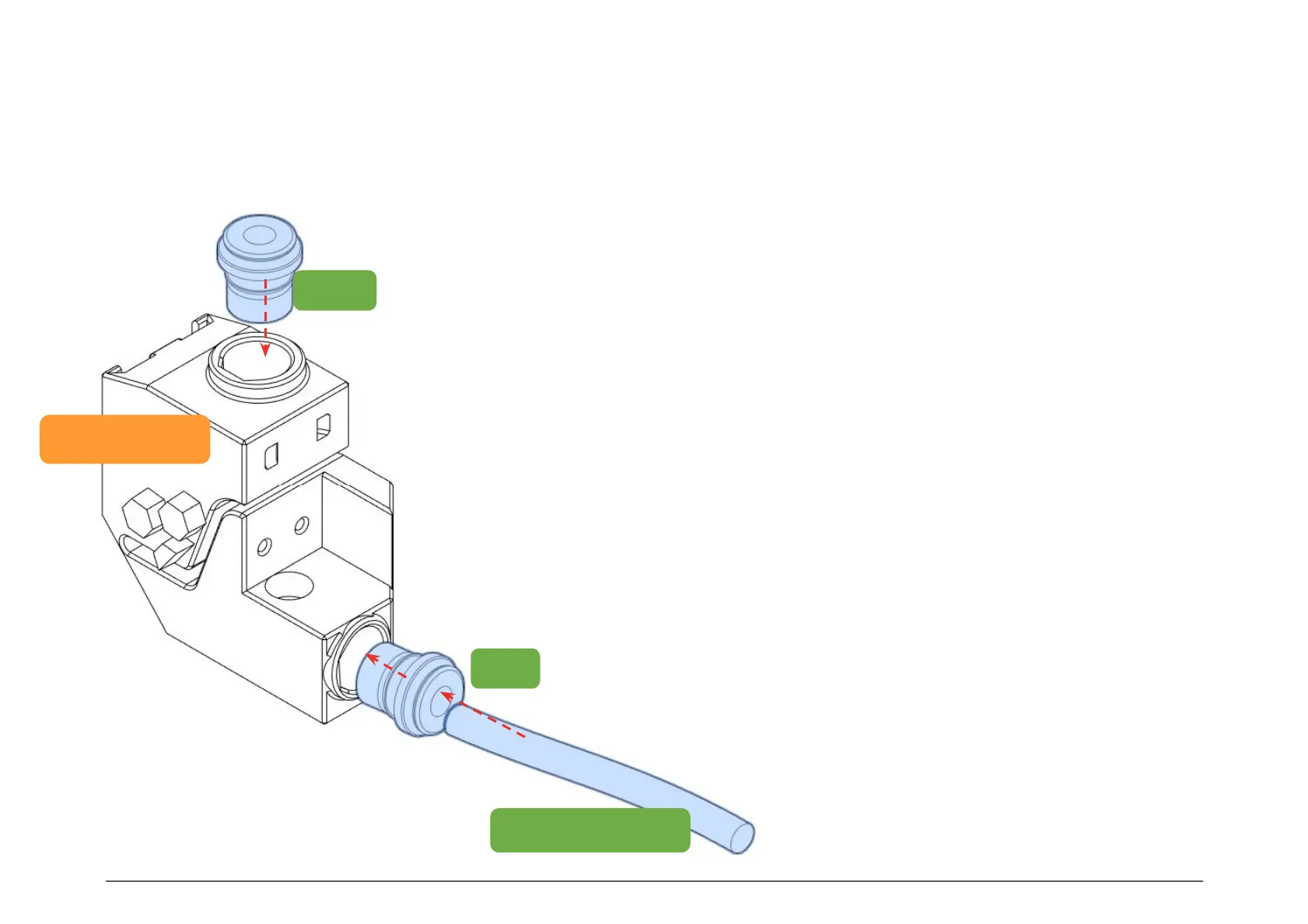

Start your assembly by inserting the ECAS collet into the
two positions of the Coupler_Block. Use a flat surface to
press in, or use a ratchet bar clamp to apply even pressure.
Use the cutting jig to cut 48.5mm of 4mm OD/3mm ID
PTFE Tube. Insert into the sprung ECAS coupler. Make sure
it’s seated all the way in and the natural curve of the tube
is curling downwards.
Repeat for all Coupler_Blocks.
4 OD/3 ID PTFE Tube
Coupler_Block
COUPLER BLOCK
ECAS
ECAS
