WIRING THE GEAR MOTOR WIRE
Double-check. You’re supposed to skip this page if you’re using a local MCU (“buddy board” like EASY BRD or BTT MMB). You
wouldn’t want to cut your wires too short!

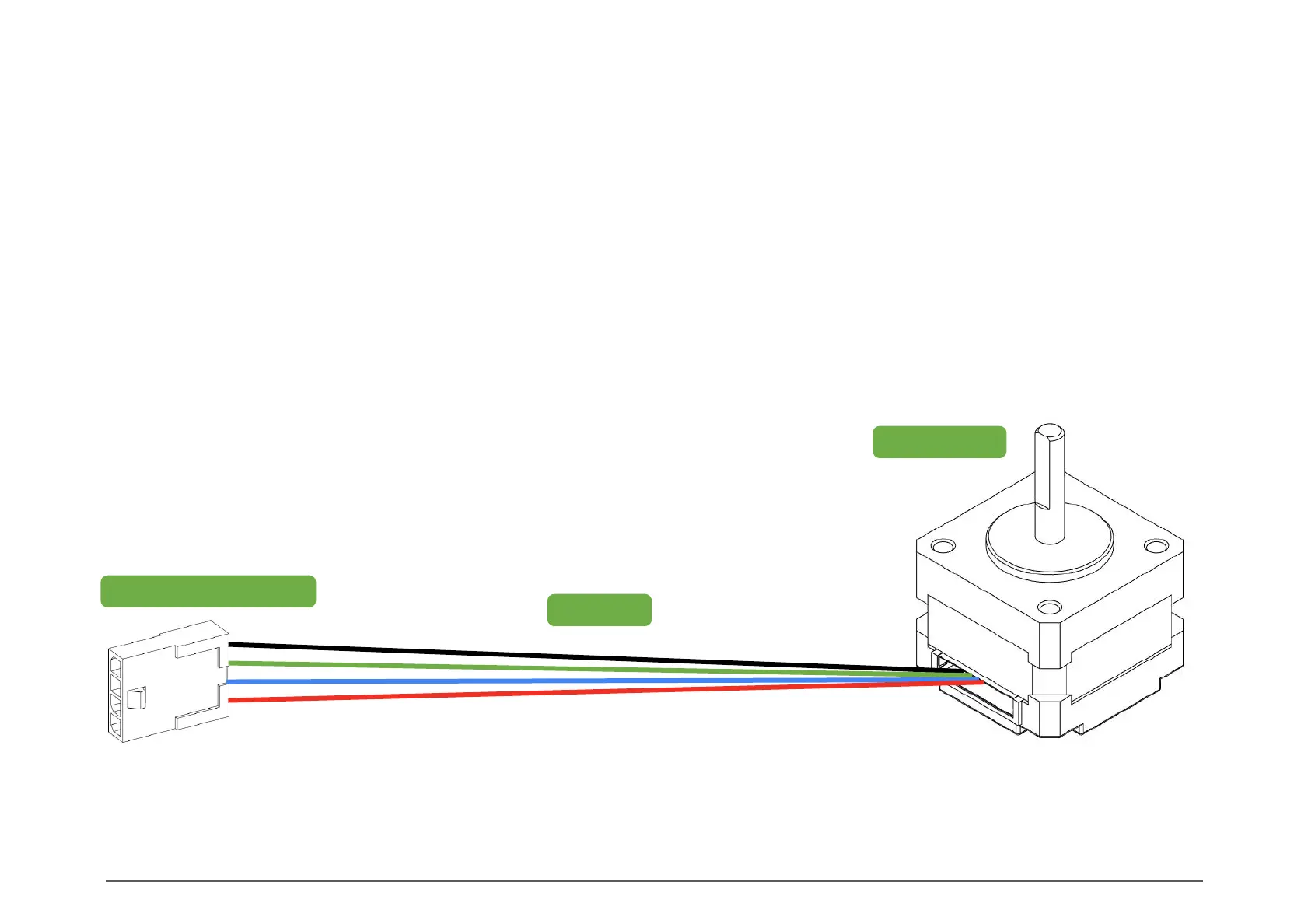

Trim your Gear Motor wires to 85mm, then crimp and add the 4-pin Molex Microfit connector. That’s it!
1919
WIRING (REMOTE MCU)
Molex Microfit 3 – 4 pins
GEAR MOTOR WIRE
Gear Motor
85mm
