VORON ERCF v2 - Local MCU Wiring

WWW.VORONDESIGN.COM
CAD version: ERCF V2
WIRING THE MOTORS
Now it’s time for the local MCU wiring section! You can skip to the next page if you’re not using a local MCU (like BTT MMB).
Trim your Selector Motor wires to 200mm, then crimp and add the 4-pin Molex Microfit connector.
Trim your Gear Motor wires to 500mm, then crimp and add the 4-pin Molex Microfit connector.
2121
WIRING (LOCAL MCU)

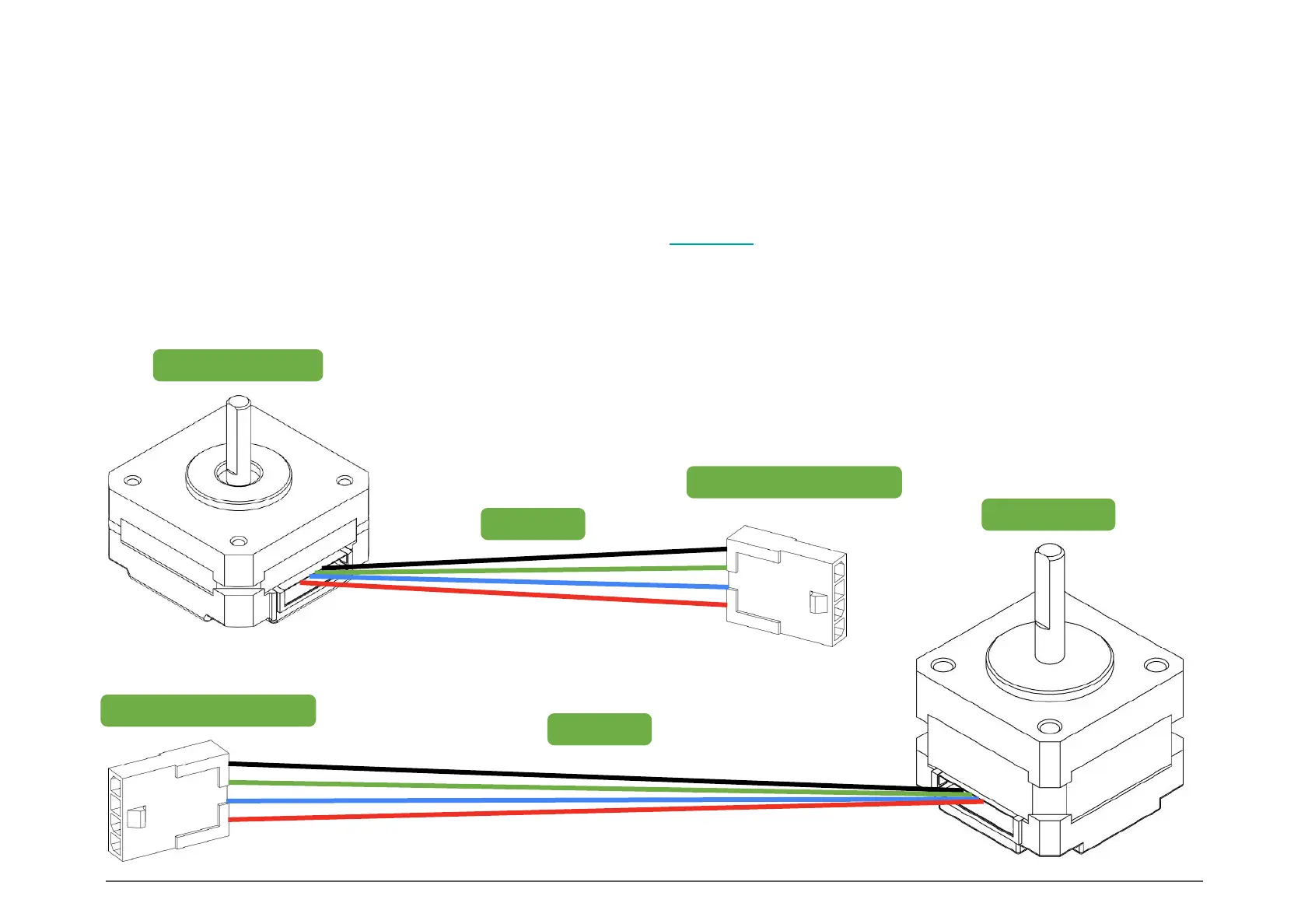

Molex Microfit 3 – 4 pins
GEAR MOTOR WIRE
Gear Motor
500mm
Molex Microfit 3 – 4 pins
Selector Motor
200mm
(Not to scale)
